Good Quality Waste Brick, Construction Waste Plate Feeder for Fuel

Product Description

Product overview

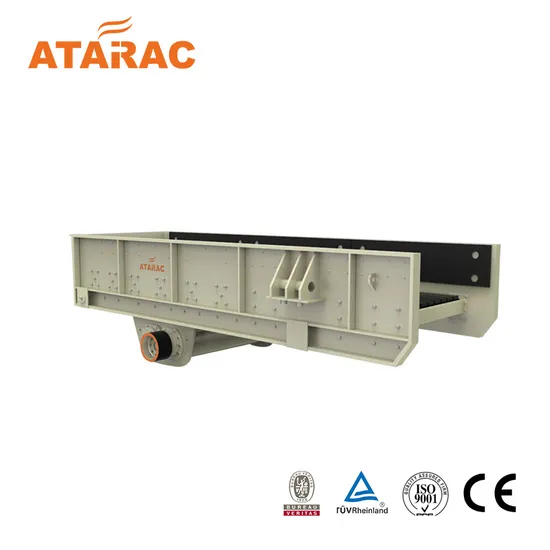

Heavy plate feeder is a continuous transport machine widely used in mining, metallurgy, building materials, ports, coal and chemical industry and mining enterprises. It is one of the most important and indispensable equipment in ore and raw material treatment and continuous production process. It is mainly used for supplying and transporting large and corrosive bulk materials continuously and uniformly from storage bin or transfer funnel to crusher, batching device or transport equipment.
Product characteristics
1. Heavy plate feeder is used for continuous and uniform feeding from silo to primary crusher. It can also be used for short-distance transportation of materials with larger particle size and specific gravity.
2. It can be installed horizontally or inclined with a maximum inclination of 12 degrees.
3. The machine structure is simple, the strength and rigidity are good, the manufacture and installation are convenient, the support legs of the machine frame are directly landed on the ground, the craft layout is flexible, and the civil construction is simplified.
4. The head sprocket adopts the structure of tooth palm block, which prolongs the service life and can be interchanged. It is easy to assemble and disassemble, and easy to maintain.
5. The traction chain of running parts can ensure the improvement of manufacturing quality and service life in the aspects of design, material selection and manufacturing technology.
Technical parameter

Model	Belt width (mm)	Central distance (mm)	Belt speed (m/s)	Form of conveying
BZ1040	1000	4000	0.02-0.2	Left,right
BZ1240	1250	4000	0.02-0.2	Left,right
BZ1650	1600	5000	0.02-0.2	Left,right
BZ2060	2000	6000	0.02-0.2	Left,right,both
BZ2580	2500	8000	0.02-0.2	Left,right,both
BZ3180	3150	8000	0.05-0.16	Left,right,both
