80W/100W/150W/200W Glass CO2 Laser Tube Rd6445 Laser Cutting Engraving Carving Machine 1325 6090 1390 1530 for Non-Metal Acrylic Wood Plastic PVC Fiberglass

Product Description

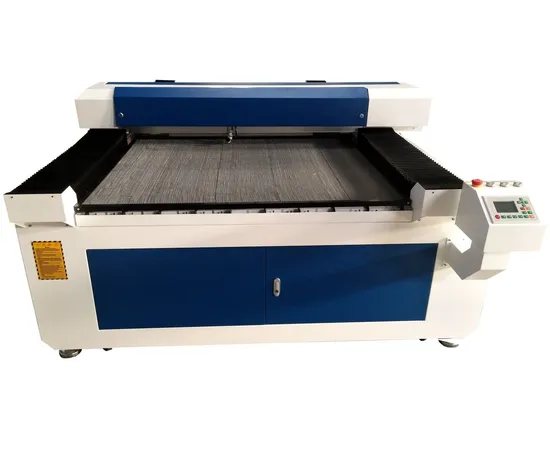

150W Glass CO2 Laser Tube Fast Speed Laser Cutting Engraving Carving Machine R-1325 for Non-metal Acrylic Wood Plastic PVC Fiberglass
Product Parameters
Technical parameters:
Notes: The working area and laser power can produce according customers requirments.

Model	R-6090	R-1290	R-1410	R-1610	R-1320	R-1325	R-1630
Engraving Area (mm)W*L	900*600	1200*900	1400*1000	1600*1000	1300*2000	1300*2500	1600*3000
Laser tube power	60W 80W 100W 120W 130W 150W
Laser Type	CO2 sealed laser tube
Engraving Speed	0-64000mm/min
Cutting Speed	0-36000mm/min
Resetting positioning accuracy	≤±0.01mm
Laser Output	1-100%software setting
Cooling mode	Circulating-water-cooling and protection system
Machine control and drive	Speedy DSP controlling, stepper motor
Cutting Platform	knife-strip platform
Min. shaping character	Character2.0mm×2.0mm,English1.0mm×1.0mm
Power Supply	AC220V 50HZ
Operating system	DSP off-line control system
Dictate format	*.plt,*.dst,*.dxf,*.bmp,*.dwg,*.al,*las etc.
Operating Temperature	5°C-40°C
Operating Humidity	5-95%(Free of Condensed Water)
Compatible Software	CorelDraw ,AutoCAD transmit directly
Optional Spare Parts	Rotary system, Industrial Chiller, Infrared Locating System, Laser Tube, Up-down clump
Recommended Spare Parts	Laser Tube
Quotation	FOB QINGDAO CHINA
PS: if you have any requirements about our machine , please feel free to contact with me !

Our Advantages
1. Machine laser Spot is stable cavity structure, good uniform spot pattern, high efficiency
2. Large working size 1300mmx2500mm that can cut any size material no problem
3. American lens and mirror make sure higher precision and long time use
4. Stability: we use TAIWAN PMI square rail and Japan ONK 3M belts, and the quality of the glass tube is controllable
5. Factory direct sales, more favorable
6. Heavy investment, the product is equipped with the United States with fast cutting speed
7. Machine working low noise:scientific mechanical structure reduces machine noise
8. Machine strong frame so that can load more than 800KG product no any problem
9. Two motors for Y axis and One motor for X axis make sure working more smooth without ripple
10. Low cost of operation and maintenance
11. Easy operation:multi-functions like random engraving sequence, processing level, and flexible adjustment output for laser power, speed and focal length partly or completely at one time.
12.Iron cast wholly frame, floor-type linear guide transmission.
13.High power water cooling brushless motor, more forceful cutting capability, wear well.
14.High speed driver and stepper motor could enhance the machine easy maintenance.
15.Well designed dust and water proof device ensure the machine easy maintenance.
16.Advanced in CNC industry ,break-point memory pointes for 10 pcs, reducing material waster.
17.Self-researched high-efficiency laser power supply
7.High compatibility, applicable for CNC software:type3,Artcam,Castmate,Pore,Weitai,variable CAD/CAM etc. It is easily to process relief sculpture, shadow carving, three dimension characters in fancy style etc.
18.High intention, high precision mechanic structure design, the data control is stable.
Application
Wood products, paper, leather, cloth, plexiglass, epoxy resin, acrylic, wool, plastic, rubber, ceramic tile, marble, crystal, jade, bamboo products and other non-metallic materials and other non-metallic materials.

--- Clothing, embroidery, cloth toys, home decoration, handbags, gloves, leather, leather cutting and surface carving in the toy industry.
--- Precision cutting of non-metallic sheets such as crafts, models, advertisements, decoration, electrical appliances, acrylic sheets and medium density decorative sheets in plastic industry.
--- Woodworking business like MDF cutting,hard wood deep engraving, 3D engraving, 2D cutting etc

Machine Packing List
(01) User manual of machine(English version)
(02) User manual of software(English)
(03) USB cable (04) Communication cable
(05) Air exhaust fan (06) Air pump
(07) 3 reflecting mirrors (has been installed in the machine)
(08) One focus lens(has been installed in the machine )
(09) One laser tube(has been installed in the machine)
(10) Water chiller
Detailed Photos
1. RDCAM 6445 control panel with multi 2. Laser cutting machine have two kinds working 3.Another is aluminum blade working table that
languages for your option like English/Spanish Table for option. One is honeycomb table that Suitable for large pieces material cutting like
/Russia etc.Also there have wifi function for Suitable for small pieces cutting engraving Acrylic,wood,plywood,plastic etc, with our
your option just need a very little cost Unique design firm and not easily loosened.
4. High quality laser head can put lens with 5.Clean inside control box with YAKO driver 6.HYT 80-150W power supply with stable output
focus point 50.8/63.5/100 etc. Precision vertical alignment+control board+file and Power,automatic detection function,and mostly
Machining,not easily damaged/compact and power supply horizontal arrangement voltage stablilizing function
convenient,easy to operate,most important
working table.

Samples
Company Profile
FAQ
1.What's the guarantee, in case the machine breaks down?
The machine has one year s guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to clients feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.

2.How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.

3.How long is the delivery time?
For standard machines, it would be 7-10 days; For nonstandard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.

4.How's the payment?
Telegraphic Transfer(T/T),L/C or according to your requirement

5.Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.

6.How is the packing?
The mini laser engraving machine for glass should be use Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package with Steel Belt
Save space as much as possible for container loading

For more informations ,please feel free to contact me!
Looking for agents all over the world!
