BHD1206C/3 Steel Structure Fabrication H Beam High- Speed CNC Drilling Machine,CNC Beam Drilling Machine for Metal Construction Works

Product Description

Product Description:

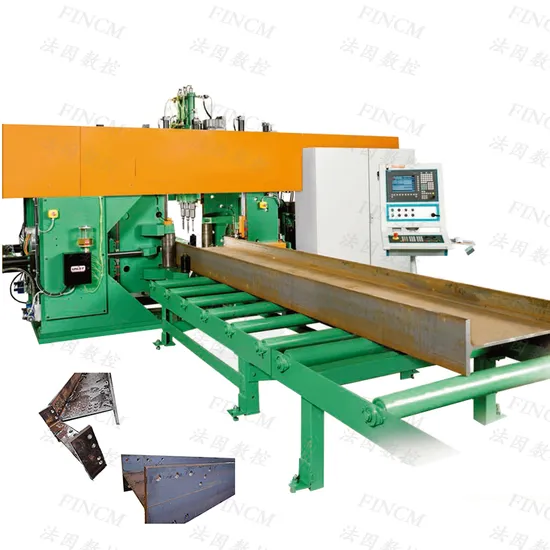

BHD1206C/3 CNC high speed drilling machine for H-beams.
Applicable Industry:
Can be widely used in building, bridges and other industries.
Main Technical Specifications:

H beam	section height H	150~1250mm
	flange width B	75~600mm
U beam	section height H	150~1250mm
	flange width B	75~300mm
drillig power head	Max. width of work piece	80mm
	Number	3
	Max. drilling diameter	hard alloyφ30mm/high speed steelφ40mm
	spindle taper hole	BT40
	spindle motor power	3×11KW
	spindle speed(variable speed)	0~2000r/min 4,CNC axis:
CNC axis	Number	7
	power of feeding axis servo motor located on fixed side, movable side and middle side	3×2KW
	power of positioning axis servo motor located on fixed side, movable side and middle side	3×1.5KW
	speed of 3 positioning CNC axes	0~10m/min
	speed of 3 feeding CNC axes	0~5m/min
	inspecting travel of web width	1100mm
	inspecting travel of web height	290mm
	centralized automatic lubrication	1 set
conveying cart	power of conveying cart servo motor	5 KW
	Max. conveying speed	20m/min
	Max. conveying weight	10t
,spray cooling system	nozzle number	3
	pressure of compressed air	0.5Mpa
	cooling model	internal cooling + external cooling
	machine appearance size(L×W×H)	about 6.0×2.1×3.4m
	machine weight	about 8000Kg

Working temperature: 0ºC~40ºC
power:3 phase 4 wire; voltage:380±10%V ; frequency:50HZ
List of the Key Outsourced Components:

NO.	Name	Band	Country
1	Principal Axis	Kenturn	Taiwan(China)
2	Linear rolling guide pair	HIWIN/CSK	Taiwan(China)
3	Hydraulic pump	Justmark	Taiwan(China)
4	Electromagnetic hydraulic valve	ATOS	Italy / Japan
5	Servo motor	Siemens / MITSUBISHI	Germany / Japan
6	Servo driver	Siemens / MITSUBISHI	Germany / Japan
7	Programmable controller	Siemens / MITSUBISHI	Germany / Japan
8	Computer	Lenovo	China

Note: The above is our fixed supplier. If the supplier can not supply the components in case of any special matter, we will adopt the components with the same level, but the quality is no worse than the above.
Product Feature:

The cnc machines BHD1206C/3 is mainly composed of main body, CNC slipway, drilling spindle box, tool changer, clamping device, measuring device, electric system, hydraulic system, cooling system, chip box, etc..
Three slipways are all controlled by servo motor, guided by precision linear roller guide and driven by AC servo motor and ball screw to ensure the positioning accuracy. The spindles are precision spindles with high rotary accuracy and high rigidity, and driven by servo motor, with broad scope of application, rotation speed can be stepless changed in a wide range to meet the needs of a variety of speeds.
The vertical drilling machine is equipped with three inline type tool changers, and every tool changer can load 4 tools. While drilling, the tools can be changed automatically to meet the needs of different drilling diameters. The machine is equipped with flange width detection and web height detection device, which can effectively compensate for the deformation of the workpiece to ensure the processing accuracy.
