Customized Autoclave Sterilization System with Lab Sterile Drying

Product Description

Autoclave Sterilization Machine/Water Bath Autoclave Sterilization Process/
Lab Sterile Drying Machine
Brief Introduction:

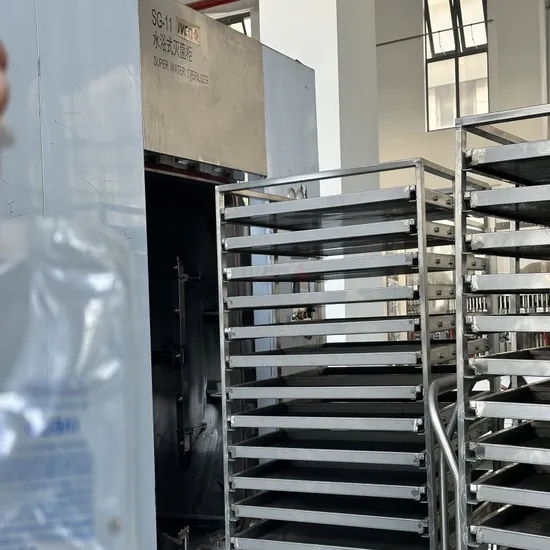

Water bath sterilizer uses high temperature circulating water as sterilization medium, and carry out water-pouring sterilizing operation to LVP PP bottles. With anti-pressure protection device, it can be applied widely to high-and-low temperature sterilizing operation on liquid in glass bottles, ampoule bottles, plastic bottles, plastic bags etc. in pharmaceutical industry. It is also suitable for food industry to sterilize all kinds of sealed package, drinks, cans etc.
Main Features1.Heat efficiency, good temperature uniformity, wide temperature range
2.Sterilizing medium runs in a closing circulating system, which prevents second pollution during operating.Technical Parametersdesign pressure : 0.245 Mpa
2.design temperature : 139 centigrade
3.working pressure : 0-0.22Mpa
4.working temperature : 60-134 centigrade
5.heat uniformity : ≤±1ºC
6. energy supply

Item	steam	Deionized water	Cooling water	Compressed air	Power supply AC380V 50HZ
energy pressure	0.4-0.8MPa	0.2-0.3MPa	0.2-0.3MPa	0.6-0.8MPa
pipe diameter	DN100	DN50	DN100	DN50	30-100KW

Company Profile
Turnkey Project for IV Solution Plant from A to Z
• Project Design
• Pharmaceutical Water Treatment
• Solution Preparation
• IV Solution Production Line
• Sterilization
• Inspections Packing
• Clean Room & HVAC
• Stability Chamber
• Laboratory Instruments
• Utilities
• Documentation & Qualification
• Installation, Commissioning, Training
• Service
