3000mm*6000mm CNC H Beam Box Beam End Face Milling Machine
| US$15,000.00-35,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
DX 3060
Type
Worktable Milling Machine
Structure
Bed type
Milling Cutter Type
Angle Milling Cutter
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE
Condition
New
Model
Dx 3060 CNC End Face Milling Machine
Milling Range
3000*6000mm
Speed Mode
Variable Frequency Stepless Speed Regulation
Milling Head Spindle Speed
50-500rpm
Milling Angle
0~45 Degree
End Milling Cutter Diameter
200-400mm
Vertical Lifting Moto
2.2 Kw 1400 Rpm
Milling Cutter Head Diameter
160-315mm
Oil Pump Motor Power
4 Kw
Structure Shape
Bed Type
Milling for
H Beam Box Beam Pipe Milling Machine
Control Mode
CNC
Horizontal Feed Motor Power
7.5kw
Horizontal Movement of Milling Head
80mm
Voltage
380V 50Hz
Transport Package
Standard Packing
Trademark
Lemar
Origin
Jiangsu, China
HS Code
8459699000
Production Capacity
10 PCS/Month
Product Description
3000mm*6000mm CNC H beam Box beam End face milling machine H beam Box beam CNC End face milling machine can mill the plane of the workpiece, chamfer the trapezoidal surface and T-slot, the drilling can reach φ50mm, and the boring can reach φ400mm.After the support slide is installed, the two ends of the super-long workpiece can be milled, manually drilled, bored and processed with special-shaped surfaces.
The milling force is strong and can meet the processing requirements of the parts.
Optional size:
800*1000mm End face milling machine
1200*1200mm End face milling machine
1500*1500mm End face milling machine
1500*2000mm End face milling machine
1500*3000mm End face milling machine
2000*2500mm End face milling machine
2000*4000mm End face milling machine
3000*6000mm End face milling machine

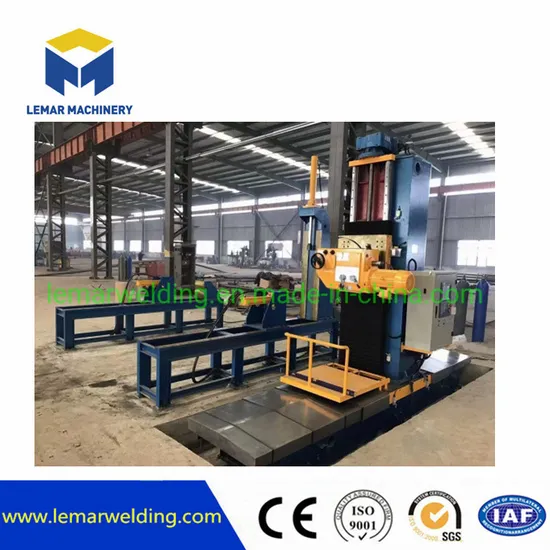

The face milling machine consists of a bed, a sliding table, a column, a lifting table, a milling head, a horizontal feed mechanism, a lifting mechanism, and an electrical control system. Face milling generally needs to be equipped with a hydraulic table to position and clamp the workpiece. The hydraulic workbench consists of two workbenches, two positioning seats, two pressing seats and a hydraulic station. End Face milling machine is used for milling both ends of welded or rolled H-beam or BOX-beam. It has the advantages of convenient operation, simple structure and quick adjustment. It is one of the necessary equipment for professional manufacturers of welded steel.
Technical Details:
| Model | DX0810 | DX1212 | DX1215 | DX1530 | DX2020 | DX2025 | DX2040 | DX3060 | |
| Machining range of face(mm) | 800×1000 | 1200×1200 | 1200×1500 | 1500×3000 | 2000×2000 | 2000×2500 | 2000×4000 | 3000×6000 | |
| Horizontal the milling speed(mm/min) | 50-440 | 50-500 | |||||||
| Vertical milling speed(mm/min) | 22-550 | 22-600 | 22-600 | 22-600 | 22-600 | 22-600 | 22-600 | 22-600 | |
| Horizontal motor (kw) | 3 | 4 | 4 | 4 | 4 | 4 | 4 | 7.5 | |
| Vertical motor (kw) | 1.5 | 2.2 | |||||||
| Milling angle(°) | 0-45 | ||||||||
| Milling Head Specifications | TX25A | TX32A | TX40A | TX50A | |||||
| Milling head power (kw) | 4 | 5.5 | 7.5 | 11 | |||||
| Cutter rotational speed(rpm) | 125-1420 | 125-1440 | 1440 | 1460 | |||||
| Applicable cutter diameter(mm) | 100~160 | 125~250 | 160~320 | 200~400 | |||||
| Gross Weight (t) | 4 | 5.5 | 5.8 | 7.6 | 8.3 | 8.5 | |||
