Complete Different Sizes Feed Plant Animal Feed Pelletizing Plant From China

Product Description

Complete different sizes feed plant animal feed pelletizing plant from China
Definition of poultry feed feed livestock feed
Poultry and livestock feed is generally refers to the food for poultry and livestock , it is the ordinary feed in the feed classification.
Main introduction of high quality feed pellet mill 1. moderate grinding fineness(screen hole diameter 2-5mm),
2. moderate curing and conditioning requirements (pellet mill equip with two layers conditioners)
3. SZLH420 (pellet mill machine) poultry & livestock feed plant capacity 10tph,
4. finished products with pellet diameter (pellet diameter is around 2.5-6mm).
5. This plant includes one hammer mill of crushing process, one batching & mixing process, one pellet machine for pelletizing processing and one feed bagging machine of packing process.
6. It is equipped with steam boiler.
7. The whole line of the 10TPH SZLH420 poultry & livestock feed plant is compact in design, reasonable in structure, meeting the requirement of environmental protection, and can be customized according to the requirements of customers.
Animal feed pellet production processing line main processes as following:
Crushing proecss-----Mixing process-----Pelletizing process----Cooling Process-----Packing Process
Here is the flow chart of this plant, it can be also customized according to the customers' requiements.
Raw Materials for Feed Pelletizing
The feed pellets are usually made of corn, brown rice, paddy, sorghum and soybean meal etc.
Material Cleaning Sieving and Accepting Process
By receiving materials, our plant use granule cleaner and flour cleaner to clean the dust and other debris, then magnetic cylinder clean the irons and metal in the materials. After cleaned, materials be sent to next process.
Raw Material Grinding Process
General-purpose products, stable performance, widely used in large andmedium-sized feed, food processing enterprises of raw materials crushed.
The machine uses direct drive, scientific and reasonable hammer arrangement, hammer sieve clearance, finished fineness uniform. Crushing chamber second strike technology. Selection of imported high-quality bearings, low operating temperature.
A variety of screen size optional, quick open door mechanical and elastic pressure screen mechanism, for screen fast, easy operation and maintenance.

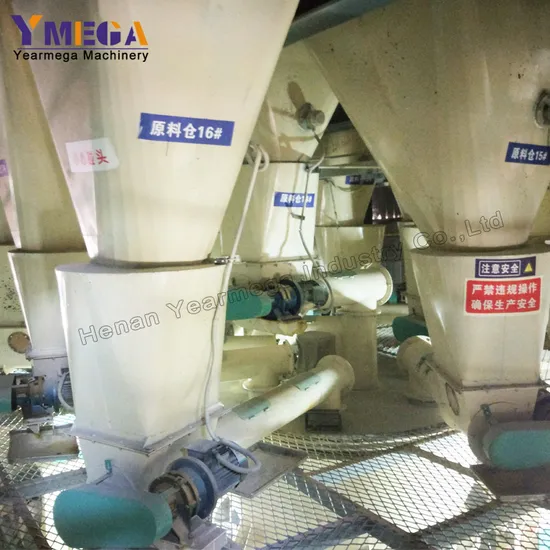

Feed Material Auto Batching and Mixing Process
Dosing/Batching designs formulations according to the nutritional needs of different animals, using specific device to accurately weigh the various ingredients. Mixing is an operation in which various feed ingredients are metered and blended under external forces to form a uniform distribution. This process adopts two batching scale and a number of batching bins, of which the micro ingredients are manually added equipped with check weigher. After batching of material ingredients is completed, then enter into the mixer for mixing, and finally the material is output through the conveyor and elevator.
Feed Pelletizing Process
Designed from the CPM models, Europe and the United States box.
The main drive uses high precision gear drive, the output is about 20% higher than the belt drive type.
Selection of imported high-quality bearings, oil seals, to ensure that the machine running efficient, stable, low noise.
Feeder made of stainless steel, by using frequency control motor to ensure that the quality of particles discharged.
Single Conditioner or double conditioners can be choosed, made of stainless steel, to precook raw materials before pelletizing.
The international advanced level of compensation type serpentine spring coupling, with a new structure, compact, safe, low noise, low fault performance.
Ring mold lifting device, gear box gear oil automatic cooling system.
Feed Pellet Cooling and Crumbling Process
Feed Pellet Cooling process
The latest octagonal cooling box design, no cooling dead ends. The use of closed feeder feed, into the air area, cooling effect is significant.
Discharging material evenly and evenly stacked in the cabin.
The use of slide valve reciprocating discharge mechanism, the movement is smooth, reliable, with small residues.
Low energy consumption, easy operation.
After cooling the finished product temperature is not higher than room temperature+3 ºC ~ 5 ºC, suitable for the cooling of granular materials.
Feed Pellet Crumbling Process
Diameter of feed pellet can be customized by the different die mould hole, but length can be also adjusted by the feed pellet crumbler machine. Roller type feed pellet crumbler is the ideal equipment for feed pellet crushing. Double-roller feed pellet crumbler is suitable for crushing feed pellet, such as chicken feed, duck feed and goose feed etc.
Feed Pellet Screening and Grading Process
Combination of the circle, oval, straight three kinds of movement, screening effect is good. Screen ship drive with belt drive, emphasis on balance, low noise.
Screen tail support for the improved elastic support, vibration, low noise. Strengthen the base to ensure a more balanced operation of the equipment.
Feed Pellet Packing Process
High-precision weighing indicator, import PLC,high-precision analog load cell composed of weighing control system.
Applicable to materials with poor mobility. In the weighing mechanism, the hopper on the system with a suction port, can effectively control the spill of equipment dust to ensure that the dust concentration in the working environment, and can make the scale of the body pressure to maintain balance with the outside world, to avoid the air flow weighing accuracy influences.
Packing accuracy: 0.1% Packing range:5-50kg / bag
Automatic PLC Control System
With the automatic PLC control system, the animal feed processing line is with high efficiency and convenient operation.
1.Full automation of the complete production line
2.Constant product quality at a high throughput rate
3.Lower manpower requirements, less time cost
4.Better monitoring of the production process
Other process like conveying, elevating, material feeding, water and liquid adding machine
Our Services
1. We will give detailed introduction of the Highly-rated poultry feed livestock feed animal feed machine from China according to the client capacity requirement.
2. Share any information about the Highly-rated poultry feed livestock feed animal feed machine from China that the clients need, like detaield pictures, video,etc
3. Design full animal feed processing line for client.
4. Provide formulation as reference and help the clients to make suitable feed formulation.
5. Give detailed instruction manual and video to the customers.
