Wide Varieties 0.66~5.1X Zoom Stereo Microscope for Embryos Microscopy
| US$360.00-853.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SZ810 B2L
Number of Cylinder
Binoculars
Mobility
Desktop
Stereoscopic Effect
Stereoscopic Effect
Kind of Light Source
Ordinary Light
Shape
Cylindrical Shaped Lens
Usage
Teaching, Research, Industry
Principle
Optics
Principle of Optics
Differential Interference Contrast Microscope
Magnification Range
3.3X-204X
Zoom Ratio
1:8.1
Actual Field of Image Space
24mm
Working Distance
110mm
Stereo Angle
12°
Viewing Angle
35°
Interpupillary Distance Adjustment
50-75mm
Eyepiece
Wf10X24mm
Objective
0.5X/2X
Light Source
3W
Transport Package
Cartons
Specification
480X370X470(mm)
Trademark
Optec
Origin
Chongqing
HS Code
9011100000
Production Capacity
5000PCS/Year
Packaging & Delivery
Package Size
48.00cm * 38.00cm * 48.00cm
Package Gross Weight
7.000kg
Product Description

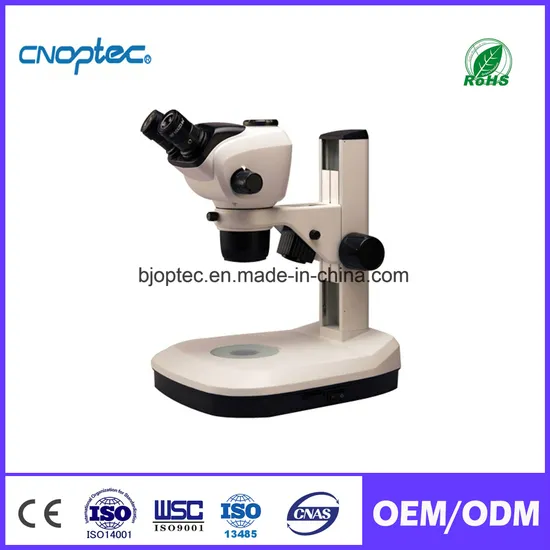

SZ 810 series Zoom-stereo MicroscopeSZ 810 series zoom stereo microscope is high-end with Galilean Optical System. It has superior quality. Magnification range attains 0.65X~5.3X.
Outstanding Ergonomic Design
SZ680/810 35°viewing angle, SZ650 40°viewing angle, suitable for long-term sitting observation. 330mm×300mm big stand, high stability , apply to all kinds of anatomy of specimen. Top Optical & Mechanical Design Greenough optical system, built-in rotating shaft zoom system. No tilting Image in left &right light path in complete pupillary distance , No dizziness feeling after long time observing. (patent number: 201320807246.0) Stereo angle for left & right light path is 12°, stereoscopic effect, large viewing field, high zoom ration. Excellent Technology And Quality High resolution, large depth of field, excellent color restoration and contrast. Operation comfortable(manufactured by high-precision machine, excellent assembly technology ). High- end material(PC resin cover, aluminium alloy ,copper alloy parts, austenite stainless steel driving parts) SZ 810 series Specifications(0.65X~5.3X.)
| Type | SZ810 |
| Magnification Range | 0.65X~5.3X |
| Zoom Ratio | 1 : 8.1 |
| Actual Field of Image Space | Φ24 mm |
| Working Distance | 110 mm |
| Stereo Angle | 12 ° |
| Viewing Angle | 35 ° |
| Interpupillary Distance Adjustment | 50 mm~75 mm |
| Auxiliary Objective | 0.5X | 0.75X | 1X(Built-in) | 1.5X | 2X | |
| Working Distance | 189mm | 122mm | 110mm | 42mm | 36mm | |
| Eyepieces 10X /φ24mm | Magnification | 3.3 to 25.5 | 4.95 to 38.25 | 6.6 to 51 | 9.9 to 76.5 | 13.2 to 102 |
| Actual Field(mm) | 72.73 to 9.41 | 48.48 to 6.27 | 36.36 to 4.71 | 24.24 to 3.14 | 18.18 to 2.35 | |
| Eyepieces 15X/φ16mm | Magnification | 4.95 to 38.25 | 7.43 to 57.38 | 9.9 to 76.5 | 14.85 to 114.75 | 19.8 to 153 |
| Actual Field(mm) | 48.48 to 6.27 | 32.32 to 4.18 | 24.24 to 3.14 | 16.16 to 2.09 | 12.12 to 1.57 | |
| Eyepieces 20X/φ12mm | Magnification | 6.6 to 51 | 9.9 to 76.5 | 13.2 to 102 | 19.8 to 153 | 26.4 to 204 |
| Actual Field(mm) | 396.36 to 4.71 | 24.24 to 3.14 | 18.18 to 2.35 | 12.12 to 1.57 | 9.09 to 1.18 | |
SZ650/680/810 Series Zoom Stereo Microscope Outfit
| Items | SZ650BP | SZ650B2L | SZ680BP | SZ680B2L | SZ810BP | SZ810B2L | |
| Main Body | Binocular | -- | -- | -- | -- | -- | -- |
| Trinocular | ○ | ○ | ○ | ○ | |||
| 10XEyepiece/Φ22mm | -- | -- | |||||
| 10XEyepiece/Φ23mm | -- | -- | |||||
| 10XEyepiece/Φ24mm | -- | -- | |||||
| 15XEyepiece/Φ16 mm | ○○ | ○○ | ○○ | ○○ | ○○ | ○○ | |
| 20XEyepiece/Φ12mm | ○○ | ○○ | ○○ | ○○ | ○○ | ○○ | |
| 0.5X/2X Objective | ○ | ○ | ○ | ○ | ○ | ○ | |
| Focusing unit | -- | -- | -- | -- | -- | -- | |
| No light | -- | -- | -- | ||||
| Reflecting 3W LED | -- | -- | -- | ||||
| Transmitting 3W LED | -- | -- | -- | ||||
| Black & white Plate | -- | -- | -- | -- | -- | -- | |
| Glass Plate | -- | -- | -- | ||||
| Arm stand | -- | -- | -- | -- | -- | -- | |
| Pillar stand | ○ | ○ | ○ | ○ | ○ | ○ | |
| Focusing Arm stand | ○ | ○ | ○ | ○ | ○ | ○ | |
| Base (330×300mm) | -- | -- | -- | -- | -- | -- | |
| C-mount 0.5X,0.7X,1X | ○ | ○ | ○ | ○ | |||
