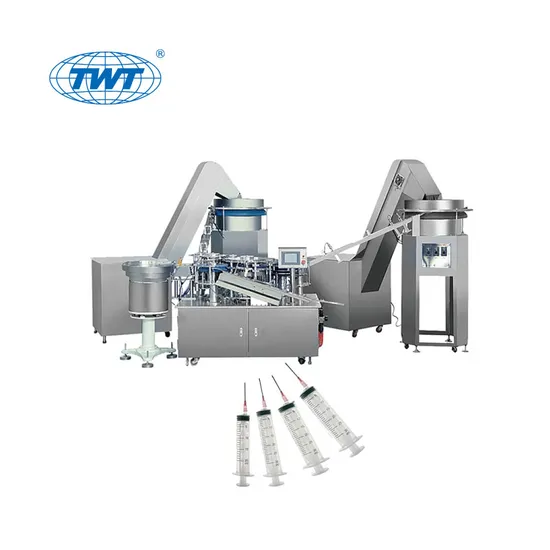

High Speed Automatic Syringe Assembly and Printing Machine Production Line

Product Description

2 Parts Syringe

Insulin Syringe

Auto-disable Syringe

Ordinary Luer Slip Syringe

Ordinary Luer Lock Syringe

Description
1. Touch Screen PLC operation panel with automatic finished products counting system, with Japanese Mitsubishi Transducer small power consumption.
2. The TWT Syringe Assembly Machine is easy to operate and with high efficiency, low noise, stable running. It meets the demands for all kinds of syringe manufacturing.
3. Automatically weed out defective goods, plugging needles and non silicon oil spray, and greatly improving the product quallity and production efficiency.
4. Photo switch monitoring synchronismly, auto-stop when no material, feeding automatically by storage bins.
Installation Group

NO.	Name	QTY.
1	Main Machine	1
2	Lifting Hopper	2
3	Vibration Hopper Base	2
4	Centrifugal Hopper	2
5	Vibration Hopper	2
6	Centrifugal hopper Slide	2
7	Centrifugal hopper Slide	1
8	Toolbox with Accessories	1

Capacity

High Speed		Standard Speed
3ML	400-450 PCS/ Min	1ML	200PCS/ Min
5ML	400-450 PCS/ Min	20ML	180-200PCS/ Min
10ML	350-400 PCS/ Min	30/ 50/ 60ML	55-60PCS/ Min

Technical Parameters
1. Product Specifications: 1cc, 2cc, 3cc, 5cc, 10cc, 20cc, 30cc, 50cc, 60cc
2. Equipment Dimensions: 4800x2300x2200 (mm);
3. Personnel: 1 operator/set;
4. Feeding Method:
-silo material extraction,
-automatic centrifugal cutting,
-automatic material control without material;
5. The designed service life shall not be less than 8 years (excluding the life of spare parts manufacturing). during continuous operation, the equipment shall be regularly maintained to ensure the service life of the equipment;
6. The whole machine power: 2.5kw, input power can be customized accordingly.
7. Weight: 1500 kg;
