Automatic Meat Processing Machine Large Vacuum Meat Mixer Machine Minced Meat Vacuum Stuffing Machine Blender

Product Description

Automatic meat processing machine large vacuum meat mixer machine minced meat vacuum stuffing machine blender

Name	Horizontal vacuum food mixer meat blending machine
Model	WZJB-750
Voltage (V)	380V
Power(KW)	7.5 KW
Volume (L)	750 L
Production ability((kg/time)	≥500
Rotating speed (r/min)	40 r/min
Vacuum spend(Kpa)	-60~-80

Compression air (Mpa)	≥0.6
Size( mm)	1800*1100*1650mm
Weight(kg)	1100 kg

The vacuum mixer is a device for mixing materials. Under the vacuum state, the materials are evenly stirred, fully expanded, no bubbles, good elasticity, bright color, and maximize the extraction of protein. The mixing efficiency is high, and it is an ideal equipment for improving product quality. Suitable for large, medium and small food processing plants, it is used to produce air-dried sausage products, granular and muddy mixed sausage products and pills.
Performance characteristics
1. The parallel double-shaft structure is adopted, and the mixing shaft is equipped with a sloping plate type paddle and a screw propeller stirring ring. The material is turned in the hopper and rotates at the same time, so that various materials are stirred more evenly, so as to achieve a better mixing effect. ;
2. It adopts two-speed and two-power, and selects different rotation speeds and different operation modes according to the type and process of the stuffing to be mixed.
3. The vacuum sealing device adopts the excellent sealing parts that meet the hygienic standards, and adopts the backward opening type, which is safe and reliable;
4. The degree of vacuum can be set arbitrarily, so that the material can be stirred in a vacuum state;
5. PLC electrical control is adopted, and the stirring mode, stirring time, stirring time of each section and stirring intermittent time can be set according to the process requirements, and automatic operation can be carried out;
The whole machine is made of stainless steel, which is easy to clean, beautiful and hygienic.
The effect of vacuum meat mixer

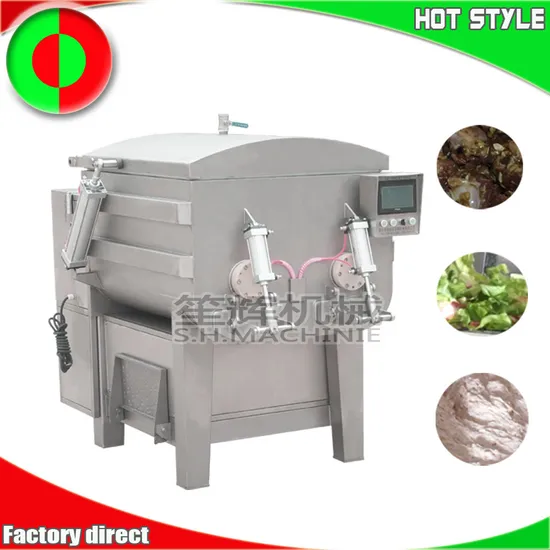

The body of vacuum meat stirring machine
The details of vacuum meat blending machine
