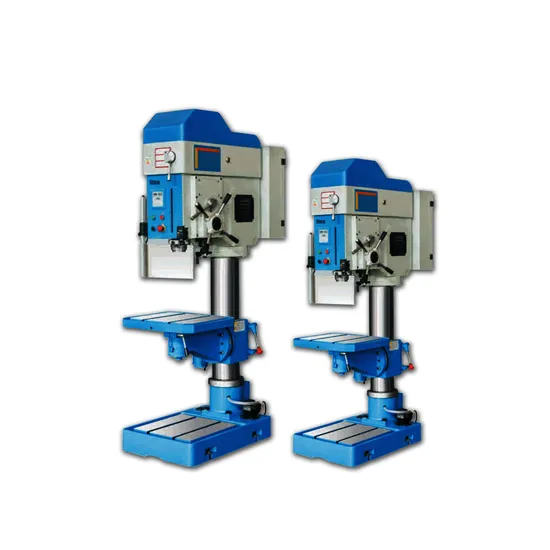

Senmo Intelligent High Efficiency Vertical Drilling Machine Zwb5050
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
ZWB5050
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
0
Hole Diameter
50-100mm
Automatic Grade
Manual
Precision
Precision
Certification
CE
Condition
New
Max.Drilling Capacity
50mm
Max.Tapping Capacity
M30mm
Spindle Taper
Mt5
Diameter of Column
180mm
Transport Package
Full Closed Plywood Box
Trademark
SENMO
Origin
China
HS Code
84592900
Product Description
| Drilling Machine |
| Gear-driven Drilling Machine |
| Feature |
| Intelligent permanent magnet stepless variable speed drilling machine. |
| Specifications | ZWB5030 | ZWB5040 | ZWB5050 |
| Max. drilling diameter | 30mm | 40mm | 50mm |
| Max. tapping diameter | M20mm | M27mm | M30mm |
| Spindle travel | 135mm | 180mm | 240mm |
| Spindle taper | MT3 | MT4 | MT5 |
| Column diameter | 120mm | 160mm | 180mm |
| Spindle speed | 50-300,300-2500r/min | 50-250,250-2500r/min | 50-200,200-2000r/min |
| Rotation angle of the table around the column in the horizontal direction | ±180° | ±180° | ±180° |
| Table travel | 480mm | 550mm | 550mm |
| Distance from spindle center to column surface | 320mm | 360mm | 360mm |
| Table size | 420x360mm | 470x390mm | 470x390mm |
| Base size | 400x390mm | 450x460mm | 450x460mm |
| Table T-slots (No./width) | 2x14mm | 2x14mm | 2x14mm |
| Base T-slots (No./width) | 2x18mm | 2x18mm | 2x18mm |
| Max. distance from spindle nose to table | 540mm | 570mm | 540mm |
| Max. distance from spindle nose to base | 1110mm | 1160mm | 1130mm |
| Max. torque | 95N.m | 200N.m | 350N.m |
| Main motor | 2.2kW | 3kW | 4kW |
| Feed motor | 90W | 90W | 90W |
| Feed speed rate | 21-213mm/min | 18-183mm/min | 20-204mm/min |
| Coolant pump motor | 40W | 40W | 40W |
| Electromagnetic clutch motor | 21W | 24W | 32W |
| N.W./G.W. | 510/560kg | 690/745kg | 845/905kg |
| Overall size | 960x500x1950mm | 1045x665x2095mm | 1055x665x2150mm |
| Packing size | 1100x620x2260mm | 1170x680x2330mm | 1170x680x2390mm |
