Kwh Meter Single Phase Two Wire Prepaid Single Phase IC Card

Product Description

6 Ddsy-2L Single Phase Two Wire Prepaid Single Phase Electricity Meter IC Card 100A
PRODUCT INFORMATION DDSY-2D Series Single phase two wire electronic prepaid energy meter is a kind of new style energy meter. It presell of electricity, run out of automatic power off, power threshold can be set.
DDSY-2L MAIN TECHNICAL PARAMETERS

Type	DDSY-2L
Accuracy	Class 1
Rated Voltage	220V Or 240v Or Other
Rated Current	2.5-10A, 5-20A, 10-40A, 15-60A, 20-80A Or other
Starting Current	0.04%
Insulating Property	Impulse voltage 6kv
Frequency	50Hz Or 60Hz
Display	5 Integer Plus 1 Decimal

If you need different Rated Voltage or rated current, please contact with us.
DDSY-2L MAIN FUNCTIONS

Type	DDSY-2L
Terminal	Impulse
Protocol	/
Display	LCD
Active Kwh	Y
Reactive Kwh	/
Voltage	/
Current	/
kW	/
Frequency	/

*For special requirements, such as Anti tamper,RS485,IR etc.,it is to be discussed for settlement.
DDSY-2L DIMENSIONS
DDSY-2L WIRING DIAGRAM
TYPE 1
TYPE 2

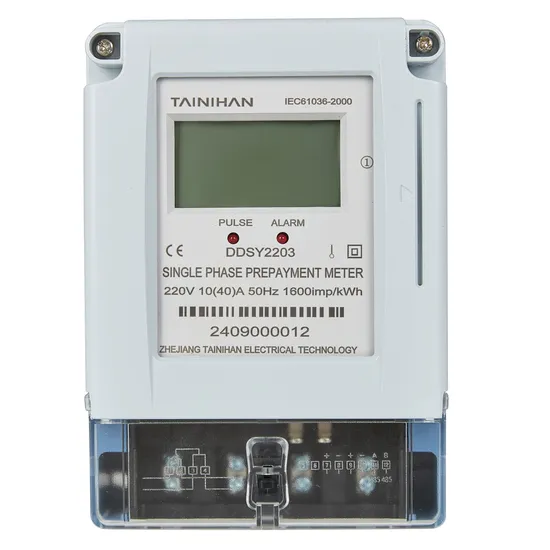

DDSY-2L APPEARANCE
PACKING

TYPE	CARTON SIZE	CBM	QTY	G.W/KG	N.W/KG
40A	46 X 28.5 X 39CM	0.052	20	13	12
80A	46 X 28.5 X 39CM	0.052	20
100A	46 X 28.5 X 39CM	0.052	20
