Polishing Feeding Dust Suction Laser Cutting Filter Cartridge Pulse Industrial Dust Collector

Product Description

Basic Info

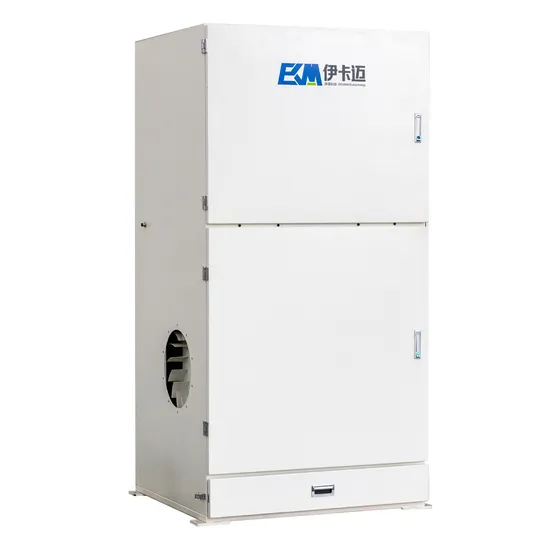

lntegrated filter cartridge dust collector EKM3000 is a series of dust collectors specially developed for welding, cutting, polishing and other smoke and dust characteristics.
It integrates the design of filtering units, fan motors, control systems, preprocessors, etc., and is equipped with different air volumes and quantities of filtering units to adapt to different on-site working conditions. The air inlet is equipped with a uniform flow ash blocking device, which has a more uniform wind speed, lower wind resistance, and prevents the filter cartridge from being damaged by large particle dust at high speeds.
It adopts a guide cone filter cartridge, which improves the ash cleaning effect by more than 30% compared to ordinary filter cartridges.
The unique quick installation method of the filter cartridge and the mechanical lifting device of the ash bucket are easy to maintain, and the PLC automatic control system is used.
The operation is simple and reliable, and the internal unique noise reduction treatment has extremely low operating noise.

Model	EKM-3000EX	EKM-6000EX
Airflow	3000m³/h	6000m³/h
Machine power	3.0kW	7.5kW
filtration efficiency	99.9%	99.9%
filter cartridge	φ324*610mm	φ324*610mm
Cartridge number	4	6
Ash bucket volume	40L	60L
Noisc level db	≤75dB( A)	≤75dB(A)
Air Compression	0.5-0.6MPa	0.5-0.6MPa
Voltage/Phase/Hertz	380V/3PH/50Hz	380V/3PH/50Hz
Inlet Size	φ300mm	φ300mm
Overall dimensions	11560*950*2870mm	11560*950*2870mm
weight	733kg	841kg
Humidity/Temperature - sensor	YES	YES
match	Inverter control	Inverter control

Product Description
This dust collector is suitable for welding dust plasma, laser cutting dust polishing dust new material processing dust Centralized governance
For dust removal conditions with potential spark hazards, spark capture devices can be installed at the front end to eliminate fire hazards.
For flammable and explosive dust removal conditions, explosion-proof integrated filter cartridge dust collectors can be selected.
For welding environments that require constant temperature and humidity, an integrated filter cartridge dust collector with temperature and humidity control unit can be selected

Our Advantages
1.Integrated structure design, rigid style with excessive bevel Angle, beautiful appearance, small footprint and strong adaptability.
2.PTFE polyester coated imported filter cylinder, compared with the traditional fiber or microfiber coated filter material service life of 2 to 3 times longer, up to 3000 hours or more. The inner diversion cone device solves the problem of incomplete cleaning in the upper 1/3 range of the ordinary filter cartridge, and the cleaning effect is increased by more than 30%.
3.Unique rapid installation of the filter cylinder, just gently rotate the handle, the filter cylinder automatic separation, easy to achieve the replacement and maintenance of the filter cylinder, using the vertical installation structure, more thoroughly clean ash, longer service life.
4.Filter cylinder equipped with differential pressure detection, according to the blockage of the filter cylinder, to achieve automatic cleaning treatment, can also be cleaned regularly.
5.External PLC automatic control system, simple operation, more unified with the whole equipment, and according to the requirements of the equipment field operation environment, the installation position of the electric control box is more flexible. Our Company
