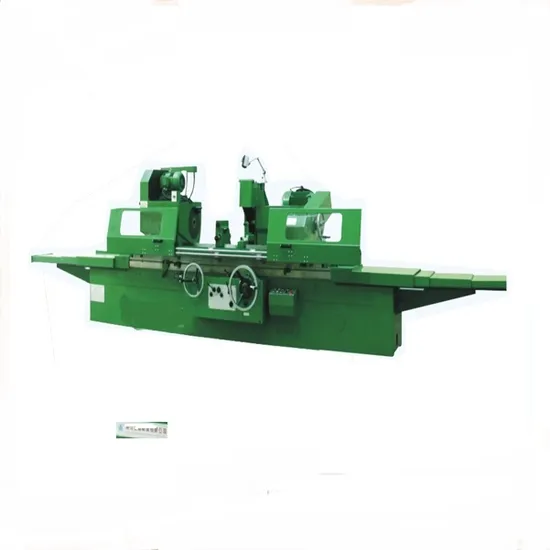

grinding machine M1450B Universal Cylindrical Grinding machine

Product Description

Product Description
Cylindrical Grinding machine Main Features:
Main Specification:

Specification	M1450Bx1500/2000/3000/4000
Grinding length(O.D/I.D)	1500/2000/3000/4000mm,320mm
Grinding dia.(O.D/I.D)	φ500/φ200mm
Center height	270mm
Max.worktable traverse	1500/2000/3000/4000mm
Max.workpiece weight	1000kgs
Worktable speed	3m/min
Max.wheel peripheral speed	35m/s
External wheel size	φ500x75xφ305mm
Wheelhead displacement per div.of handwheel (coarse/fine)	/
Automatic intermittent infeed (coarse/ fine)	0.02/0.0025mm
Manual microfeed (coarse/ fine)	0.02/0.0025mm
Total motor power	14.08kw
Machine overall dimension(LxWxH)	5320x2680x1560mm 6090x2680x1560mm 10240x2680x1560mm 12280x2680x1560mm
Machine weight	8600/9900/11350/13100kgs

Standard accessories:

Complete set of electric equipment

Complete set of coolant equipment

Grinding wheel peripheral dresser

Wheel hub

Wheel balancing mandrel

3-jaw chuck

Open type steady rest

Leveling wedge

Optional accessories:

Radius dresser

Close type steady rest

Wheel balancing stand

Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What's the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
