Customized water mold temperature controller oil mold temperature controller
| US$1,100.00-1,500.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
STC-series
Heating Medium
Water
Customized
Customized
Sales market
Global
Max. Temp. (ºC)
90-180
Transport Package
Packing by Wooden or Carton, Depend on The Goods
Specification
Variable
Trademark
MFGSP
Origin
China
HS Code
8419899090
Production Capacity
5000sets/Year
Packaging & Delivery
Package Size
100.00cm * 80.00cm * 90.00cm
Package Gross Weight
90.000kg
Product Description

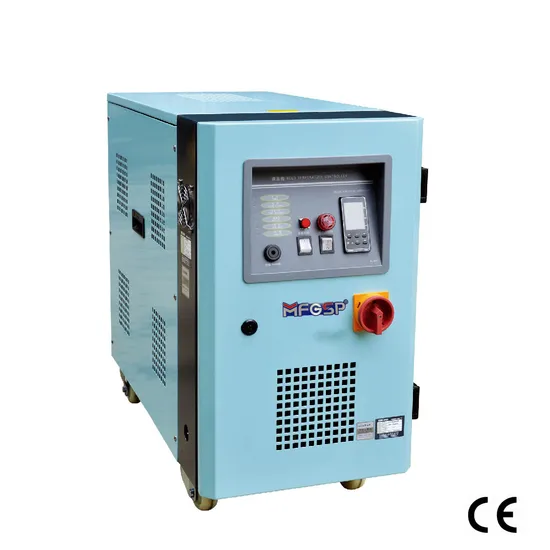

Water Type Mold Temperature ControllerPerformance characteristic:
1.Controlled by PID micro computer,accurate temperature control.
2.Pump overload protection to ensure service life effectively.
3.Alarm device for low liquid level to guarantee system running safety.
4.Switch of main power source conforms to CE safety standard.
5.Alarm device for Phase reverse to guarantee system running safety.
6.The device is equipped with multi-fault indicator to facilitate the customer knowing the reason and solving in time.
7.The heating barrel is made from the stainless steel and cleaned easily.
| Water Type Mold Temperature Controller Specifications: | |||||||||
| Model | Max. Temp. (ºC) | Heat (kw) | Pump (kw) | Flux (L/min) | Heating Medium | Cooling Mode | Mold Tie (Inch) | Extennal Dimensions LxWxH (mm) | Weight (kg) |
| STC-6W | 95 | 6 | 0.37 | 45 | Water | Direct Cooling | 3/8"2x2 | 780x260x650 | 40 |
| STC-9W | 95 | 9 | 0.75 | 56 | 3/8"4x2 | 780x260x650 | 45 | ||
| STC-12W | 95 | 12 | 1.5 | 80 | 3/8"6x2 | 780x260x650 | 50 | ||
| STC-18W | 95 | 9x2 | 1.5 | 200 | 3/8"6x2 | 900x400x810 | 55 | ||
| STC-24W | 95 | 12x2 | 2.2 | 315 | 3/8"6x2 | 900x400x810 | 60 | ||
| STCH-6W | 160 | 6 | 0.37 | 45 | 3/8"4x2 | 900x400x810 | 50 | ||
| STCH-9W | 160 | 9 | 0.75 | 56 | 3/8"4x2 | 900x400x810 | 52 | ||
| STCH-6WZ | 160 | 6 | 0.55 | 45 | Indirect Cooling | 3/8"4x2 | 910x340x800 | 50 | |
| STCH-9WZ | 160 | 9 | 0.75 | 56 | 3/8"4x2 | 910x340x800 | 50 | ||
| STCH-12WZ | 160 | 12 | 1.1 | 80 | 3/8"4x2 | 910x340x800 | 55 | ||
| STC-6W-2D | 95 | 6x2 | 0.37x2 | 45x2 | Direct Cooling | 3/8"2x4 | 900x400x810 | 60 | |
| STC-9W-2D | 95 | 9x2 | 0.75x2 | 56x2 | 3/8"4x4 | 900x400x810 | 65 | ||
| STM-607PW | 180 | 6 | 0.6 | 25.5 | Indirect Cooling | 3/4" / 3/4" | 320x910x690 | 80 | |
| STM-607PW-D | 6x2 | 0.6x2 | 25.5 | 3/4" / 3/4" | 620x990x750 | 185 | |||
| STM-1220PW | 12 | 1.05 | 50 | 3/4" / 3/4" | 320x990x690 | 95 | |||
| STM-1220PW-D | 12x2 | 1.05x2 | 50 | 3/4" / 3/4" | 620x990x750 | 190 | |||
| STM-2440PW | 24 | 2.9 | 100 | 1" / 1" | 450x1050x950 | 140 | |||
