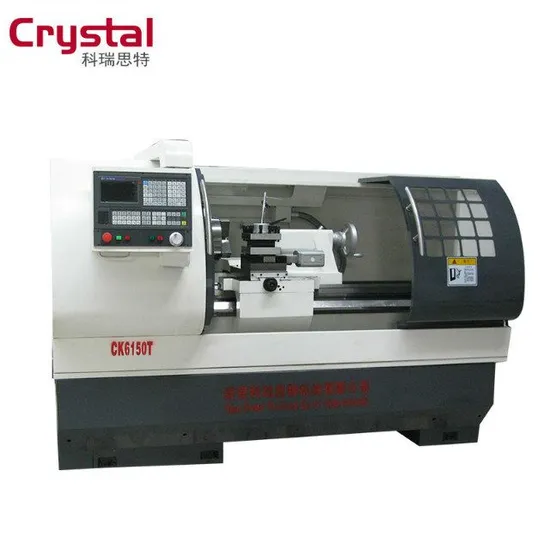

Whole Cast Iron Medium Duty CNC Lathe Machine Ck6150t
| US$15,300.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CK6150T
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Table
Precision
High Precision
Certification
GS, CE, ISO 9001
Name
Horizontal CNC Lathe Machine
Max. Swim Over Bed
500mm
Max. Swim Over Carriage
290mm
Width of The Bed
360mm
Spindle Speed
150-2000rpm
Spindle Bore
72mm
Transport Package
Wooden Package
Specification
CE, SGS, ISO
Trademark
Crystal
Origin
Shandong, China
HS Code
8458110090
Production Capacity
50set/ Mon
Product Description
Whole Cast Iron Medium Duty CNC Lathe Machine CK6150T Machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also can process the single and multiple threads in metric, inch and other standards.Product Display
Detail Show
A. Main features:
1. It is made from the whole cast-iron, which is heavy enough with good rigidity and
stability.
2. Three gears controlled by a handle, stepless speed regulation, with lower noise and
high- standard machining accuracy, is an environmental- protective machine.
3. The spindle is the high- rotate speed and sophisticated bearing with smooth surface.
The extra size diameter of the spindle bore is φ72mm while the diameter of chuck is
φ250mm.
B. specifications of CK6150T
| ITEMS | Specifications |
| Max. swim over bed | Φ500mm |
| Max. swim over carriage | Φ290mm |
| Max. length of work piece | 1000mm |
| Width of guide way | 360mm |
| Size of the three-jaw chuck | 250mm |
| Range of spindle speed | 3 gears, 30-150,100-500,320-1600rpm |
| Spindle bore | Φ72mm |
| Taper of spindle bore | Type of spindle D-8 |
| Max. size of tool post | 25×25mm |
| Stations of tool carrier | 4/6/8/ station tool carrier |
| Min. setting unit of motor | (Z) long 0.001mm,(X) cross 0.001mm |
| Moving speed of post | (Z) long 8m/min,(X) cross 4m/min |
| Taper of tailstock quill | MT5 |
| Max.range of tailstock quill | 150mm |
| Motor power | 7.5KW |
| Packing size(length ×width × height) | 2660 mm×1560 mm×1730mm |
| Net weight | 2500kg |
