M1224ahd CNC Grinding Machine 3 Axis CNC Surface Grinding Machine

Product Description

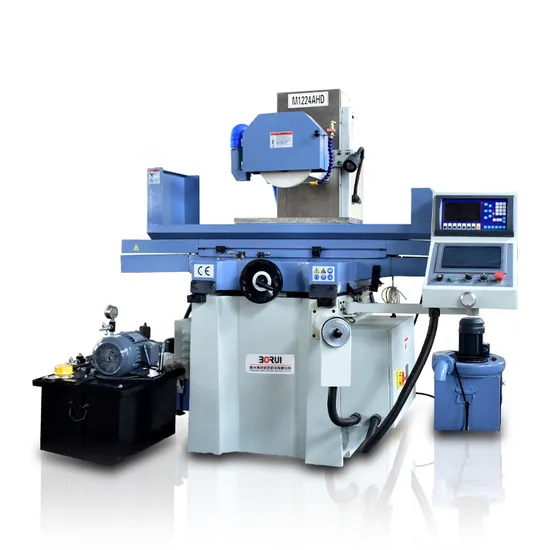

M1224AHD 3 axis Automatic CNC Surface Grinding Machine

Products Description. Application: * Guide way is coated with Turcite and precision hand scraped, move smoothly and keep the accuracy long life.
* Well-designed control panel with two-way rotate structure, make the operator getting suitable operating position very easy, improve work efficiency
* The grinder is standard equipped with auto down feed AC servo motor, and controlled by PLC and HMI, to realize auto grinding, then to realize auto grinding.
* For the control panel is equipped with HML, by which the operator can easy operating on the machine to realize auto working.

Item		Unit	M1224AHD	M1224NC2	M1224NC3
Worktable size (L×W)		mm	600×300	600×300	600×300
Worktable traverse (L×W)		mm	640×320	640×320	640×320
Max. Grinding area (L×W)		mm	640×320	640×320	640×320
Number of T-slot		mm	1×14	1×14	1×14
Distance from worktable to spindle center		mm	490	490	490
Wheel size (OD×W×ID)		mm	300×30×75	300×30×75	300×30×75
Spindle speed		rpm	1440	1440	1440
Worktable longitudinal speed		m/min	3-20	3-20	3-20
Table horizontal feed	Continous (Variable speed)	mm/min	150	150	150
	Intermittent (stepless)	m/time	0-5	0-5	0-5
	Handwheel rotates	mm	2.5	2.5	2.5
	Hanwheel each grid	mm	0.02	0.02	0.02
Vertical feed	Handwheel rotates	mm	2	2	2
	Hanwheel each grid	mm	0.01	0.01	0.01
Vertical MPG feed	The MPG Rotates	mm	0.1/1/10	0.1/1/10	0.1/1/10
	MPG each grid	mm	0.001/0.01/0.1	0.001/0.01/0.1	0.001/0.01/0.1
Spindle motor		kw	4	4	4
Worktable cross feed motor		kw	0.06	0.06	0.06
Worktable servo motor(Left-Right)		kw	---	---	0.75
Worktable servo motor(Front-Back)		kw	---	0.75	0.75
Vertical feed servo motor		kw	0.75	0.75	0.75
Cooling pump motor		kw	0.04	0.04	0.04
Hydraulic motor		kw	1.5	1.5	---
Working pressure		mpa	3	3	---
Fuel tank capacity		L	80	80	---
The maximum flow		L/min	18	18	---
Surface parallelism		mm	300/0.003	300/0.003	300/0.003
Surface roughness		um	Ra0.63	Ra0.63	Ra0.63
G.W./ N.W.		kg	1500/1400	1500/1400	1500/1400
Packing size (LxWxH)		cm	200×170×210	200×170×210	200×170×210

M1224AHD	M1224NC2	M1224NC3
Vertical: AC servo motor	Vertical: AC servo motor	Vertical: AC servo motor
Cross: Motor	Cross: AC servo motor	Cross: AC servo motor
Longitudinal: Hydraulic	Longitudinal: Hydraulic	Longitudinal: AC servo motor
Controller: GS-PLC Touch	Controller: GS-PLC Touch	Controller: GS-PLC Touch
