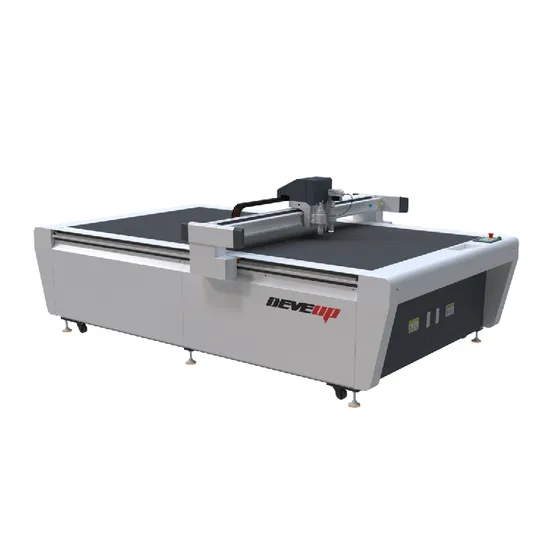

Digital CNC Cutting for Corrugated Cardboard Honeycomb Paper Flat Bed Oscillating Knife Cutter Carton Box Making Machine

Product Description

Digital cnc cutting table for cardboard corrugated board Flat bed oscillating knife cutting and marking machine Features:
Our CNC carton cutting machine has built-in more than 40 common carton layouts, which can be used by customers according to production needs, avoiding the processing cost caused by repeated design;
With high-power electric vibration knife cutting tool, strong power and high vibration frequency;
The whole machine with high-precision rack and pinion transmission mechanism, which has faster response speed, higher positioning accuracy and more stable performance of the whole machine;
Using Japan's Mitsubishi servo motor to control the up and down movement of the vibrating knife and the pressure wheel, the computer can control the depth of the vibrating knife and the pressure wheel at will to ensure perfect processing accuracy;
The 9KW high-power vacuum adsorption system ensures that the carton can be firmly fixed on the work surface, ensuring fast and perfect processing.
Specifications:

Model	FV1625 (Support customization)
Working area	1600mmX2500mm
Operation properties	Online / offline operation; continuous cutting with high efficiency, 7*24 with zero downtime
Safety device	Infrared adopted; sensitive response; safe and reliable
Multi-function tool	Vibrating knife full cut, semi-cut cutting, indentation, drawing mark, cursor positioning, camera positioning edge cutting, V-groove various angle cutting
Applicable materials	Cardboard, gray cardboard, KT board, Chevron board, honeycomb board, car sticker, light sheet, PP adhesive, inkjet cloth, flag cloth, various corrugated cardboard, EPE foam, EVA, PVC board, acrylic board, etc.
Transmission system	Mitsubishi servo motor + precision reducer + Taiwan HIWIN guide rail + grinding rack
Fixed mode	Vacuum absorb
Precision	±0.01mm
Cutting speed	0-1500mm/s(Set according to material)
Cutting thickness	Standard cutting height: ≤45mm, customizable maximum cutting height 110mm
Support file format	AI,PLT,DXF
Rated power	9KW/11KW
Rated voltage	380V±10%/220V±10% Optional
Control System	Chinese English and Spanish LCD touch screen

Machine Details:
Advantages of our oscillating knife cutting machine for corrugated boxes:
Our oscillating knife corrugated cardboard cutting machine adopts computer control, supports input of electronic pattern, one-key cutting, simple operation, and can be configured with automatic board feeding system, replacing 3-6 workers.
1. The oscillating knife cutting machine is suitable for cutting a variety of packaging materials: it can cut different materials (corrugated paper, honeycomb board, cardboard, plastic board gray board color, composite paper, gasket, leather, cloth, etc.).
2. A variety of cutting functions: it can press out perfect folding lines on corrugated paper, cardboard, plastic board, and other materials, and can also be used for folding after half-cutting corrugated paper and cardboard, dotted line cutting, and other functions.
3. Can be equipped with a variety of cutting tools - cutting, creasing, beveling, and marking tools, which can complete line drawing, drawing, text annotation, indentation, half-knife cutting, and full-knife cutting at one time.
4. The processing method is more flexible and intelligent. It can be used for corrugated cardboard cutting, carton proofing, color box proofing, plastic box proofing, POP paper display rack paper shelf proofing, small batch production, shortening carton development, and delivery time; to meet the small batch, multi-style order production goals.
More Applications:
More Cutting Samples:
Our digital cutting machine is widely used in the advertising printing and packaging industry. It is equipped with a replaceable tool head to meet the different cutting needs of customers cutting different materials. The cutting materials include various corrugated paper, Chevron board, car stickers, adhesive, Photo frame paper, KT board, gray board paper, honeycomb board, acrylic board, PVC board, foam, etc.
Multi-function cutting head design, highly integrated multi-group machining tools, interactive cutting, punching, and scribing in one working unit for one-stop operation. Oscillating knife cutting head, crimping reel, V-cutting head, and high-speed milling head. Can cut 30 or 60mm honeycomb paperboard, acrylic sheet, corrugated paper, plastic corrugated board, gray board paper, white cardboard, film, composite material, leather, cloth, rubber sheet, pearl cotton, aluminum composite board, and foam KT board A variety of materials. The V-cut system can cut V-shaped grooves of 5 different angles such as 45°, 30°, 22.5°, 15°, 0°, etc. Customers can choose the appropriate configuration according to their own needs.
Welcome to inquire, we will provide professional solutions!
