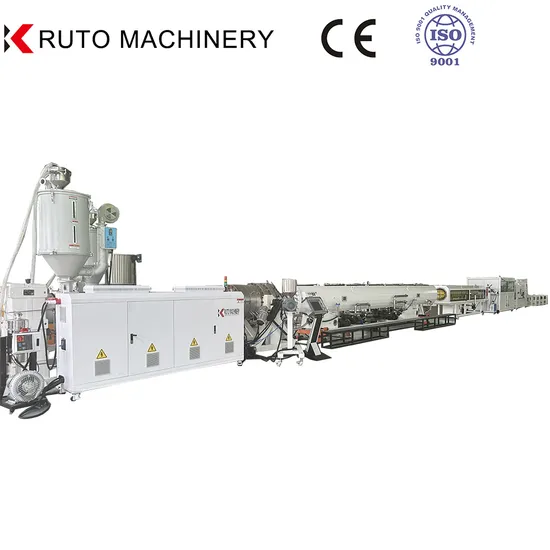

50-160mm Single Double Triple Multiple Layer Plastic HDPE PE PP Pipe Tube Extrusion Production Line Making Machine Tubing Making Equipment
| US$10,900.00-136,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
Pipe extrusion line 007
Screw No.
Single-screw
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Customized
Customized
Condition
New
After-sales Service
Engineer on-Site Debugging Available
Product
PE Pipe Extrusion Line
Application
Produce New Plastic Pipes
Pipe Size
16mm-1200mm
Extruder Control
by Siemens PLC Screen Touch
Screw Channel Structure
Deep Screw
Electrical Components
Siemens, ABB, Omron, FUJI, etc.
Production Speed
High Speed
Machine Installation
Available
Advantage 1
Long Life
Advantage 2
High Efficiency
Advantage 3
High Capacity
Pipe Usage
Water, Engergy, Gas, Irrigation, etc.
Exhaust
Don′t Exhaust
Delivery Time
About 30 Working Days
Keywords
Pipe Machinery
Transport Package
Standard Packing
Origin
China
HS Code
84778000
Production Capacity
30 Sets/Per Month
Product Description
Model| Model | Pipe dia. Range (mm) | Main Extruder Model | Mark-line Extruder Model | Extrusion Speed (m/min) | Max.Output (kg/h) | Total installed Power( Kw) | Overalldimension LXWXH |
| KPEG-50×33-63 | Ø20- Ø 63 | KSJ-50X33 | KSJ-25X25 | 0.2-16 | 120 | 65 | 36x2.2x2.5 |
| KPEG-65×33-110 | Ø 20- Ø 110 | KSJ-65X33 | KSJ-25X25 | 0.2-20 | 220 | 115 | 56x2.2x2.5 |
| KPEG-75×33-160 | Ø 63- Ø 160 | KSJ-75X33 | KSJ-25X25 | 0.-6 | 300 | 160 | 50x2.2x2.8 |
| KPEG-80×33-250 | Ø 75- Ø 250 | KSJ-80X33 | KSJ-25X25 | 0.2-5 | 400 | 200 | 52x2.2x3.0 |
| KPEG-90×33-400 | Ø160- Ø 400 | KSJ-90X33 | KSJ-30X25 | 0.2-2 | 550 | 250 | 66x2.2x3.0 |
| KPEG-100×33-500 | Ø 200- Ø 500 | KSJ-100X33 | KSJ-30X25 | 0.1-1 | 700 | 300 | 70x2.3x3.5 |
| KPEG-120×33-630 | Ø 355- Ø 630 | KSJ-120X33 | KSJ-30X25 | 0.1-1 | 900 | 420 | 72x2.3x3.5 |
| KPEG-135×33-800 | Ø 400- Ø 800 | KSJ-135X33 | KSJ-40X30 | 0.08-0.8 | 1200 | 500 | 76x2.5x4.0 |
| KPEG-150×33-1200 | Ø 800- Ø 1200 | KSJ-150X33 | KSJ-40X30 | 0.05-0.5 | 1500 | 650 | 80x3.0x4.0 |
FAQ
Q: Are you a manufactuer or trading company?
A: We're professional manufacturer.
Q: Where is your company?
A: Our company is located in Qingdao City and it's only half an hour's drive from the airport.
Q: What's your payment term?
A: L/C, TT is all good to do.
Q: When can I get the price?
A: Once we get the specific inquiry, we can send you the price with the configuration within 3 days.
Q: If we have some other product requirements that your page don't include, can you help to supply?
A: Yes, we can customize products and services to meet your specific needs.
Q: How long is the warranty period?
A: 12 months.
