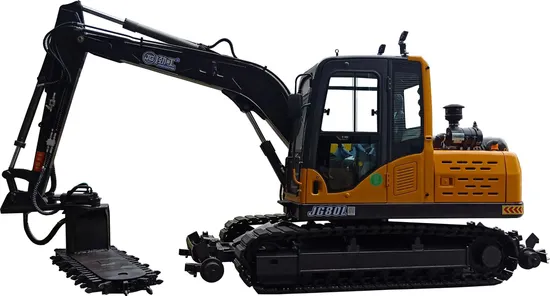

Specialty Railway Equipment 180° Rotate Undercutter Bar Excavator for Maintenance of Ballast
Basic Info.
Model NO.
JG-LT
Type
Customized
Usage
Special Excavator, GM Excavator, Railway Machine
Bucket
Customization
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
MOQ
1set
After Sales Service Support
Remote Technical Support
Feature
Experienced Manufacturers
Color
Customer Requirements
Transport Package
Nude Packing
Specification
6100*2200*2650mm
Trademark
JingGong
Origin
China
HS Code
8429521200
Production Capacity
3000units/ Year
Product Description
As the professional level of users is getting higher and higher, in order to meet the customer's demand for products,Jingong Machinery constantly innovates and upgrades the products, and optimizes and improves the products from
the professional perspective of future development.
Since its establishment in 1997, Jingong has always been adhering to the business philosophy of "survive by quality,
rely on efficiency through management", put customers first, and develop and manufacture products that are popular
in the market.
1. The machine is easy to operate, light weight, high efficiency and low failure rate, which can meet the needs of railway
ballast operation.
2. Using high performance, high quality imported oil machine as the power, with stable output of large horsepower,
low fuel consumption, less lubrication oil consumption, small quality, low noise characteristics.
| SPECIFICATIONS | ||||||||||
| RANGE OF OPERATION | Boom length | 3300mm | ||||||||
| Arm length | 1850mm | |||||||||
| Maimum digging force | 45KN | |||||||||
| Back-end radius of gyration | 1980mm | |||||||||
| SCREENING BUCKET ATTACHMENT | Max. bucket capacity | ≥0.25m³ | ||||||||
| Swing speed of bucket | ≥30r/min | |||||||||
| Maximum digging force | ≥45KN | |||||||||
| DIMENSION | (Length*width*height) travel position | 6100*2800*2650mm | ||||||||
| Roller gauge | 2600mm | |||||||||
| Track Gauge | 1570mm | |||||||||
| Width Of Crawler | 400mm | |||||||||
| Ground clearance of counterweight | 780mm | |||||||||
| Min ground clearance | 280mm | |||||||||
| TECHNICAL PARAMETERS | Applicable railway gauge | 1435mm(customizable) | ||||||||
| Angle of rotation | 360° | |||||||||
| Machine weight | 8000~8500kg | |||||||||
| Engine model | YUCHAI | |||||||||
| Rated Power | 48~62.5KW | |||||||||
| Rated Speed | 2200r/min | |||||||||
| Fqt Fuel Quantity | ≥4L/h | |||||||||
| Capacity Of The Fuel Tank | 110L | |||||||||
| Hydraulic Tank Capacity | 110L | |||||||||
Company
Authentication certificate
Product
Our company mainly produces wheeld excavator, crawler excavator, grapple excavator, material handler, railway machine,
sugarcane combine harvester.
Optional Device
Packing
Process
Exhibition Show
