C140 70m/Min Light Keel Roll Forming Machine Metal Profile Drywall Framing System

Product Description

Product Description

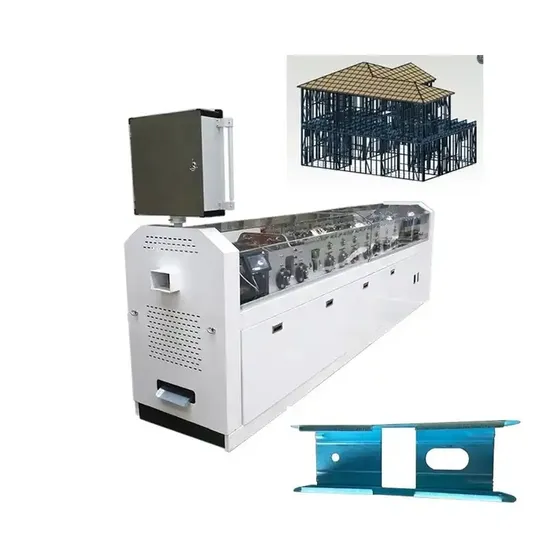

Zk C140 Automatic Light Gauge Buildings Steel Frame (LGBSF) Roll Forming Machine for Prefabricated Houses Luxucy Villas
Light steel keel with cold-formed thin-wall steel members as the basic structural skeleton, new structural plate as structural system, with other thermal insulation, decorative materials, integrated production by the factory and on-site assembly of the building system. The system adopts cold thin-wall steel structure system, which has the characteristics of small section size, light weight and so on. Compared with traditional buildings, the use area is increased by 5-8%, and the foundation cost is reduced significantly. The unique wall bearing system makes the building full of light and dynamic, improves the flexibility of the interior layout, and low-carbon environmental protection building materials make the building durability better, the structure more safe, with good seismic, fire, thermal and sound insulation performance, which is an efficient and energy-saving green building system.
Basic Info.

Model	ZKC140	Punching	Auto Precision Stamping
Speed	0~50 Meters/Min with Punching	Power	7.5Kw
Production Thickness	0.5-1.5mm	Transport Package	Customized Packaging
Specification	U type and C type	Trademark	Zhongke Roll Forming Machine Co.,Ltd.
Origin	Hebei,China	HS Code	8474801000
Production Capacity	20sets/month

Detailed Photos




Product Parameters

Strip Parameters
Width:	235mm
Thickness:	0.5-1.5mm
Inside Diameter:	φ430~590mm
Outside Diameter:	≤φ1300mm
Weight:	≤ 3T
Texture of Steel coil	G550
Uncoiler
Inside Diameter:	430-590mm
Outside Diameter:	1300mm
Main Molding Machine
Sheet Roller Forming Part:	Used for rolling and bending strip steel gradually in a certain order.
The Total Weight of the Machine:	4.5T
Total Length of Machine:	5.3m x 0.8m x1.2m (Length*width* height)
Molding Pass:	12 Archways; Sets of Spindle Roll Forming; Gears and Archway Structures
Main Driving Mode:	Servomotor : 7.5KW
High production speed:	High Speed: 30m/min
Rollers:	Imported material, DC53.CNC center machining,HRC58-62°, accurate grinding
Main Shaft:	40Cr After conditioning processing, accurate grinding
Frame and Roof Mold Stamping:	8 Stations(Pipeline hole, web hole, small edge cut, fixing hole, chamfering, web retrenchment, shearing, stud bolt hole).
Injet Printer:	Double nozzles, both sides of the high waist spray, spray content can be set.
Sheering:	Hydraumatic
Hydraulic power:	7.5KW
Blade material:	Tungsten steel (imported)
Programmable Logic Controller
Voltage:	380V, 3 Phase 50Hz
Control mode:	19 Inch Touch Computer + 1 electrical control cabinet
Origin of main parts:	PLC(Panasonic),Relay (SA),Length Encoder(OMRON),Servomotor(INVT)

Main Products
Our main products include: Roll Forming machine, Glazed Tile Forming Machine, Roof Panel, Wall Panel Molding Machine, C/Z Steel Machine, JCH Roll Forming Machine, Floor Deck Roll Forming Machine, Rolling Shutter Door Forming Machine, Double Color Steel Tile Forming Machine, Shearing Plate and Bending Machine, Composite Plate Production line, other auxiliary equipments, Shaped Tile Pressing Machine and other series products, facing all over the world. Our company's products beautiful and magnificent in appearance, the structure is light and reasonable, tile category variety. Therefore, our products are widely praised by the color steel industries and customer friends of the world.
Our Advantages
Regional Advantages
Zhongke Tile Press Machine Factory is located in China's machinery and casting township-- Botou City. It is well located with Beijing and Tianjin in the north and Bohai Sea in the east. Botou City has developed convenient and multifunctional traffic lines. The main transport lines in Botou are: Beijing - Shanghai Railway, expressways and 104 national road. Zhongke is a manufacturer of tile press machines, we have many years of R & D, design and production of rich industry experience. Nowadays, our company has formed a complete modern management model with great product development and innovation ability. Our products are favored by global customers because of the lightweight structure, novel design and high degree of innovation.
Technological Superiority
After years of practical experience accumulation and industry experts design layout, our company in production, sales, installation, commissioning and provide technical consultation of tile press has great advantages. Our factory is a modern enterprise with strong technical strength and production capacity. Our Company products rely on high quality and low price and good technical performance, in the customer base to harvest good feedback. And we can also according to user requirements for special design and manufacturing, at the same time in the production, installation, commissioning and maintenance of color steel equipment for users to provide one-stop service and technical guidance.
Marketing Service
Our products are sold all over the world, and we have many years of export experience and flexible export advantages. Have a good understanding of different customer needs in developed and developing countries. In addition, we have a special foreign trade team will timely reply to your doubts, senior designers will be in accordance with your wishes or to provide the program design, our skilled technical workers will produce according to your order. Our sales and design staff will carefully listen to your needs and requirements, and completely according to your needs for design and manufacturing, to help you get the ideal equipment and products.
Tag: roof tile roll forming machine, roof panel roll forming machine, cold roll forming machine
Packaging & Shipping

Customer Visit
Company Panorama
FAQ
1.Do you have after sales support? Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.2.How to visit your company?a. Fly to Beijing airport, we can pick you up.b. Fly to Tianjin Airport, we can pick you up.3.How to get a quotation?a. Give me the profile drawing and thickness, this is the important. If not, I will suggest you some.b. Other specific requirements are welcome, such as the speed, power and voltage you want.4.You are trade company or factory?We are factory. Welcome to our workshop for visiting.5.Can you be responsible for transport?Yes, please tell me the destination port or address. We have rich experience in transport.6.How long the machine could be made?Normally speaking, common roll forming machine could be made within 45 working days.If you need machines in a hurry, we can make it for you less than a month.
