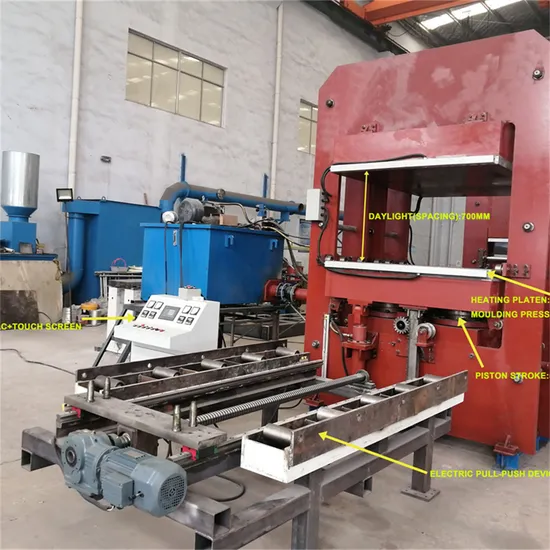

Widely Used Plate Rubber Vulcanizing Press Equipment

Product Description

Product Parameters Rubber vulcanizing press applies to all kinds of rubber (natural rubber, EPDM rubber, NBR rubber, synthetic rubber, silicone rubber ext. ) plate vulcanizing and compression molding.
This machine can be used to make O ring, sealing parts, oil seal, auto parts, rubber crash pad, rubber air spring, key board, medical rubber parts, rubber bottle stopper, silicone wrist band, water-stop tape, bridge support/bridge bearings, rubber cable, electronics insulators etc.

Model	XLB-DQ1200X1200	XLB-DQ1300X2000	XLB-Q1200 X2500	XLB-Q1500 X2000	XLB-Q2000 X3000	XLB-Q1400 X5700
Total Pressure	3.15mn	5.60mn	7.50mn	10.00mn	18.00mn	28.00mn
Platen Size(mm)	1200x1200	1300x2000	1200x2500	1500X2000	2000x3000	1400x5700
Daylight	200mm	400mm	400mm	400mm	400mm	400mm
Working Layer	2	1	1	1	1	1
Piston Stroke	400mm	400mm	400mm	400mm	400mm	400mm
Heating Way	Electric or steam	Electric or steam	Steam	Steam	Steam	Steam
Power	3kw	8kw	9.5kw	11kw	11kw	11kw

Model	XLB-D350X350	XLB-D400X400	XLB-D600X600	XLB-D750X850	XLB-D900X900	XLB-D1000X1000
Total Pressure	0.25mn	0.50mn	1.00mn	1.60mn	2.50mn	3.50mn
Platen Size	350x350mm	400x400mm	600x600mm	750x850mm	900x900mm	1000x1000mm
Daylight	125mm	125mm	125mm	125mm	125mm	125mm
Working Layer	2	2	2	2	2	2
Piston Stroke	250mm	250mm	250mm	250mm	250mm	250mm
Heating way	Electric	Electric	Electric	Electric	Electric	Electric
Platen Unit Area Pressure	20kg/cm²	31kg/cm²	28kg/cm²	25kg/cm²	31kg/cm²	31.7kg/cm²

Product Description
Features:
1. The press has the functions of automatic rise, automatic pressurization, automatic exhaust, automatic pressure compensation, automatic constant temperature, automatic glue injection, vulcanization timing, time alarm, automatic descent, automatic mold opening, etc.;
2. Description of the main components of the host
2.1. Column: The material is made of medium carbon quenching and tempering and processed, and the surface is plated with hard chromium axis. The surface hardness is HRC55-58;
2.2. Oil cylinder: The material of the oil cylinder is high-quality QT500-7, and the quantity is 1 piece.
2.3. Machine body: AUTO CAD-assisted mechanical design is used. The ductile iron QT-500 is age-passivated and has high strength and toughness. The tensile strength is 50kgf/mm.
2.4. Plunger: The plunger is made of LG-P chilled hard alloy material. This material has high surface hardness and is not easy to wear. The depth of the chilled hard layer is 8-15mm and the hardness is HRC60-70 degrees, which improves the overall service life of the plunger.
2.5. Mold entry and exit track: The sliding surface is made of S50# steel, which is heat-treated to HRC 55-58, and is equipped with bearings to ensure stable sliding in and out of the mold.
Long wear life.
The slide rail and the hot plate are separated to prevent the temperature of the hot plate from dissipating and saving electricity.
2.6. Seals: The cylinder seals use YX-type polyurethane oil seals, which are oil-resistant, aging-resistant and wear-resistant.
2.7. Heat insulation board: The heat insulation board is made of high-quality calcium silicate board, with a pressure resistance of 3.5Mpa and a thermal insulation coefficient of 0.031.
2.8. Hydraulic system: The main hydraulic components are from Taiwan's Qiyang brand, which are easy to purchase and replace, with reasonable layout and easy maintenance and repair.
2.9. Electrical system: The main PLC electrical components of this machine adopt the internationally renowned brand Omron from Japan. The electrical device has small size, compact structure, fatigue resistance, and is adaptable to continuous high-intensity work.
