1530mm Wide Porous Isolation Film Releasing ETFE Film

Product Description

1530mm Wide Porous Isolation Film ETFE Releasing Film
Porous ETFE(Ethylene-tetrafluoroethylene) isolation film is a kind of anti-high temperature film,using European equipment and technologies,through complex manufacturing processes from ram material compounding,film extrusion,punching holes,surface trimming and wrapping.It is a kind of excellent releasing film designed for different laminating applications (composites for the production of hot press cans,vacuum bagging processes.)it has properties like high thermal stability,excellent mechanical properties,excellent yield strength resulting in cured composites with good surface finishes,suitable for all commonly used resin systems.
SPECIFICATIONS:

MODEL:	XGPIF-20
COLOR:	Light blue
THICHNESS:	20μm
DENSITY:	35g/m2
HOLE TYPE:	P3
HOLE DIAMETER:	0.3-0.8mm
WIDTH:	1530mm
ROLL LENGTH:	153m
MAXIMUM THEMPERATURE:	230ºC

P3 HOLES DISTRIBUTION DIAGRAM:
STORAGE:
The porous ETFE isolation film should be kept dry in their original bags and stored in a suitable place,preferably at room temperature with 35-65% relative humidity.Avoid the sun, rain and fire.
PACKAING:

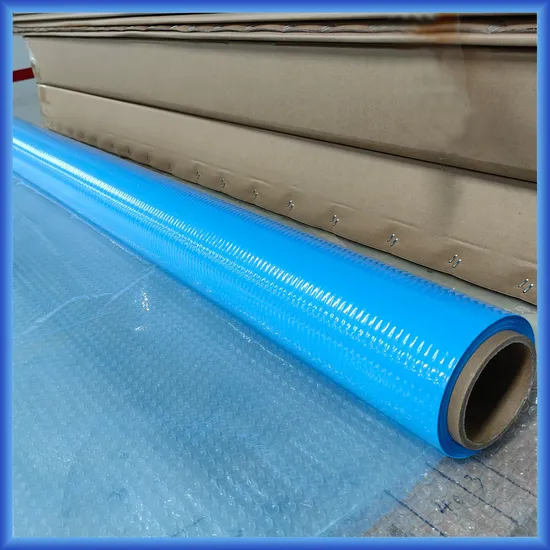

PRODUCT DETAILED IMAGES:
