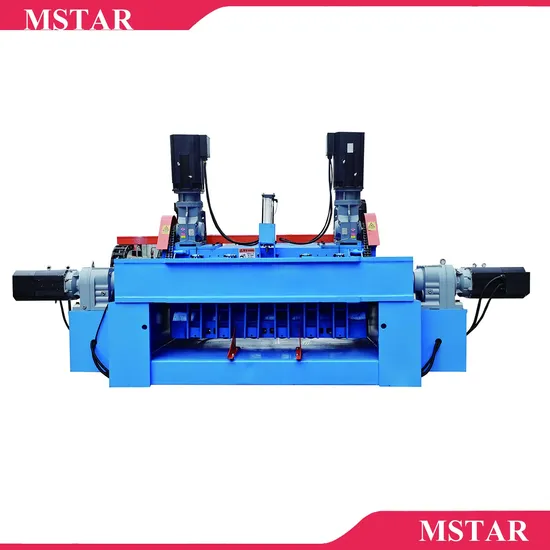

Mstar High Speed 4FT 1500 Size Veneer Peeling Machine Woodworking Machine

Product Description

Company Profile
MSTAR MACHINERY CO., LTD, nestled in the vibrant Linyi city of Shandong, China, stands as a beacon of modern, professional excellence in the realm of woodworking machinery. Specializing in the research, development, production, and distribution of cutting-edge woodworking machines, we have set the industry standard with our innovative solutions. Our flagship products include the high-speed spindleless veneer peeling line, sanding machines, hot presses, saws, and debarkers. Among them, our high-speed automatic veneer peeling line has emerged as the industry benchmark, celebrated for its unparalleled efficiency, energy conservation, time-saving capabilities, and labor-saving benefits.
Through our commitment to providing superior products, impeccable service, and honest sales practices, MSTAR has garnered global acclaim. We earnestly invite you to join hands with us in a fruitful collaboration, as we look forward to achieving new heights together.

Product Parameters

Parameter	Value	Notes
Length of the Roller(mm)	1500
Power of Double Roller(kw)	15kw X 2	AC Servo induction motor
Power of Single Roller(kw)	15kw X 2	AC Servo induction motor
Power of Screw Feed(kw)	11kw	AC Servo induction motor
Power of Rotary Clipper(kw)	2.2kw	AC Servo induction motor
Power of Rubber roller (kw)	2.2kw	AC Servo induction motor
Power of Knock-down roller (kw)	2.2kw	AC Servo induction motor
Total Power(Kw)	75.4kw
Roller Reducer	Helical Gear Box X 4	R87
Screw Feed Reducer	Helical Gear Box X 1	R97
Clipper Reducer	Worm Gear Box X 1	RV90
Rubber Roller Reducer	Worm Gear Box X 1	RV90
Veneer output speed(m/min)	50-120 m/min Adjustable
Blade (mm)	1500*180*16
Screw Diameter(mm)	90mm
Max opening(mm)	500
Minimum Log core	24mm	normal roller:24mm
Thickness(mm)	0.8 - 4.0
Clipper width(mm)	>= 400 mm
Control Unit	Peeling Speed Adjust System Closed loop Servo control	PLC + Touch Screen MD810
Size(mm)	3500*2300*1550 Length()*Width()*Height()
Weight(kg)	7500

Detailed Photos

SINGLE ROLLER: 2*15KW SERVO MOTOR
DOUBLE ROLLER: 2*15KW SERVO MOTOR
CUTTER: 2.2KW SERVO MOTOR
CONVEY:2.2KW SERVO MOTOR

ALL WIRES WILL PASS THE TANK CHAIN, SAFE AND BETTER PROTECTION

AUTOMATIC OIL LUBRICATION
MACHINE BETTER RUNNING AND MAINTAINCE FOR LONG WORKING LIFE
THIS IS THE A B C THREE OIL LINES FOR MACHINE LUBRICATION
A: MACHINE COPPER BUSH
B: MACHINE SCREW AND NUT
C: SAME AS A
MACHINE BODY IS CASTING
STABLE RUNNING AND MORE STRONG
SPECIAL ROLLER TREATMENT TECHNOLOGY, MORE WEAR-RESISTING
WE CAN PROVIDE DIFFERENT ROLLER TYPE FOR CUSTOMERS' REQUIREMENT
THIS TYPE ROLLER MIN LEFT CORE IS 24MM
ON SINGLE ROLLER, THERE ARE DIFFERENT EDGE CUTTING SIZE
MOSTLY SIZE IS 1270MM 970MM
SURELY WE CAN DO CUSTOMER-MADE SIZE FOR DIFFERENT REQUIREMENT
WE USE AIRTAC CYLINDER FOR MACHINE
BETTER HEAT RESISTANT AND 0 FAILURE
MORE STABLE RUNNING AND NO LEAK PROOF


Packaging & Shipping

TEAM & CULTURE

OUR VISION

"Together, we rise."
"United, we conquer."
"Collaboration unlocks potential."
"Teamwork makes the dream work."


Q1:Can you customize products for clients?
A1: Yes .We can customize and produce woodworking machines according to the customer's requirements or drawings.

Q2:What about your products quality?
A2:We can provide you samples for quality inspection. If you order, we guarantee the quality is same with sample. In case of quality problem, we can sign agreements and our company will perform the duties.

Q3:How can we trust your factory?
A3:We recommend that you come to our factory to see the goods,to verify the real situation of the products, and know more about our factory.

Q4:Why does the price often change?
A4:The configuration of motor and control system determines the change of price. Different quality determines different price.

Q5:What about the contract signing?
A5: If you're satisfied with the products and our service, you can sign the contract with us, pay the deposit Then we'll produce the machines as soon as possible. If you are far away, we can sign the contract by fax. We will ensure the quality of the products and the accessories are complete.

Q6: How about delivery?
A: when the product is ready, it can be delivered to you after your full payment. We'll provide technical guidance.
MSTAR COMPANY, is the original and professional manufacturer for plywood production machinery, we can supply you full wood veneer peeling line for the whole plywood .
This spindlelss peeling is very popular in veneer and plywood industry in the world.
We are able to provide you all the best solutions during your plywood production!
WE LOOK FORWARD TO COOPERATE WITH YOU FOR LONG TERM BUSINESS ON MUTUAL BENEFITS!
