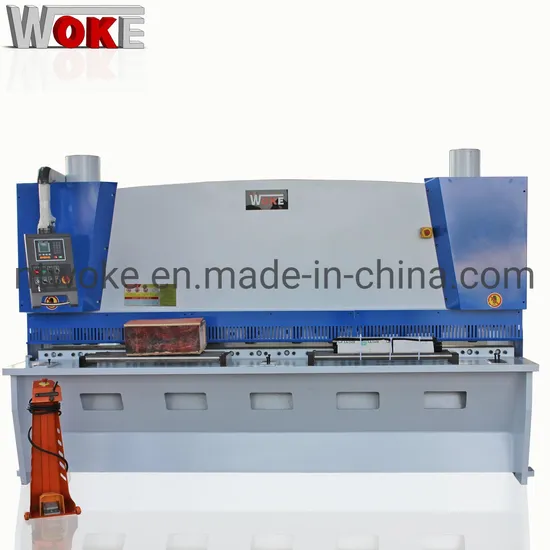

QC12y CNC Hydraulic Cutting Shearing Machine for Sheet Metal
| US$5,000.00-11,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
QC12Y-6X3200
Condition
New
Warranty
2 Years
Main Motor
7.5kw
Control System
Estun E21 Nc
Cutting Thickness
6mm Ss
Cutting Length
3200mm
Precision
High Precision
Hydraulic Valve
Germany Rexroth
Back Gauge
0-600mm
Transport Package
Nude Packing, Steel Pallet
Specification
3800x1750x1650mm
Trademark
WOKE
Origin
Nantong, Jiangsu, China
HS Code
8462399000
Production Capacity
80PCS/Month
Product Description
COMPANY INFORMATION| WOKE manufacturing and selling good quality shearing machine, press brake, bending machine, cutting machine. Main market is Asia, Middle East, European, American. OEM, customers' design, color, size and logo are all accepted. With 15 years professional manufacturer experience. Fast delivery, good quality and competitive price. |
| Product range: Shearing machine, press brake, rolling machine, punch press, cnc cutting machine. |
| Address: Libao Industrial Zone, Hai'an County, Nantong City, Jiangsu China. |
COMPANY FACEBOOK
Hydraulic Guillotine QC11Y-8X3200
NC, CNC system
Shearing machine applicationin industry
| QC12Y shearing machine is widely used for linear cut off sheet metal, it suit for all kinds of material like stainless steel, aluminum, carbon steel, mild steel, iron plate, so on. |
Function advantages
| 1.Come with world famous Estun E21s NC control system, stable performance and easy to operate. 2.Steel welded structure, vibration aging treatment to eliminate internal forces, have high strength and good durability. 3.Advanced integrated hydraulic system, easy for maintenance. 4.The shear stroke and cut times can be controlled. 5.Feeding balls on worktable to reduce the hurt of the plates and reduce conflict force. 6.Manual adjusting of blade clearance and adjustment of gap can be showed on an indicating dial. 7.The blade is of 4 cutting edges, that mean you can change the cutting edge if long time use. 8. Front supprt arms with scale and standard protective guard, meet with internationl safety standard. |
Models and parameters
| Model | Cutting Thickness | Cutting Length | Cutting Angle | Strength | Strokes | Main Power | Weight | Dimension(LXWXH) |
| (mm) | (mm) | (°) | (KN/CM) | (spm) | (kw) | (kg) | (mm) | |
| QC12Y-4X2000 | 4 | 2000 | 1°30' | ≤450 | 20 | 4 | 2900 | 2500x1600x1550 |
| QC12Y-4X2500 | 4 | 2500 | 1°30' | ≤450 | 18 | 4 | 3400 | 3100X1600X1550 |
| QC12Y-4X3200 | 4 | 3200 | 1°30' | ≤450 | 14 | 4 | 5280 | 3800X1700X1650 |
| QC12Y-4X4000 | 4 | 4000 | 1°30' | ≤450 | 10 | 5.5 | 6800 | 4650X1900X1750 |
| QC12Y-4X6000 | 4 | 6000 | 1°30' | ≤450 | 7 | 7.5 | 11000 | 6640X2350X1950 |
| QC12Y-6X1500 | 6 | 1500 | 1°30' | ≤450 | 20 | 7.5 | 2670 | 2000X1760X1650 |
| QC12Y-6X2500 | 6 | 2500 | 1°30' | ≤450 | 17 | 7.5 | 4920 | 3100X1650X1600 |
| QC12Y-6X3200 | 6 | 3200 | 1°30' | ≤450 | 14 | 7.5 | 6400 | 3800X1750X1650 |
| QC12Y-6X4000 | 6 | 4000 | 1°30' | ≤450 | 10 | 7.5 | 8000 | 4650X1850X1750 |
| QC12Y-8X2500 | 8 | 2500 | 1°30' | ≤450 | 14 | 11 | 5890 | 3100X1750X1700 |
| QC12Y-8X3200 | 8 | 3200 | 1°30' | ≤450 | 10 | 11 | 7600 | 3800X1850X1750 |
| QC12Y-8X4000 | 8 | 4000 | 1°30' | ≤450 | 8 | 11 | 8500 | 4600X1900X1800 |
| QC12Y-10X1500 | 10 | 1500 | 1°30' | ≤450 | 20 | 11 | 5300 | 2100X1860X1800 |
| QC12Y-10X2500 | 10 | 2500 | 1°30' | ≤450 | 12 | 11 | 6600 | 3100X1750X1700 |
| QC12Y-10X3200 | 10 | 3200 | 1°30' | ≤450 | 10 | 11 | 7600 | 3800X1850X1750 |
| QC12Y-10X4000 | 10 | 4000 | 1°30' | ≤450 | 8 | 11 | 8800 | 4600X1900X1800 |
| QC12Y-12X1500 | 12 | 1500 | 2°9' | ≤450 | 14 | 15 | 5500 | 2200X2000X1850 |
| QC12Y-12X2500 | 12 | 2500 | 1°50' | ≤450 | 10 | 15 | 7700 | 3200X2000X1850 |
| QC12Y-12X3200 | 12 | 3200 | 1°45' | ≤450 | 10 | 22 | 11000 | 3850X2150X2000 |
| QC12Y-12X4000 | 12 | 4000 | 2° | ≤450 | 7 | 22 | 12000 | 4700X2300X2100 |
| QC12Y-16X1500 | 16 | 1500 | 2°30' | ≤450 | 10 | 22 | 6000 | 2600X1950X1800 |
| QC12Y-16X2500 | 16 | 2500 | 2°9' | ≤450 | 8 | 22 | 10000 | 3200X2150X2050 |
| QC12Y-16X3200 | 16 | 3200 | 2°9' | ≤450 | 7 | 22 | 12000 | 4000X2300X2150 |
| QC12Y-16X4000 | 16 | 4000 | 2°9' | ≤450 | 6 | 22 | 15000 | 4850X2500X2350 |
| QC12Y-20X2500 | 20 | 2500 | 2°30' | ≤450 | 6 | 30 | 17000 | 3450X2350X2200 |
| QC12Y-20X3200 | 20 | 3200 | 2°30' | ≤450 | 5 | 30 | 19000 | 4050X2450X2250 |
| QC12Y-20X4000 | 20 | 4000 | 2°30' | ≤450 | 5 | 30 | 21500 | 4900X2300X2450 |
| QC12Y-25X2500 | 25 | 2500 | 3°7' | ≤450 | 5 | 37 | 17000 | 3450X2500X2350 |
| QC12Y-25X3200 | 25 | 3200 | 3°7' | ≤450 | 5 | 37 | 19000 | 4160X2600X2500 |
| QC12Y-30X2500 | 30 | 2500 | 3°12' | ≤450 | 4 | 45 | 19700 | 3500X2650X2500 |
| QC12Y-30X3200 | 30 | 3200 | 3°12' | ≤450 | 4 | 45 | 21000 | 4350X3050X2800 |
Detailed images
Control system
Estun E21s NC, frequency drive or reducer
E200PS, servo drive
Delem DAC360, CNC
