K5l4 Variable Distance High-Speed Vertical Blow Molding Machine For Production Daily-Use Bottles

Product Description

Product Description

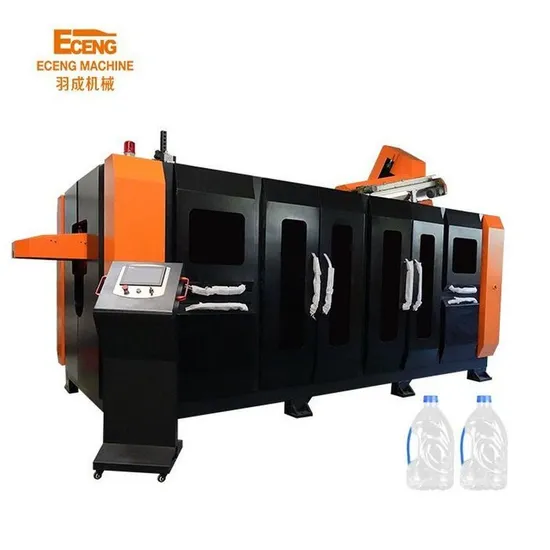

All-Electric Variable Pitch High-Speed Blow Molding Machine
The K series all-electric blow molding machine is developed by Eceng Machinery based on the current internationally advanced rotary blow molding machine technology. It is derived from the mechanical transmission structure that is infinitely close to the rotary blow molding machine. The single-cavity output reaches 3,000 bottles per hour. Compared with the traditional linear blow molding machine, it has simple movements, high mechanical linkage, supports seamless filling machines, can save the rinsing steps, supports Internet remote operation, and helps customers lead the industry.
Product Parameters

SPECIFICATION
Model	K5L4
Bottle type specification	Cavity	4
	Max.volume	3L-5L
	Bottle mouth maximum overall diameter	38-63mm
	Bottle biggest diameter	185mm
	Bottle maximum height	360mm
Capacity specification	Theory output	3500-4000BPH
	Bottle type volume	5000ML
	Bottle type weight	60g
	Bottle type	Round
Power specification	Light tube quantity	32pcs
	Light tube power	2KW
	Maximum heating power	64KW
	All electric machine installation	75KW
	Actual consumption	30%--60%
Air pressure specification	Work pressure	5-6kg/cm2
	Blow bottle pressure	25-45kg/cm2
	Higher -pressure gas consumption	8000Ltr/min
Forzen water specification	Work pressure	5-6 kg/cm2
	Temperature range	10ºC
	Consumption	18000kcal/hr
	Forzen water flow	120L/min
Machine specification	Machine size	7.8*1.95*1.9
	Machine weight	10.6ton

Detailed Photos
ADVANTAGE 1
The company upgrades the main models and integrates internationally advanced servo technology.
ADVANTAGE 2
The new variable pitch design has a number of independent intellectual property rights and patented technologies.
ADVANTAGE 3
Each mechanical action has a safety self-locking device. When a certain process fails, the program will automatically switch to a safe state.
ADVANTAGE 4
Each action unit is driven by an independent servo motor, does not require complex hardware, has no road damage or leakage problems, and runs quickly and smoothly.
ADVANTAGE 5
High precision, stable, and energy-saving king. Efficiency, energy saving, noise, life, stability, and other aspects are outstanding, and the bottle scrap rate is less than 0.2%.

FAQ
Q1: Are you a factory or trading company?
A1: We are a factory.
Q2: Where is your factory located?
A2: Our factory, near Shanghai & Ningbo port, is located in Zhangjiagang, Jiangsu.

Q3: How about quality control in your factory?
A3: " Quality is the key point, do what customers need"
Eceng Machinery Factory focuses on quality, and quality control from beginning to end. Every piece of goods is tested strictly before packing and delivery.

Q4: How about guarantee?
A4: One-year guarantee.

Q5: Do you provide bottle blow mold and air compressor?
A5: Yes, we provide a complete system and you will not need to find a suitable air compressor chiller...etc.

Q6: What is the language of the PLC and touch panel?
A6: Don't worry, we will translate the language into English, Spanish, or any other language, to make sure you will have an easy operation.
