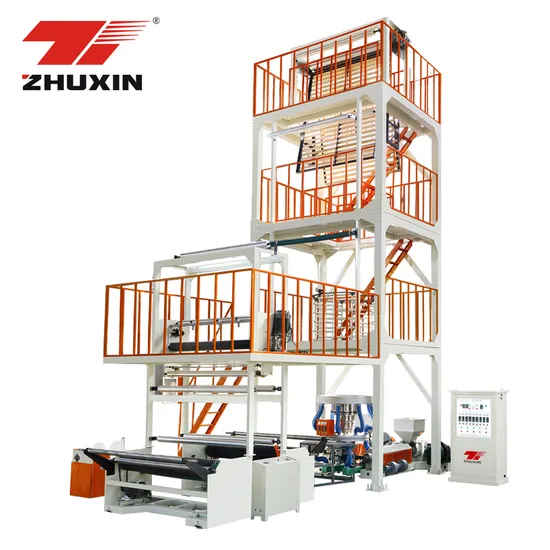

ABA Double-Layer Co-Extrusion Rotary Die Head Blown Film Machinery Two 2 Layer LDPE HDPE Plastic Film Blowing Extruder Machine Price

Product Description

2SJ Double-layer Co-extrusion Rotary Machine-head Film Blowing Machine We are Film Blowing Machine manufacturer/supplier from china factory. We also can produce the Film Blowing Machine according to the client's requirement.
We are always try our best to become the good Film Blowing Machine manufacturer/Supplier and welcome the customer from all over the world to contact with us. PRODUCT INFORMATION Categories: Film Blowing Machine Brand: Zhuxin Paper bag machine, film blowing machine Model: 2SJ-50/55/60 FOB port: Ningbo sea port Terms of Payment: L/C, Western Union, T/T Comments: It with single rolling friction, lift up and down which is suitable for industrial film and agricultural film.

Model		2SJ-50		2SJ-55		2SJ-60
Suitable material		HDPE,LDPE,LLDPE
Reduced diameter of film (mm)		600-1200		800-1500		1000-1800
Film thickness of (mm)		0.03-0.2
Max.output(kg/h)		80		120		160
Extruder
Screw diameter		50*2		55*2		60*2
Screw L/D		28:1/30:1
Screw material		Sacm-645/38 crmoala
Cylinder material		Sacm-645/38 crmoala
Cylinder cooling(w)		370*2		550*2		550*2
Main motor(kw)		15/18.5/15		18.5/22/18.5		22/30/22
Cylinder temperature control		3		3		4
Average power consume (kw)		55		68		90
Type of die
Die size(mm)		200/250	250/350		300/400
Temperature control		3	3		3
Air ring		1	1		1
Air blower power (kw)		5.5	7.5		11
Center steady stick		1	1		1
Take up unit
Roller width(mm)	160*1100		165*1600		180*2000
Take-up speed(m/min)	10-65		10-65		10-65
Take-up motor(2.2)	1.5		1.5		1.5
Winding Unit
Type	Surface friction type
Winding motor(N.m)	10		10		10
Winding speed(m/min)	10-65		10-65		10-65
Voltage	380V,50HZ,3PHASE
Outline diameter(mm)	6500*5500*5500		7500*5800*7500		2500*6400*8000
Optional equipment	1.Auto loader 2. Film surface treater 3. Rotary die head 4. Air compressor 5. Mechanics screen changer 6. Double wind

PERFORMANCE AND CHARACTERISTICS The machine body is channel steel frame traction frequency friction, with single rolling friction, lift up and down which is suitable for blowing high-low pressure polyethylene industrial fiml and agricultural film.
Company Profile
WORKSHOP
OUR CERTIFICATES
TRADE EXHIBITION
SERVICE
FAQ
1.Q:Are you a factory or trading company ?
A:We are a factory

2.Q:Where is your factory located ?How can I visit there ?
A:Our factory is located in Ruian City , Zhejiang Province ,China
About 40 minutes by plane from shanghai (5 hours by train )

3.Q:How is your after-sales service ?
A:We have been in this printing machine line of business for more than many years ,
We will send our professional engineer to install and test machine .So our after-sales service is always reliable.

4.Q:If your machines can print ?
A :Our machines is multifunction , do roll to roll printing , such as paper, plastic film , woven bag , nonwoven .
Surely , you can offer your products, Let us confirm it .We will suggest you the best project.

5 .Q:How does your factory do regarding the quality control ?
A:We are the technical factory, we put more time on the quality control.
Question: Are you Manufacture or Trading Company?
Answer:We are printing machines manufacturer nearly 10years, we had established our own trading company to expand our foreign market business, and provided our customer better service.
Question: Where is your factory located? How can I visit there?
Answer: Our factory is located in Wenzhou City, Zhejiang province, China. The nearest air port is Wenzhou airport, we can go Wenzhou airport pick you.

6.Q: How does your factory do regarding quality control?
Answer: Most our machine mechanical parts are processed by ourselves. So we can better control our quality from beginning. Electrical Part we had cooperated with good foreign brand, such as ABB, Yaskawa, Siemens, Airtac, NSK, Delta, Panasonic etc. And all our machine will do running test before shipping.

7.Q:Do you company provided foreign country machine installation services?
Answer: We have strong service team can provided all the machines buy from our company foreign country installation service and engineer training service. But buyer need provided the ticket, food, hotel cost etc.

8.Q: How your company provided after sales service?
Answer: All the machines buy from our company guarantee is one year (except any human mistake occurred) each machines we will give some spare parts free when shipping machines. Within guarantee machine parts damage, we will send to you free by express asap. If customer required engineer go to solve problem is possible.

WELCOME YOUR INQUIRY ,PLEASE CONTACT HOLIDAY
We have been working hard to become your Purchasing Guide and provide you one-stop Purchasing service. We looking forward hear you soon.
