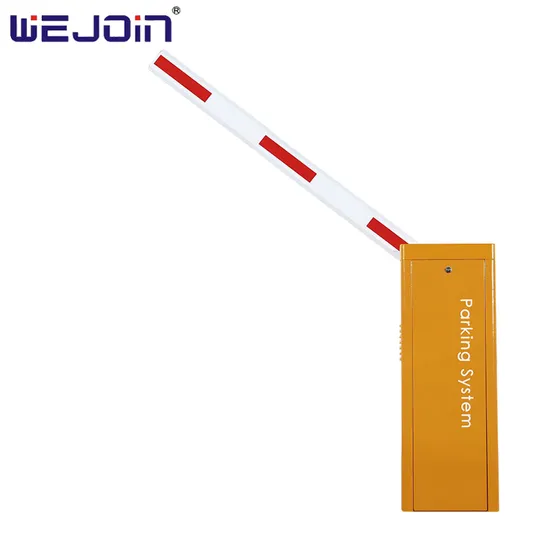

CE Approved Vehicle Access Control Automatic Barrier Gate

Product Description

Product Description
Product Introduction Suitable for indoor as well as outdoor parking area Parking lots, toll gate, goods yard, railway crossing, commercial premises, apartment block access shopping malls, hospitals, stadiums, business centers,etc.
Production Series

Model No.	Open/Close Speed	Max Boom Length	Boom Type
WJDZ801J-13	3 seconds	4.5m	straight boom
WJDZ801J-16	6 seconds	6m	straight boom
WJDZ801J-23	3 seconds	3m	90 degree, Articulated boom
WJDZ801J-26	6 seconds	5m	90 degree, Articulated boom
WJDZ801J-33	3 seconds	3m	180 degree, Articulated boom
WJDZ801J-36	6 seconds	5m	180 degree, Articulated boom
WJDZ801J-46	6 seconds	4m	Two-level, fence boom
WJDZ801J-56	6 seconds	3.5m	Three-level, fence boom

Technical Specification

Working Temperature	-35ºC~+60ºC
Voltage	220V±10%, 110V±10%, 50/60HZ
Rated power	200W
Relative humidity	≤90%
Remote control distance	≥30m
Net weight	42kgs
Arm Speed	3s, 6s
Max boom length	6 meters

Functions & Features
1). Wheel manual release. In case of power off, rotate the wheel manual release on the bottom of the motor to raise the boom manually. When power on, the motor will work normally
2). Machine core with strong and double springs, make the machine core works more steadily
3). Die-casting aluminum alloy motor, precise and good at thermal radiation
4). Crank and rod structure makes the boom run placidly
5). Double safety limit switches (photo electricity limit switch and motor memory sensor)
6). Reversing on obstacle
7). Auto-closing
8). Support the infrared photocell for antibumping function (optional)
9). Support external and internal vehicle loop detector (optional)
10). Traffic light interface (AC220V, can support lamp with 40W)
11). Wire control (switch signal)/Remote control (418MHZ)
12). Rs485 Communication module (optional)
13). Open, close control interface for parking system
14). Provide limit state signal to parking system
[ COMPANY INFORMATION ]
SHENZHEN WEJOIN WECHANICAL & ELECTRICAL CO., LTD.
Shenzhen Weijoin Mechanical&Electrical Co. was founded in 2004. It is the first national high-tech enterprise speciallized in research and development, manufacturing and sales of intelligent access control products in China. As one of the Brand Business Enterprises of Guangdong province, WEJOIN so far is also one of the largest manufacturers in access control and management product. Its main products include automatic barrier gate, tripod turnstile, flap barrier, swing barrier, etc.
[ WEJOIN MANUFACTURING TECHNIQUE ]
[ FAQ ]
Q1: What is your main products?
A: Its main products include automatic barrier gate, tripod turnstile, flap barrier, swing barrier, etc.
Q2: Are you manufacturer? Do you provide ODM / OEM service?
A: Yes, we are manufacturer. WEJOIN provide professional cudtomized serice for global clients.
Q3: I would like to ask if this is with RFID card reader and controller?
A: Yes, there is a controller, our barrier gate can connect with RFID card reader.
Q4: What boom types of your barrier gate?
A: We have 1s with 3m barrier arm, 3s with 4.5m barrier arm, 6s with 6m barrier arm ,etc
Q5: What is your MOQ?
A: Any quantity is acceptable.
Q6: How much is 1 set ? Can provide product details? How fast and how much it would cost to ship this item?
A: Please send your inquiry, then we will send you the price and details in time.
Q7: How about payment option?
A: 30% by T/T, 70% by T/T before delivery.
Q8: Do you have a model that can be used outdoors without further shelter?
A: Yes, It can be used outdoor without shelter. But product life will be longer with shelter.
Q9: How much warranty time do you have?
A: Whithin one years, if any problems, we will offer the accessories.
