Datang Welding Direct Manufacture End Face Milling Machine
| Negotiable | 1 set (MOQ) |
Basic Info.
Model NO.
DX
Type
Face Milling Machine
Object
Sheet
Structure
Gantry
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Standard
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
Precision
Certification
CE, ISO 9001
Condition
New
End-Face Machining Rage(mm)
1200*1500
Horizontal Milling Speed(mm/Min)
50-440
Vertical Milling Speed (mm/Min)
22-550
Milling Head Size
Tx32A
Suitable Milling Facer Diameter(mm)
125-360
Color
Blue
Delivery Time
Timely
Current
Standard
Voltage
as Per Customers′ Requirements
Product Name
China Manufacturer Dx1215 Face Milling Machine
Transport Package
Wooden /Container/as Per Customers′ Requirements
Specification
CE, ISO
Trademark
Datang
Origin
Jiangsu, China
HS Code
84688000
Production Capacity
50 Sets Per Month
Product Description

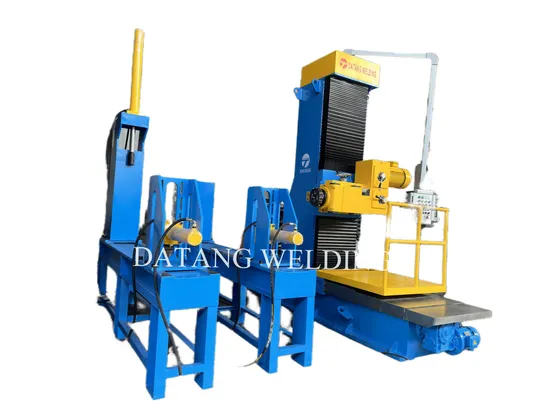

China Manufacturer Face Milling Machine
The face milling machine consists of milling and cutting head,elevator column,work table,lathe bed,mechanical feeding system
,electrical control system,rail protection device,tools,etc.
This machine is used yo mill the end face of Box-beam and H-beam,and the degree of milling head can be adjusted manually
in vertical direction to bevel the end face.The hydraulic support rack for choice can fix the beam and is open top,which is easy
for hoisting.
Main technical parameter
| Model | DX-0810 | DX-0812 | DX-1212 | DX-1215 | DX-1520 | DX-2020 | DX-2025 | DX-2040 | DX-3060 |
End-face Machining rage(mm) | 800*1000 | 800*1000 | 1200*1200 | 1200*1500 | 1500*2000 | 2000*2000 | 2000*2500 | 2000*4000 | 3000*6000 |
Horizontal milling speed(mm/min) | 50-440 | 50-440 | 50-500 | ||||||
Vertical milling speed (mm/min) | 22-550 | 22-550 | 22-600 | ||||||
Milling angle(°) | 0-45 | ||||||||
Milling head specifications | TX25A | TX32A | TX40A | TX50A | |||||
cutter rotational speed(rpm) | 125-1420 | 125-1440 | 1440 | 1460 | |||||
Applicable cutter diameter(mm) | 100-160 | 125-250 | 160-320 | 200-400 | |||||
