100-1000kg/H PVC Powder Making Machine/ PVC Pulverizer/Plastic Miller Machine

Product Description

100-1000kg/h PVC Powder Making Machine/ PVC Pulverizer/Plastic Miller Machine
Applications:
One of the main fields of use for the PNMF plastic milling machine is the pulverization of PVC regrind in pipe and profile recycling. Working in line with a shredder and granulator to have a balanced and efficient system to handle in house production waste. Another application is the grinding of PE for Rotomolding applications, here the PM Pulverizer is used in the production process to create the powder needed in the process. In this process, a screening machine is necessary to ensure the right output size, distribution, and flow properties of the ground material.
General description:

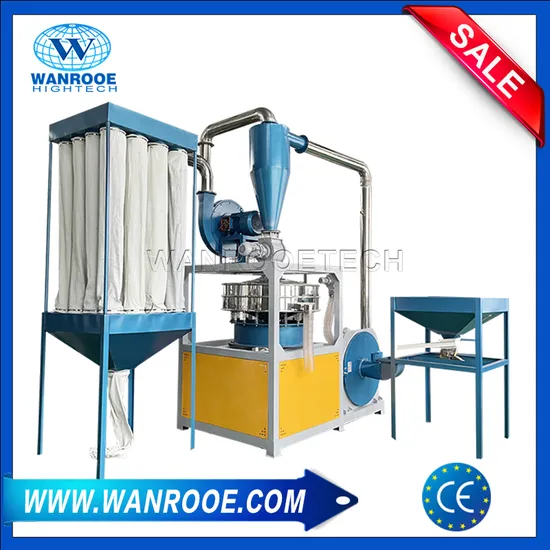

The disc grinding machine pulverizer machine of the PNMF series is available with a disc diameter from 300 to 800 mm. These plastic pulverizer machines are high speed, precision grinders for the processing of medium-hard, impact resistant, and friable materials. The material to be pulverized is introduced through the center of a vertically fixed grinding disc which is mounted concentrically with an identical high speed rotating disc. Centrifugal force carries the material through the grinding area and the resulting powder is collected with a blower and cyclone system. Depending on the application the machines can be equipped with one-piece grinding discs or grinding segments.
The output of our PNMP pulverizer can reach 100-900kg/h (15-100mesh).
Components:
Technical Features:
1. PNMP Pulverizer can easy to grind all kinds of Hard & Soft PVC into powder.
2. The dust collector is added to effectively reduce dust pollution.
3. The discharging of the main fan reduces labors intensity of operating workers.
4. The door cover of the host can be opened for the convenience of maintenance and replacement of cutters.
5. The mill uses the water and wind double cooling system, Prevent bearing, and other parts from overheating.
6. The powder mesh is adjustable(15-100mesh).
7. Easy installation and maintenance, just open the door to clean up.
8. Well-known brand accessories, such as Siemens motors, can work for a long time, saving the trouble of changing accessories frequently.
9. With a wide range of optional accessories, professional solutions can be developed based on the customer's budget and processing requirements.
Technical Parameters:

Model	PNMP-500	PNMP-600	PNMP-800	PNMP-1000
Grinding Disc Diameter(mm)	500	600	800	1000
Main Motor Power(kw)	37-45	45-55	75-90	9-110
Vibrating Sieve Power(kw)	0.75	0.75	0.75	1.1
Capacity(kg/h)	100-300	200-500	300-800	400-900
Dimension L*W*H(mm)	3500x1300x3700	3700x1450x3700	4300x1700x4000	5000x2000x4300

Customer Feedback:
Our Service
1. One year guarantee for whole machine
2.24 hours technical support
3. Our engineers can provide service overseas. The service is free, but the charge of round air-tickets, food and hotel is to the customer's account.
4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.
5. We also can provide training service which help operators handle the machine well.
