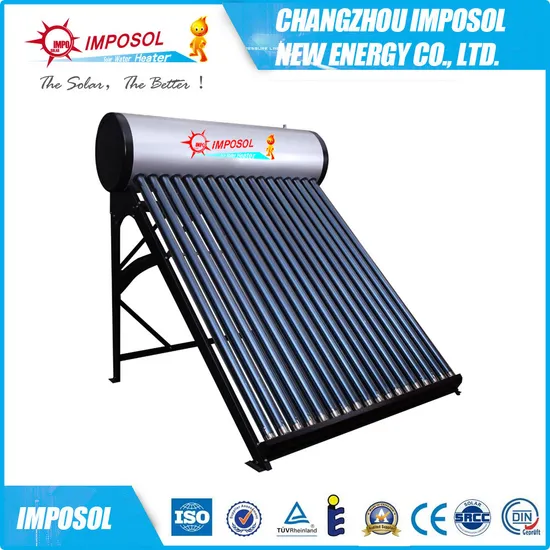

Low Pressure Solar Collector Solar Water Heater

Product Description

Low pressure solar collector solar water heater

Model	Light Area(M2)	Vacuum Tube			Capacity (Liters)	20GP/40HQ Loading Qty
		Ø(mm)	L(mm)	NO.
IPJG 100 GS	1.4	58	1800	10	100	71/172
IPJG 150 GS	2.1	58	1800	15	150	52/125
IPJG 200 GS	2.8	58	1800	20	200	39/96
IPJG 250 GS	3.5	58	1800	25	250	33/80
IPJG 300 GS	4.2	58	1800	30	300	28/68
IPJG 400 GS	5.6	58	1800	40	400	21/52
IPJG 80 GS	1.12	58	1800	8	80	80/194
IPJG 120 GS	1.68	58	1800	12	120	62/150
IPJG 160 GS	2.24	58	1800	16	160	48/116
IPJG 180 GS	2.52	58	1800	18	180	43/105
IPJG 240 GS	3.36	58	1800	24	240	34/82
IPJG 360 GS	5.04	58	1800	36	360	23/57

Technical Specifications :
Inner Tank : SUS304-2B food-grade stainless steel - 0.4mm thickness , laser welding technology .
Vacuum Tube : High efficient ALN/ALN-SS/CU coating , 58 x 1800mm vacuum tube - 1.6mm thickness , resist 25mm hail .
Outer Tank : Painted galvanized steel - 0.4mm thickness , free-welding technology .
Insulation Layer : High density polyurethane - 50mm thickness , 72 hours efficient thermal insulation .
Frame support : Painted galvanized steel - 1.5mm thickness , anti-corrosive and anti-ultraviolet .
M8 Stainless steel SUS 304 bolts and nuts .
58mm Silicone seal ring and dust ring
Stainless steel SUS304 - 2.0mm thickness 3/4' or 1/2' inlet, outlet, air vent

Optional accessories :
Aluminum component reflectors
Electrical heater
Magnesium anode rod
Assistant tank - Cold water filling tank
Solar Controller
Company information
Changzhou Imposol New Energy CO.ltd is top ten in china for exportation.With more and more customers from Europe ,Australia,Africa and Asia,so on.
As OEM factory,we have high performmance and resonable price,we believe that we are turning the world greener day by day.
Our product is mainly solar water heater ,solar collectors ,vacuum tube and so on.
