Full Color Indoor Outdoor LED Display Screen for Advertising Rental Billboard Display Screen China Price P10 P6 P5 P4 P3 Foldable 3D Mobile Sign Video Wall

Product Description

We focus on all kinds of led display screen manufacturing included indoor outdoor led display, rental led display, flexible led display, transparent led display, dance floor led series, HD resolution led display, perimeter led display, stadium sport led display screen, led sign, led display board and led billboard.
Part 1: Product Mainly Features
P3 P4 P6.67 P10 Full Color Indoor Outdoor Front Service LED Display Screen for advertising is very hot sale for outdoor media solution series, it is very cost effective, and high refresh rate more than 1920hz , also light weight design cabinet for options, image quality is top, running stable, resolution is high density, plus simple installation to make this series more and more popular in indoor outdoor media screens.

Pixel Pitch	3mm to 20mm
Brightness	> 6000nits
Cabinet Size	960x960mm | 1280x1280mm(optional)
Max. Power Consumption	720W/panel
LED Brand	NS
Driver IC	MBI
PSU	MW
Refresh Rate	> 1920HZ

Locks system:

Part 2: Product Detail Images

Part 3: Material Quality Level
All of our Product materials we choose all top quality levels, including the SMD, IC components, also the PCB, screws, PSU brands etc, so that during the led screen using, it helps to cut down after sale serive costs, to make sure led display screen stable and less aftersale services.

Part 4: Technical Specification

Item	Outdoor front service back service led display screen
Model Number	P3 to P20
Pixel Pitch	3mm-20mm
Pixel Density	2500 -111111 pixels/M2
Pixel Configuration	SMD 3 IN 1
LED Type	NS, SMD
Module size	320x320mm (options)
Module Resolution	32*32 (options)
Min.Viewing Distance	3-50 m
Brightness	>6000 nits
Average Power Consumption	400 W/M2
Scan Mode	Constant current
Protection Level	IP65/IP54
Cabinet Size	960x960mm / 960x640mm / 960x1280mm / 1280x960mm
Color Temperature	The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements
Input Voltage	AC110-240V, 50Hz/60Hz
Refresh Rate	>1920Hz
Color	65535 Levels
Horizontal/Vertical viewing angle	<140°
Gray Scale	16 bits
Effective Communication Distance(without relay)	<100 meters
Lifespan	≥100,000 hours
Environment Temperature	Storage: -40°C~+85°C , Operation: -20 °C~+45°C
Blind Spot Rate	<0.0001(led display industry standard is less than 0.0003)
Control Mode	Video frequency synchronization

Part 5: Installation methods, outdoor front service back service LED Display screen fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.
Part 6: Packing information by plywood cases, packing well and easy to load
Part 7: Certificates
ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.
Part 8: About LEDventure

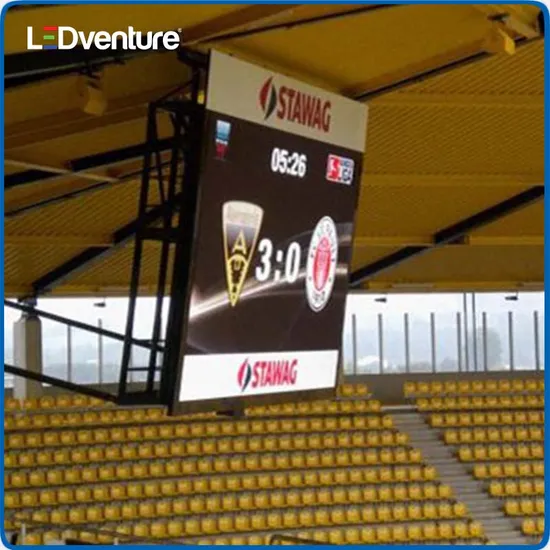

Part 9: LED Display Screen Installation Cases
Most of our led display exported to Europe with high standards, and small percent to USA and Asia
