Used Coil Electric Decoiler Machine
| US$1,100.00-2,500.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
8 tons
Voltage
380V
Automatic Grade
Electric
Principle
Uncoiler
Certification
ISO9001, CE, SGS
Warranty
12 Months
Customized
Customized
Condition
New
Name
Used Coil Electric Decoiler Machine
Power(W)
3kw
Bearing Weight
7 Tons
Inner Diameter
550-610
Style
Electrical
Coil Width
1250mm
Raw Material
PPGI,PPGL,Gi,Gl
Max Outer Coil Diameter
1000mm
Bearing
6312
Chain
31.75mm
Dia of Shaft
95mm
Main Frame
160mm Channel Steel to Weld
Transport Package
Used Coil Electric Decoiler Machine Nude
Specification
7 tons
Trademark
Haixing
Origin
China
HS Code
7326909000
Production Capacity
20000 Sets/Year
Packaging & Delivery
Package Size
750.00cm * 150.00cm * 180.00cm
Package Gross Weight
5000.000kg
Product Description
Used coil electric decoiler machineUsed coil electric decoiler machine features:
1. Types available: electric decoiler,mandrel decoiler
2. Adopts hydraulic expand/loosen and hydraulic driving system
3. Easy to operate
4. Suitable for pre-painted coil,cold rolled coil, and galvanized coil
Used coil electric decoiler machine system
Usage: It is used to support the steel coil and uncoil it in a turntable way.
Passive uncoil pulled by roll forming system
Technical parameters of Used coil electric decoiler machine
1. Main frame : 160mm Channel Steel to weld
2. Dia of shaft : 95mm
3. Power of motor : 3kw
5. Chain : 31.75mm
6. Bearing : 6312
7. Appearance size : (Length)1840mmX(Width)1000mmX(Height)1200mm
8. To support and uncoil the steel coil
9. Tenses the coil by Electric power, it is convenient for the workers to operate
10. The inner coil diameter : φ450-550mm
11. Max outer coil diameter : φ1000mm
12. The max capacity : 7T

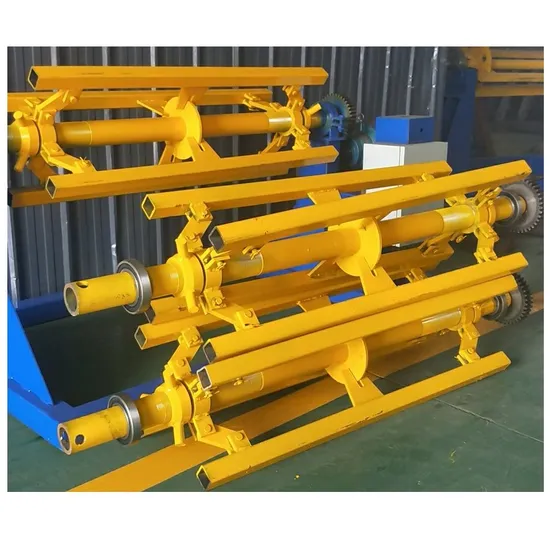

Used coil electric decoiler machine reference picture:
Other machines:
| 1 | Different types roof profile drawing forming machine |
| 2 | Curve roof roll forming machine |
| 3 | Ridge cap roll forming machine |
| 4 | Floor deck roll forming machine |
| 5 | Rain gutter roll forming machine |
| 6 | Down pipe roll forming machine |
| 7 | Highway guardrail roll forming machine |
| 8 | Roller shutter door forming machine |
| 9 | Door frame roll forming machine |
| 10 | CZU purlin roll forming machine |
| 11 | Light keel roll forming machine |
| 12 | Slitting machine (lines) |
| 13 | Shearing/bending machine |
| 14 | Decoiler(Hydraulic decoiler ,electric decoiler and manual decoils) |
