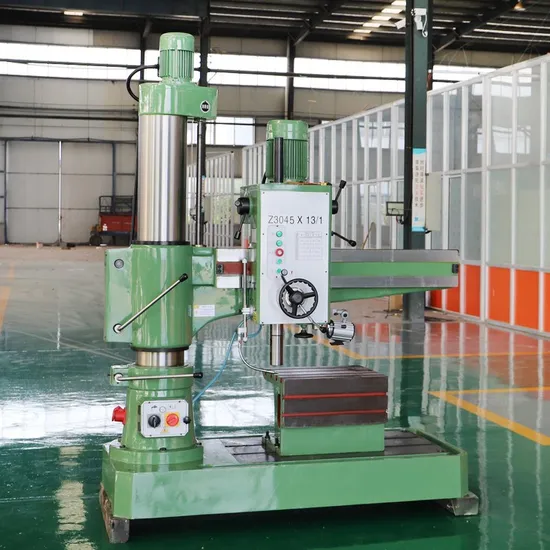

Z3045X13 Double Column Radial Drilling Machine Automatic Feed Radial Drill

Product Description

Product Description

Specifications	Z3045 ×13	Z3050 ×16
Max.drilling diameter (mm)	45	50
Distance from end of spindle to worktable (mm)	260-1150	260-1150
Distance from spindle center to column busbar (mm)	360-1300	360-1600
Spindle travel (mm)	270	220
Spinlde taper	4	5
Spindle speed range (rpm)	32-1200 (12-Speed Variable speed)	32-1200 (12-Speed Variable speed)
Spindle feed range (mm/r)	0.10-0.25	0.10-0.56
Rotation angle of rocker arm ( °)	360°	360°
Main motor power (kw)	2.2	4
Lift motor power (kw)	1.5	1.5
Weight (kg)	2000	3000
overall dimension(mm)	2053*820*2483	2170*950*2450

Radial drilling machine can also be used as cross drills. The spindle box can move left and right
on the rocker arm and rotate ±180° with the rocker arm column. The rocker arm can also be
raised and lowered along the outer column to adapt to processing different workpieces. The
radial drilling machine has a wide range of processing and can be used to drill screw holes,
threaded holes and oil holes of large workpieces. Suitable for boilers, bridges, rolling stock,
shipbuilding, machinery industry, and other industries. The radial drilling machine is mainly
composed of a base, an inner column, an outer column, a rocker arm, a headstock and a worktable.
FAQ
Q1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact
model .You can also send us the products drawing ,we will choose the most suitable machines for you .
Q2: Where is our factory located? How can I visit there?
A : Our factory is located in No. 988, Xingteng East Road, Economic and Technological Development Zone,
Tengzhou City, Shandong Province, China.
Q3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
Q4: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Before we delivery the
machine, we will send machine photo and video for you to confirm.
Q5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
Q6.the warranty?
The warranty is one year. If the machine have any problem due to our reason, we will send spare parts for
you within 48 hours.
