Tool Milling Machine Um400b Universal Milling Machine for Sale
| US$13,000.00-18,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
UM400B
Type
Tool Milling Machine
Object
Tool
Structure
Lifts
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Program Control
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Table Size Horizontal
400X800mm
Table Size Vertical
250X950 mm
Transport Package
Wood Case
Specification
CE ISO900 rohs
Trademark
L & T
Origin
Tengzhou China
HS Code
84595900
Production Capacity
100 PC/Month
Product Description

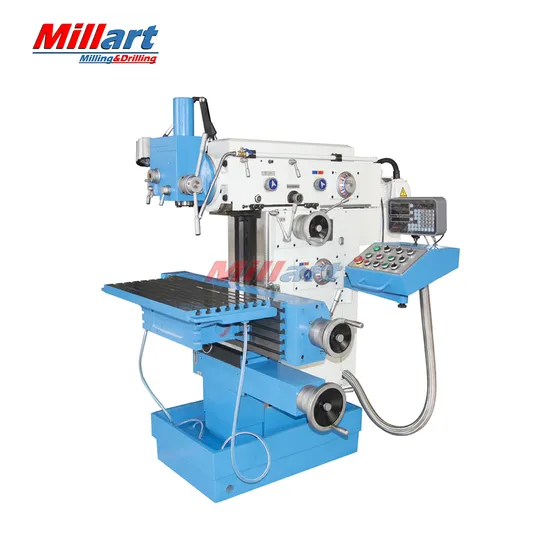

Tool Milling Machine UM400B Universal Milling Machine For SaleFeature:
This machine is designed to be a middle-sized Universal Tool Milling Machine, can perform procedures such as milling, boring, drilling, and slotting, etc, and is suitable for machining cutter, fixture, die and mould, and other components with complex figuration. With the aid of various special attachments, it can machine all kinds of components such as spiral, arc, gear, rack, spline, and so on.
1. Original structure, broad versatility, high accuracy, easy to operate.
2. With various attachments to extend range of application and raise utilization.
3. Model XS8140A: with Programmable digital display system, resolving power is up to 0.01mm.
Technical parameter:
| Model | UM400B | |
| Table | Horizontal table size | 400*800mm |
| Vertical table size | 250*950mm | |
| Travel X,Y,Z axis | 500/350/400 | |
| Universal table | Horizontal swivel | ±360° |
| Vertical swivel | ±30° | |
| Front and back swivel | ±30° | |
| Vertical mill head | Spindle travel | 60mm |
| Spindle swivel | ±90° | |
| Horizontal spindle | Taper | ISO 40 |
| Spindle line to ground | 1330mm | |
| Min distance from spindle line to table | 35mm | |
| Vertical spindle | Taper | ISO 40 |
| Min distance from spindle nose to table | 5mm | |
| Spindle speed (Vertical and horizontal) | 18steps 40-2000RPM | |
| Feed rate | 18steps 10-500mm/min | |
| Vertical spindle feed rate | 3steps 0.03-0.12mm/rev | |
| Main motor and feed motor power | 3KW/1.5KW | |
| Work table max load and tools max load | 400KG/500KG | |
| Dimensions | 182*164*171CM | |
| Net weight | 2200KG | |
Standard accessories:
| Complete tools -with the machine 1 set |
| Milling cutter arbors and washers 1 set each |
| Reducing sleeves 1pcs each |
| Spring collets and collet chuck 2/3/4/5/6/8/10/12mm 1pcs each |
| Universal angular table |
Optional accessories:
| F11-125A Dividing head |
| QH125 Vice |
| TSL250 Rotary table |
| QH160 Vice |
| TSL320 Rotary table |
| 3 Axis DRO |
| Ball lead screw |
