Automatic Spiral Paper Tube Making Machine for Composite Cans

Product Description

Description:

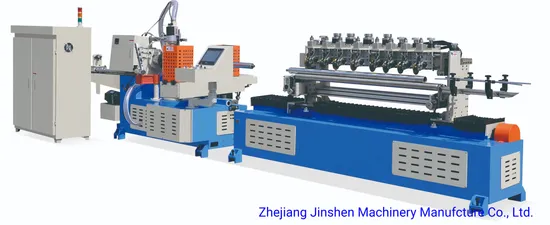

"E" Series of paper tube machine,Designing idea simple,compact,stable.Standard for making paper tube 3''(ID76.2MM),Max wall thickness<3mm,biggest tube ID can up to 120mm.Mainly used for making small size and short tube.can cut into many sections at a time.Model can make paper tube with gluing,winding,cutting together.
Usage:
Used for composite packaging can,small packaging material winding core,office use paper core
Features:
1.With multi-blade cutting system,can cutting into final length,no need to re-cut.
2.Main structure made by thick steels which are finished by processing of re-cutting and welding,make machine much more stable and strong
3.Main transmission adopt gear reducer,low-noise,low-heating,high revolution,high torque.
4.Main motor adopt Vector high torque inverter speed adjusting.
5,Equipped with hydraumatic device to adjust belt tension,with belt tension sensor and belt angle sensor,both can be adjusted automatically.
6.Equipped with synchronous cutting system,cutting table adopt high precision ball screw and high performance server motor drive.
7.Equipped pulse length fixation control,cooperated with front feedback compensation function.
8.Adopt double PLC control system,IO output control and functional operation separate control,to increase cutting reaction speed,with better cutting accuracy.
9.With new control panel and big size colorful main machine touching interface.
10.With multi functional bottom paper feeding device,will stop once paper break.
11,With integral paper reel stand,glue stand,paper feeding assembly,all are electrical control.
12.Design of modularization electric layout makes use,maintaining and repairing more convenient and scientific,
13.With mould assistant installing device.
14.Network module connect machine for remote monitoring and maintaining.
15.Heat sealing device and color detector can be chosen
16.Tension control can be chosen.
Machine Specification:

Model	Multi-blades paper tube machine PT23-P2120M
Parameter		Control system
Number of layer	3-8layers	PLC Controller	Delta
Max-diameter	120mm	Man Machine interface	Weinview 6070T colorful touching screen
Min-diameter	20mm	Program edition	JS-PTM4.2
Max-thickness	3mm	Inverter	Yaskawa 7.5kw
Min-thickness	0.8mm	Actuator(Contactor)	CHNT
Mandrel fixing way	Flange&tightening	Signal component	Yaskawa
Rewind nose	Two noses one belt	Pneumatic component	AIRTAC
Cutting way	8 blades	Angle adjusting motor	JIACHENG
Gluing way	Single side/double sides	Synchronism control	Axis servo screw
Fixing length way	Encoder	Synchronism track cutting system	Servo tracking system synchronous
Operator	1-2 person	Outfit assemble
Production speed	3-20m/min	Auto falling tube holder	Have
Speed control	Inverter	Belt angle	Electrical
Input power	380v,3ph	Belt adjust	Hydraulic
Size(mm)		Angle of main motor	Have
Mainframe:L*W*H	6300*1700*2000mm	Stop when paper run out	Bottom ply stop automatically
Area:L*W	16000*7000mm	Auto glue giving	Diaphragm pump
Wheel hub diameter	215mm	Tension adjust	Can choose
Wheel hub height	400mm	Type of paper stand	Integral
Min tread	750mm	Belt	Sailcloth
Max tread	950mm	Aluminum foil heat sealing device	Can choose
Total weight	4200kgs	Color detect device	Can choose
Drive System		Enclosed component
Mainframe power	7.5KW	Air compressor	Can choose
Max rotating speed of wheel hub	47r/min	Useful tool	1set
Wheel hub Output torque	1360N.M	Belt	1set
Chain type	12A*2	Mandrel	1set
Wheel hub type	2 Wheels	Blade	8pcs
