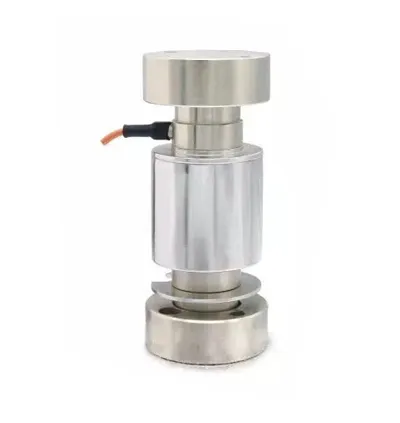

Weighbridge Load Cell Truck Scale Load Cell Weighing Sensor
Basic Info.
Model NO.
CM
Out-Wire
4-Wire
Output Signal Type
Switching Type
Feature
Capacity: 10t--50t
Production Process
Material: Alloy Steel
Material
Hzgh
IP Rating
IP67
Certification
OIML
Customized
Customized
OIML
Laod Cell
CE
Load Cell
Weighing
Weiging Load Cell
Used
Truck Scales
Transport Package
Package
Specification
OIML CLASS
Trademark
HZGH
Origin
China
HS Code
84239000
Production Capacity
5000PCS
Product Description
| Technical Parameter | |
| Rated Load | 10t,20t,25t,30t,40t |
| Sensitivity | 2.0000±0.001mV/V |
| Total Error | ±0.02%F.S |
| Creep(30minutes) | ±0.02%F.S |
| Recommended Excitation Voltage | 5V~18V(AC or DC) |
| Maximum Excitation Voltage | 24V(AC or DC) |
| Zero Balance | ±1%F.S |
| Input Impedance | 380±5Ω |
| Output Impedance | 350±2Ω |
| Insulation Impedance | ≥5000MΩ |
| Safe Overload | 150%F.S |
| Ultimate Overload | 200%F.S |
| Operating Temperature Range | (-30~+70)ºC |
| Compensated Temperature Range | (-20~+60)ºC |
| Temperature Effect On Load | ±0.02%F.S/10ºC |
| Temperature Effect On Zero | ±0.02%F.S/10ºC |
| Construction | Alloy Steel |
| Protection Class | IP67&IP68 |
| Citation | GB/T7551-2008/OIML R60 |
| Mode of Connection | Input+:Red Input-:Black Output+:Green Output-:White |
*Name: weighing bridge load cell
*modl: CM
*Capacity:10t to 40t.
| Technical Parameter | |
| Rated Load | 10t,20t,25t,30t,40t |
| Sensitivity | 2.0000±0.001mV/V |
| Total Error | ±0.02%F.S |
| Creep(30minutes) | ±0.02%F.S |
| Recommended Excitation Voltage | 5V~18V(AC or DC) |
| Maximum Excitation Voltage | 24V(AC or DC) |
| Zero Balance | ±1%F.S |
| Input Impedance | 380±5Ω |
| Output Impedance | 350±2Ω |
| Insulation Impedance | ≥5000MΩ |
| Safe Overload | 150%F.S |
| Ultimate Overload | 200%F.S |
| Operating Temperature Range | (-30~+70)ºC |
| Compensated Temperature Range | (-20~+60)ºC |
| Temperature Effect On Load | ±0.02%F.S/10ºC |
| Temperature Effect On Zero | ±0.02%F.S/10ºC |
| Construction | Alloy Steel |
| Protection Class | IP67&IP68 |
| Citation | GB/T7551-2008/OIML R60 |
| Mode of Connection | Input+:Red Input-:Black Output+:Green |
