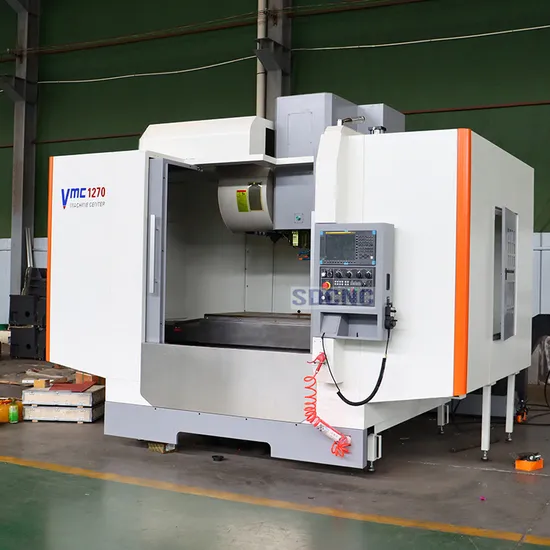

Vmc1270 Vertical Machining Center for Precision CNC Metal Processing
| US$32,000.00-35,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
VMC1270
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Point to Point Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Performance Classification
Economical CNC Machine Tools
Certification
GS, CE, ISO 9001
Condition
New
Main Motor Power
15kw
Spindle Speed Range
8000rpm
Three-Axis Travel (X*Y*Z)
1200X700X700
Tools Type
Arm
Transport Package
Wood Packaging
Specification
3600*3000*2700
Trademark
SDCNC
Origin
Shandong China
Packaging & Delivery
Package Size
3600.00cm * 3000.00cm * 2700.00cm
Package Gross Weight
10000.000kg
Product Description
Features:
High quality resin sand Taiwan spindle Taiwan ball screw and locking nut Taiwan pressure cylinder Japanese NSK bearing germany R+W coupling Automatic lubrication system Chip conveyor at optional Application: This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough
machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc. Product Parameters
Product main technical parameters:
| specifications | unit | VMC1270 |
| Table size | mm | 1400x710 |
| Table maximum load | kg | 1000 |
| X/Y/Z axis travel | mm | 1200x700x650 |
| Distance between spindle center and column surface | mm | 785 |
| Distance between spindle end face and worktable surface | mm | 150-800 |
| X/Y/Z max. feed speed | mm/min | 10000 |
| X/Y/Z max.rapid traverse | m/min | 15/15/15 |
| Max. spindle speed | r/min | 8000 |
| Spindle taper | BT50 | |
| Spindle motor | kw | 11/15 |
| X/Y/Z axis servo motor | kw | 4/4/4 |
| X/Y/Z motor connection | direct | |
| X/Y/Z guide rail form | hard rail | |
| T slot(number-width-pitch) | 5-18-152.5 | |
| Repeat positioning accuracy | mm | ±0.004 |
| Tools type | arm | |
| Tool magazine capacity | arm:24 | |
| Max.tool weight | kg | 15 |
| Max. tool length | mm | 350 |
| Electric capacity | KVA | 22 |
| Machine dimension | mm | 3600*3000*2700 |
| Machine weight | kg | 10000 |
