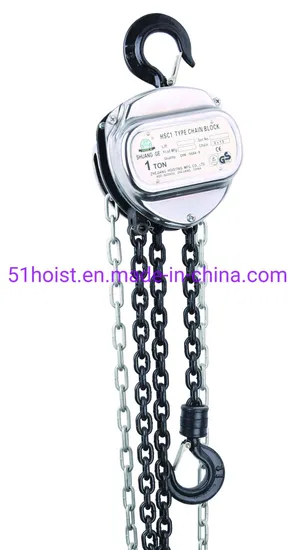

HS-C Type Hand Chain Hoist Low Headroom with Chrome Surface Treatment

Product Description

HS-C Chain Block (Shuang Ge Brand) produced by 51 hoist
Specifications:
Capacity: 0.5T-20TAutomatic Double-pawl braking system; Double-cover protection; thick friction discs; safety latches.Grade 80 load chain-made by wafios machine; Safe factor 4:1.More than 3 rounds inspections before export out, everyone will be inspected before delivery.Excellent quality, top in China, always the leader.Largest and best chain machine produce group in China, which imported from Wafios Germany and Italy. Excellent after-sale serve, market agent support and protection.Sample order and trail order are acceptable.Accept OEM, more than 20 years OEM experience for world brand company.

Model	Capacity (t)	Standard lift(m)	Running test load(T)	Headroom (mm)	Load chain		Effort required to lift max load(N)	Main Dimensions(mm)				Packing measurement (cm)	Extra weight per meter of extra lift(kg)	Gross weight (kg)	Net weight (kg)
					Columns	Dia (mm)		A	B	C	D
HS-C0.5	0.5	2.5	0.75	255	1	6	221	125	111	24	134	28x21x17	1.7	10	8
HS-C1	1	2.5	1.5	306	1	6	304	147	126	28	154	30x24x18	1.7	13	10
HS-C1.5	1.5	2.5	2.25	368	1	8	343	183	141	34	192	34x29x20	2.3	20	16
HS-C2	2	2.5	3	444	2	6	314	147	126	34	154	33x25x19	2.5	17	14
HS-C3	3	3	4.5	486	2	8	343	183	141	38	192	38x30x20	3.7	28	24
HS-C5	5	3	6.25	616	2	10	383	215	163	48	224	45x35x24	5.3	45	36
HS-C8	8	3	10	700	3	10	392	356	162	64	210	62x50x28	7.3	83	68
HS-C10	10	3	12.5	700	4	10	392	360	163	64	224	62x50x28	9.7	83	68
HS-C16	16	3	20	820	6	10	392	400	196	69	210	68x60x34	14.1	127	112
HS-C20	20	3	25	1000	8	10	392	585	191	82	224	70x45x75	19.4	194	156
HS-C30	30	3	37.5	1500	12	10	475	705	485	75	85	100x99x90	29	520	400

Features:
Detailed description:

1.How about sample policy?

Welcome sample order. Please inform your detailed sample requirement, such as the quantity, the capacity, the chain, the lift and so on. If we have the sample in stock , the ship will be quicker. If we don't have stock, please understand to wait for the produce. Express fee is charged by the shipping company. The sample fee and express fee usually paid by client, for special policy need to apply by client and approved by our leaders.

2.Which shipping way is available?
By sea to your nearest port
By air to your nearest airport
By express (DHL,UPS,FEDEX,TNT,EMS) to your door
When your order shipping out .we will provide you a tracking no in express or B/L. then you can know clearly the status of the goods

3.Which payment way is workable?
30% T/T at advance, 70% T/T by copy of B/L (first times)
100% L/C at sight(long cooperation )

4. Packing: Wooden case or carton with pallet

51 hoist (Shuang Ge brand and Peace Bird brand) is the Top light hoist manufacturer in China. Established in 1972. We have more then40 years experience indeveloping and producing. We have more than 20 years in OEM.
Shuang Ge and Peace Bird are our exclusive brands. They enjoyed high reputation in domestic and oversea market.
The finished goods should be gone through more than 3 rounds inspections before export out.
Each kind of material should be tested by inspection lab.
OEM orders and Customer`s logo are acceptable. If you have any idea for makeup, just tell us.

We will produce according to your requirements. Welcome to join us !
