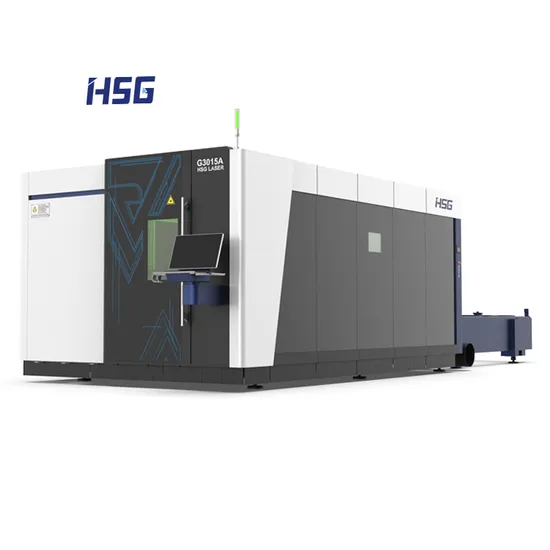

Hsg Laser Big Discount CNC Fiber Laser Cutters Metal Cutting Machine for Cutting Carbon Steel / Stainless Steel / Metal Sheet / Plate

Product Description

4000W Metal Fiber Laser Cutting Machine for Stainless Steel Carbon Steel Sheet CNC Machine with Raycus/Ipg with Perfect Service MODEL FEATURES Cutting table size options: 3000x1500mm, 4000x1500mm, 6000x1500mm, 4000x2000mm, 6000x2000mm
1. Alpha T Bus CNC System
2.HSG-NEST Nesting Software
3.Double Exchange Platforms
4.Extruded Aluminum Beam
* Machine appearance, technical parameters, function description, data comparison shown in this page are from HSG in-house laboratory. All testing results and experimental data shall be subject to real machine.
Applications primarily suited for sheet metal processing,such as various metal products processing industries,agricultural machinery industry ,automobiles, aircraft and ships,electrical equipment,lighting advertising industry,elevator manufacturing,kitchen electrical appliances and so on.
Detailed Photos
Carbon Steel Welded Machine Bed
The machine bed has 500Mpa tensile strength and receives lonnealing and vibration aging to remove its stress.
Its rear floorstand has the reinforced loading points, making thick sheet cutting possible.
Double Exchange Platforms, Taper Pins Positioning
The double platforms are driven by 16A wide chains and positioned by taper pins. The entire exchange process is shown on PLC touch screen.
The exchange-driven motor is front-placed to leave enough space for loading & unloading and protect metal plate casing from collision.
Extruded Aluminum Beam
The aluminum alloy is adopted. Our beam is designed as honeycomb anti-compression structure and made by using extrusion molding process.
< Alpha T Bus CNC System >

Alpha T can make data transmission via a network cable.
Easy to operate even by green hands
Match with 2000+ process data on its graphical programming interface
Compatible with multiple files, incl. DXF, DWG, PLT and NC code
Micro-connection cutting
Active obstacle avoidance
Real-time monitoring of core components
Active reminder of machine maintenance
HSG-NEST nesting software
* Bus refers to data transmission mode via on-site bus control system.

Product Parameters

Technical Parameters	GA IV
Power	1500-6600W		3000-8000W	6000-12000W
Processing Format (L*W)	3000	4000	6000	6000	8000*2500mm
	*1500mm	*2000mm	*2000mm	*2500mm
X/Y-axis Positioning Accuracy
	±0.03mm/m
X/Y-axis Repositioning Accuracy
	±0.03mm
No-load Speed	140m/min		120m/min
Acceleration	1.5G				1.0G
Loading Weight of Platforms	800kg	1000kg	1800kg	2300kg	3200kg
Overall Dimensions (L*W*H)	8850*2950*2250mm	10300*3460*2250mm	15420*3460*2250mm	15500*3960*2250mm	19800*4010*2250mm

Relatedlaser sheet cutting machine, high power fiber laser, fiber laser cutting system , Metal laser cutting machine, industrial machinery's outfit, cut laser

Sample Cutting Display
Certifications
Full Cover Enclosed Sheets Plates Engraving Equipment Aluminum Plates Exchange Table CNC Router Metal Fiber Laser Cutting Machine
Packaging & Shipping
After Sales Service
HSG Customer Service Policy
The HSG customer service team is currently equipped with more than 200 professional employees, including pre-sale services, in-sale services, after-sales service, customer training and other professional teams, from technical process consulting, visits and sample inspection, customer site inspection planning and installation debugging , customer personnel training, equipment maintenance and repair, etc., provide 7*24 hours a full range of rapid response services.
Putting The Customer First
30 Minutes Quick Response
24/7 Online Service
