M1420 High Quality Universal Cylindrical Grinder Grinding Machine
Basic Info.
Model NO.
M1420
Type
External Grinding Machine
Processing Object
Metal
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Precision Universal Cylindrical Grinding Machine
Model
M1420X500
Grinding Diameter
8-200mm
Grinding Type
Cylindrical Grinding Machine
Grinding Length
500mm
Delivery Time
2 Month
Warranty Time
12 Months
Voltage
380V
Max.Workpiece Weight
50 Kgs
Function
External and Internal Cylindrical Grinder
Center Height
135mm
Internal Grinding Diameters
13-100mm
Headstock Spindle Rotation Speed
Stepless Speed 25-380 R/Min
Internal Wheel Spindle Rotating-Speed
10000rpm
Color
OEM
Transport Package
Wooden Case
Trademark
BETA
Origin
Shandong, China
HS Code
8460291100
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
200.00cm * 200.00cm * 200.00cm
Package Gross Weight
2500.000kg
Product Description

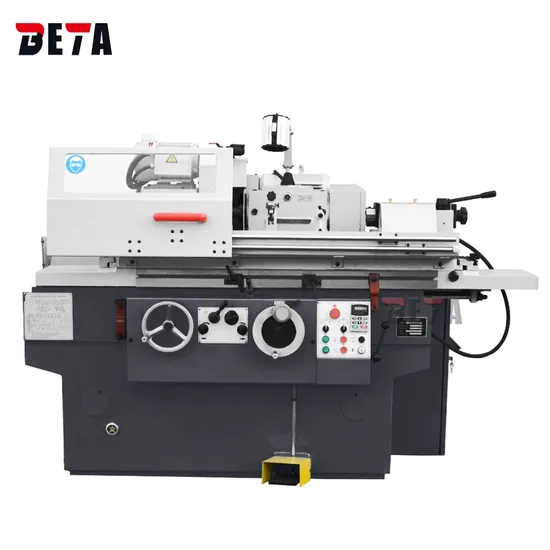

M1420 High Quality Universal Cylindrical Grinder Grinding Machine
| Description | unit | M1420x500 | M1420x800 |
| External grinding diameters | mm | φ8~200 | φ8~200 |
| Internal grinding diameters | mm | φ13~100 | φ13~100 |
| Center height | mm | 135 | 135 |
| Headstock spindle rotation speed | r/min | 50HZ:25~380stepless | |
| Max. worktable traverse | mm | 650 | 950 |
| Hydraulic travel speed | m/min | 0.1~4 | 0.1~4 |
| Max.workpiece weight | kg | 50 | 50 |
| Grinding length External/Internal | mm | 500/125 | 800/125 |
| Swivel range of worktable | ° | -5~+9° | -3~+7° |
| Max.wheel peripheral speed | m/s | 38 | 38 |
| External wheel size | mm | Max.φ400x50xφ203 Minφ280x50xφ203 | |
| Internal wheel spindle rotating-speed | r/min | 10000 | 10000 |
| Headstock and tailstock center | morse | NO.4 | NO.4 |
| Total motor power | kw | 5.625 | 5.625 |
| Machine overall dimension(LxWxH) | mm | 2200x1600x1700 | 3100x1600x1700 |
| Machine weight | kg | 2500 | 3000 |
| Working Accuracy | |||
| Roundness(O.D/I.D) | 1.5/2.5μm(O.D/I.D) | ||
| Uniformity of dia.in longitudinal section(O.D/I.D) | 5/8μm(O.D/I.D) | ||
| Surface roughness(O.D/I.D) | Ra0.32/0.63μm(O.D/I.D) | ||
Features: 1.Table can be tilted for conical grinding operations and scale allows adjustment to desired position
2.Spindle stock can be swiveled 180° for inside grinding operations
3.Main spindle is mounted hydro-dynamically - oil film prevents contact between spindle and bearing
4.Longitudinal table guide and grinding spindle stock cross guide feature V- and flat guiding each
5.Strong reinforcements and generously designed walls make the machine base resistant to temperature fluctuations and deformations
6.Oil film between spindle and bearing reduces the vibrations to a minimum to achieve top results and high accuracy
7.Stepless feed adjustment with selective programmable stop at end of each table movement
8.Precisely adjusted spindle head and solid grinding spindle stock to achieve top processing results at various grinding operations
