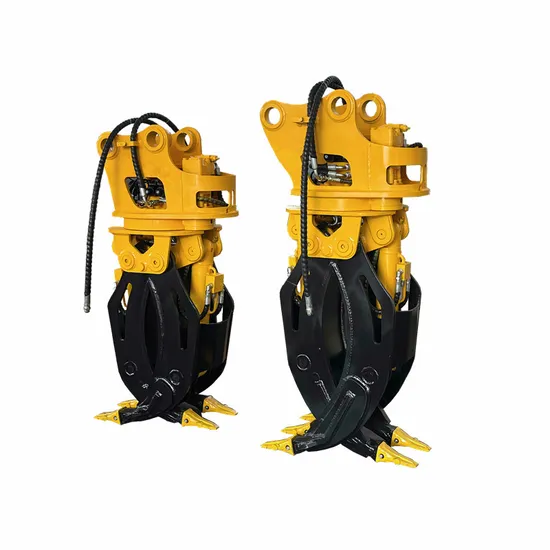

CE-Approved Hydraulic Rock Grab for Excavator Hydraulic Log Grapple

Product Description

Name: CE-Approved Hydrauilc Rock Grab for Excavator Hydraulic Rotating Log grapple

Mechanical Log grapple parameter
Item	HM70	HM120	HM200	HM300	HM400	HM450
Material	Q345B	Q345B	Q345B	Q345B	Q345B	Q345B
Weight(kg)	340	680	1100	1400	1950	2200
Max Opening mm	1200	1300	1600	2300	2800	3200
Max closed area(M2)	0.23	0.43	0.871	1.2	1.83	2.51
Max height(mm)	1290	1640	1890	2130	2370	2630
Max closed gap(mm)	190	290	360	450	520	630
Suitable Excavator (ton)	6~9	10~15	16~24	25~30	31~36	37~45

.Company Introduction Homie Hydraulic Machinery Equipment Co., Ltd. is a professional manufacture that supplies various of excavator attachments. The mainly products contain steel grapple, wood grapple, vibration compactor, hydraulic shear, Pile hammer, quick hitch, orange peel grapple, excavator and dismantled machines, etc. Hydraulic Log grapple product Homie series mechanical log grapple have features of toughness and durability which are designed for demolition, landscaping, timber handling and moving bulk materials such as rocks, logs and general scrap materials.
Manufactured using resistance casting steel , are designed complete with stiff arm, dipper bracket and replaceable bushes.
Hydraulic wood grabber and steel gripper features
1. Five tine configuration, two on the front and 3 on the back
2. The tines close through each other in a finger configuration
4. By using the two foremost tines on a hinged centre point to realize the function.
5. Using Q345B/NM400 good material for a long life service.
6. Without additional circuitry or hydraulics part , only use the excavator link arm and cylinder to move.
7. Stay arm and weld on bracket are supplied with the grapple. Our Services 1. 24Hours all day kindly service on line
2. Top quality with affordable price
3. Professional technician team to solve all kinds problem
4. Accept OEM Service available
5. Up to 12 months warranty period Product show
