Ckmine 1000W Modified Sine Wave Inverter DC 12V to AC 220V off Grid Power Converter ODM OEM

Product Description

Product Parameters

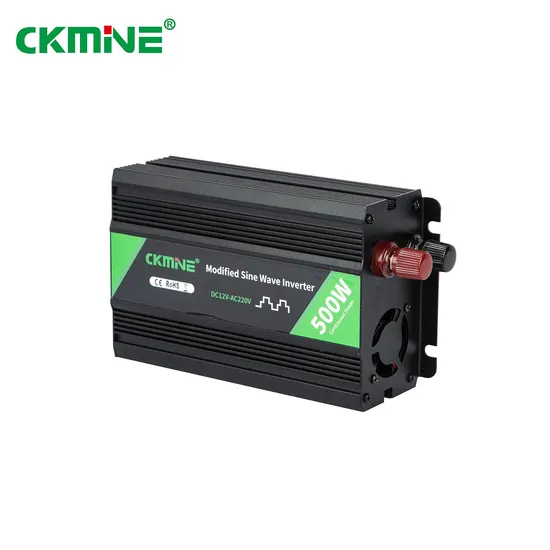

Modified Sine Wave Inverter

Model NO.	CVM-300W	CVM-500W	CVM-1000W	CVM-1500W	CVM-2000W	CVM-3000W
Rated power	300W	500W	1000W	1500W	2000W	3000W
Peak power	600W	1000W	2000W	3000W	4000W	6000W
Input voltage range	DC12V/DC24V/DC48V
Output voltage	100V/110V/120V/220V/230V/240V
No-load current	DC12V:≤0.35A		DC12V:≤0.5A
	DC24V:≤0.15A		DC24V:≤0.3A
	DC48V:≤0.1A		DC48V:≤0.2A
Output frequency	50Hz±2Hz or 60Hz±2Hz
Conversion efficiency	DC12V:88%,DC24V:90%,DC48V:92%
Built-in Fuse	YES
Protection	Undervoltage/Over-voltage/Overload/Over-temperature/Short circuit protection
Overvoltage protection range	DC12V:≥16V,DC24V:≥30V,DC48V:≥60V
Undervoltage protection range	DC12V:≤9.5V,DC24V:≤20V,DC48V:≤40V
Over-temperature protection	≥80ºC
Cooling Method	Intelligent fan cooling
Working Temperature	10-50ºC

Pure Sine Wave Inverter

Model NO.	CVP-300W	CVP-500W	CVP-1000W	CVP-1500W	CVP-2000W	CVP-3000W	CVP-4000W	CVP-5000W
Rated power	300W	500W	1000W	1500W	2000W	3000W	4000W	5000W
Peak power	600W	1000W	2000W	3000W	4000W	6000W	8000W	10000W
Input voltage range	DC12V/DC24V/DC48V
Output voltage	100V/110V/120V/220V/230V/240V
No-load current	DC12V:≤0.35A	DC12V:≤0.6A		DC12V:≤0.8A	DC12V:≤0.9A	DC12V:≤1A		DC12V:≤1.2A
	DC24V:≤0.15A	DC24V:≤0.3A		DC24V:≤0.4A	DC24V:≤0.55A	DC24V:≤0.7A		DC24V:≤0.8A
	DC48V:≤0.1A	DC48V:≤0.2A		DC48V:≤0.2A	DC48V:≤0.3A	DC48V:≤0.4A		DC48V:≤0.5A
Output frequency	50Hz±2Hz or 60Hz±2Hz
Conversion efficiency	DC12V:88%,DC24V:90%,DC48V:92%			DC12V:90%,DC24V:92%,DC48V:95%
Display	/			LED/LCD DISPLAY
Built-in Fuse	YES
Protection	Undervoltage/Over-voltage/Overload/Over-temperature/Short circuit protection
Overvoltage protection range	DC12V:≥16V,DC24V:≥30V,DC48V:≥60V
Undervoltage protection range	DC12V:≤9.5V,DC24V:≤20V,DC48V:≤40V
Over-temperature protection	≥80ºC
Cooling Method	Intelligent fan cooling
Working Temperature	10-50ºC

Product Description
Company Profile
Certifications
FAQ
FAQ Q1: Is the output voltage of our inverter stable ?
A: Absolutely. Our inverter is designed with a good regulator circuit. You can even check it when measuring the true value by a multimeter. Q2: What should be noticed when installing inverter?
A: Put the product in a place where is well ventilate,cool, dry and water-proof. Do not stress or put foreign objects into the inverter. Remember to turn on the inverter before turn on the appliance. Q3: Can I get some samples for test? A: Yes, sample order is available for quality check and market test . Q4: Do you accept OEM/ODM ? A:Yes, we accept OEM/ODM with your authorization. Q5: How is delivery time? A: Generally it takes 5-10 days for regular type , for big quantity or OEM/ODM orders, pls negotiate with sales. Q6: What's your payment terms? A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash. Q7: What's your warranty time? A: We offer 18 months warranty service, life time technique support. Q8: How does your factory do the quality control? A: Quality is our culture. We have strict quality control department to supervise each link from assembling to shipping. Q9: How can I trust you ? A: CKMINE has 16 years' experience in producing inverters, we have passed ISO9001 management system and got CE, CCC certificates. Assessment reports can be sent anytime if you require.
