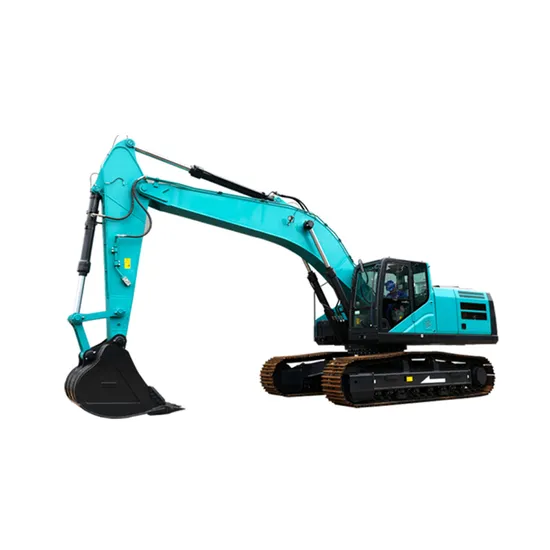

Grab Shovel Hydraulic Transmission Hf Naked Packaging Digger Mini Crawler Excavator
Basic Info.
Model NO.
HFE335F
Usage
Special Excavator
Bucket
Grab Shovel
Transmission
Hydraulic Transmission
Drive Type
Electric Drive
Bucket Capacity
1.0~1.5m³
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Swing Speed
11.42rpm
Walking Speed
5.8/3.6km/H
Power
210/1900kw/Rpm
Maximum Torque
1080/1500n·m/Rpm
Transport Package
Naked Packaging
Specification
4860*3190*3490 mm
Trademark
HF
Origin
China
Production Capacity
50000pieces/Year
Product Description
Features 210kW high-power reserve engine, power upgrade; 220KN shovel digging force, easy to control under heavy load conditions.
1. New shape
The new generation of family-style F series has a new appearance, the whole machine is majestic and powerful, and more mine elements are added to the shape design, which is beautiful and powerful.
2. Benefit priority
High-efficiency, large-displacement hydraulic system configuration, plus 2.9m short pole and 1.7m³ large capacity hyperbolic reinforced blade, to achieve the perfect ratio of working devices according to the working conditions, high efficiency and energy saving.
3. Reliable and durable
The heavy-duty working device is supported by 36t-level die forgings; the 36t-level chassis system doubles the reliable and durable bearing capacity of the four wheels.
4. Comfortable operation and convenient maintenance
A new generation of cab, interior upgrades, electrical upgrades, improved sealing.
| Specification | Unit | Parameter |
| Machine working weight | t | 32.8 |
| Shovel Capacity | m³ | 1.7 |
| Power | kW/rpm | 210/1900 |
| Maximum torque | N·m/rpm | 1080/1500 |
| Displacement | L | 7.79 |
| System pressure | Mpa | 34.3 |
| Pilot pressure | Mpa | 3.9 |
| Swing speed | rpm | 11.42 |
| Walking speed | km/h | 5.8/3.6 |
| Climbing ability | ° | 35 |
| Fuel tank capacity | L | 520 |
| Maximum digging height | mm | 10330 |
| Maximum unloading height | mm | 7280 |
| Maximum digging depth | mm | 7010 |
| Excavation depth (2.44m level) | mm | 6840 |
| Boom length | mm | 6150 |
| Total length | mm | 10716 |
| Total height | mm | 3490 |
| Total width | mm | 3190 |
| Track length | mm | 4860 |
| Track width | mm | 3190 |
| Track shoe width | mm | 600 |
