OEM 6000W Laser Cutter Machinery Fiber Laser Cutting Machine for Carbon Steel Metal

Product Description

Oem 6000w Laser Cutter Machinery Fiber Laser Cutting Machine for Carbon Steel Metal

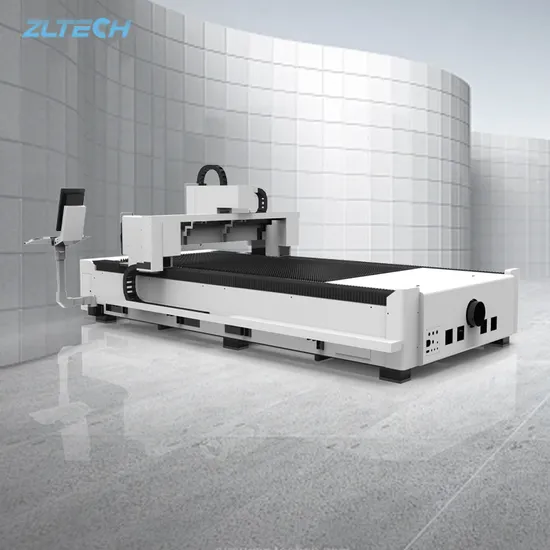

ZL-3015A is a single-platform laser metal cutting machine, suitable for cutting various metal plates and simple rectangular tubes.
Fiber Laser cutting machine can cut stainless steel, carbon steel, aluminum, alloy steel, silicon steel, titanium alloy, brass, galvanized sheets and other metal materials. It is widely used in automobile manufacturing, elevator manufacturing, hardware, railway accessories, sheet metal processing, kitchen cabinet processing, aerospace and other manufacturing industries.

Parameters
Model	ZL-3015A
Cutting Area	3000mm*1500mm
Laser Power	1000w/1500w/2000w/3000w/6000w/12000w/15000w/20000w
Cutting Material	Metal
Laser Source Brand	Max / Raycus / IPG / JPT
Water Chiller Brand	Hanli / S&A / DVT
Servo Motor Brand	Japan Fuji
Position Accuracy	±0.02mm
Repeatability Accuracy	±0.02mm
Graphic Format Supported	AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Acceleration	0.8G/1.0G/1.5G/2.0G/4.0G
Certificate	CE/ISO/FDA
Customized	OEM/ODM
Voltage	3 phase 380v 50HZ / 60HZ (customized)
Installation Instruction	Yes.Instructions and videos.

Machine Part Details

Aviation Cast Aluminum Alloy Beam
-Machine adopts aviation cast aluminum beam, which is manufactured according to the aerospace standards and extruded with 4300 tons pressure.
-The beam is processed by T6 heat treatment which can make the beam obtain the highest strength and strong deformation resistance.
Strong & Stable Welded Bed
-The bed is welded with big thickness square tubes, which has stiffeners inside to increase the structure strength and tensile strength.
-With high temperature annealing and natural aging, the welding stress is eliminated, which can prevent the deformation of the bed, reduce vibration and guarantee a good cutting accuracy.
Auto Focus Laser Cutting Head
-Laser head with Built-in motor drive unit has automatic focus function, which can adjust the focus automatically according to the software setting, no need to adjust it by hand.
-It can shorten the perforation time, improve the perforation quality and cutting speed. It's simple, convenient and fast.
MAX Brand Laser Source
-It can be quickly and conveniently integrated into machine tool equipment and large-scale factory automation production line.
-Excellent material processing performance, high speed in thin sheet cutting and trong capability in thick material processing.
Water Chiller
-Specially designed for fiber laser equipment and compatible with various brands of lasers.
-A full range of environmentally friendly refrigerants, worry-free exports.
-Stable and reliable performance, low failure rate and energy saving.
-After many experimental tests so the quality is guaranteed.
Automatic Oil Filling System for Lead Screw and Rack
-There is no need to manually refill oil regularly, ensuring the normal operation of the machine, protecting machine accessories and saving costs.
High-quality Nail Bed and Knife Strip
-When performing cutting tasks, due to the high energy of the laser, the blades and nail beds will be melted and damaged over time. Therefore, ZLTECH Laser increased the thickness of the blades and nail beds during production to extend their service life.
Japanese Fuji Servo Motors and Drivers
-It has the advantages of high precision, good high-speed performance, fast response time and high reliability. Cutting Sample Display
Materials :
Fiber Laser Cutting machine can cut many metal materials, such as stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized plate, aluminized zinc plate, pickling plate, copper, silver, gold, titanium and other metal plates and pipes.
Industries :
Fiber Laser Cutting Machine can be applied to various industries, such as sheet metal processing, such as sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway accessories, automobiles, grain machinery, textile machinery,engineering machinery, precision accessories, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising, metal external processing, kitchenware processing, etc.Cutting Thickness:
Different laser generator can help us to cut different thickness.
Please tell us your materials, size and thickness, then we will recommend you suitable model and power.
Packaging & Shipping
Company Profile
ZLTECH laser is a R&D, manufacturing and sales enterprise who dedicated to providing global users with fiber laser industrial intelligent equipment and personalized customized design services.
The company's main products include metal fiber laser cutting machine, handheld laser welding machine and handeheld laser cleaning machine.To provide customers with tailor-made services to meet different work needs, ZLTECH has established an independent R&D department with 15 professional engineers.
We have strict and systematic quality control for each process, from material, production to delivery. We use high-tech precision instruments to measure the accuracy and transmission speed of the machine. The main tests include track transmission accuracy level test, cutting head vertical test, bed parallel and vertical test, etc.
ZLTECH has one professional after sale team which can provide technical support to customers in time. Online training and door training are both available, welcome to visit us at any time. FAQ
1.If I do not know how to operate the machine, how you can help me ?
First, we have detail user manual and videos for your learning. Then we can provide training in our factory or your place. If you have any other questions, our engineers will help you online, via tel, skype or email.
2.How long can delivery the machine ?
For our standard model, the delivery time is 10-15 working days. For customzied model, it will need about 20-40 working days.
3.How about the shipping cost?
Sea transportation, we choose 20-foot container or 40-foot container according to the size you buy.
We have a shipping company that has cooperated for many years, which can help you save costs.
4.How about the payment?
T/T, 30% in advance and balance before shipping. We also accept Credit Card, Paypal, Western Union, LC, DP, DA.
