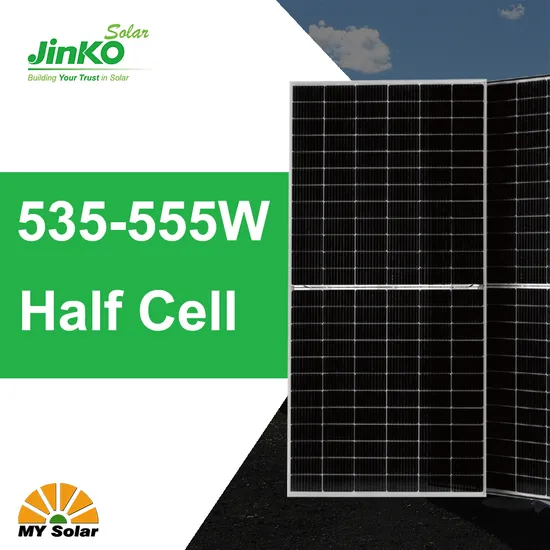

Jinko My Solar Mono Solar Panel 535W 540W 545W 550W 555W 48V Solar Module 400W 72hl4-V 535-555 Watt for Solar Energy System
| US$0.065-0.11 | 1 watts (MOQ) |
Basic Info.
Model NO.
JKM545M-72HL4-V
Number of Cells
144
Application
Industrial
Condition
New
Certification
ISO, CE, TUV
Material
Monocrystalline Silicon
Model No.
Jkm545m-72hl4
Efficiency
21.10%
No. of Cell
144 (6X24)
Connector
Mc4
HS
8541402000
Junction Box
IP67 Rated
Weight
28 Kg (61.73 Lbs)
Frame
Anodized Aluminium Alloy
Glass
3.2mm, Anti-Reflection Coating
Tpt Backsheet
White/Black Backsheet
Cable
TUV 1X4.0mm, (+) 290mm, (-) 145mm or Customized Le
OEM
Acceptable
Transport Package
Wooden Pallet & Carton
Specification
2278x1134x35mm (89.69x44.65x1.38 inch)
Trademark
Jinko
Origin
China
HS Code
854143000
Production Capacity
500MW/Year
Packaging & Delivery
Package Size
250.00cm * 14.00cm * 5.00cm
Package Gross Weight
40.000kg
Product Description
| SPECIFICATIONS | ||||||||||
| Module Type | JKM535M-72HL4 JKM535M-72HL4-V | JKM540M-72HL4 JKM540M-72HL4-V | JKM545M-72HL4 JKM545M-72HL4-V | JKM550M-72HL4 JKM550M-72HL4-V | JKM555M-72HL4 JKM555M-72HL4-V | |||||
| STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | |
| Maximum Power (Pmax) | 535 | 398 | 540 | 402 | 545 | 405 | 550 | 409 | 555 | 413 |
| Maximum Power Voltage(Vmp) | 40.63 | 37.91 | 40.7 | 38.08 | 40.8 | 38.25 | 40.9 | 38.42 | 40.99 | 38.59 |
| Maximum Power Current(Imp) | 13.17 | 10.5 | 13.27 | 10.55 | 13.36 | 10.6 | 13.45 | 10.65 | 13.54 | 10.7 |
| Open-circuit Voltage(Voc) | 49.34 | 46.57 | 49.42 | 46.65 | 49.52 | 46.74 | 49.62 | 46.84 | 49.72 | 46.93 |
| Short-circuit Current(Isc) | 13.79 | 11.14 | 13.85 | 11.19 | 13.94 | 11.26 | 14.03 | 11.33 | 14.12 | 11.4 |
| Module Efficiency STC(%) | 20.71% | 20.90% | 21.10% | 21.29% | 21.48% | |||||
| Operating Temperature(°C) | -40°C~+85°C | |||||||||
| Maximum System Voltage | 1000/1500VDC(IEC) | |||||||||
| Maximum Series Fuse Rating | 25A | |||||||||
| Power Tolerance | 0~+3% | |||||||||
| Temperature Coefficients of Pmax | -0.35%/°C | |||||||||
| Temperature Coefficients of Voc | -0.28%/°C | |||||||||
| Temperature Coefficients of Isc | 0.048%/°C | |||||||||
| Nominal Operating Cell Temperature(NOCT) | 45±2°C | |||||||||
MY SOLAR TECHNOLOGY CO., LTD.established in December 2010, is a member of MY Solar group, which is specializing in the desian, manufacture and sales of PV modules and correlative products.Our management team is experienced and professional. Our core products - PV modules, are rational designed, excellent in workmanship, and have a stable performance, power range covers 3Wp-400Wp, are widely used in photovoltaic power stations, BIPV & BAPV, satellite communications, geological monitoring andforest fire prevention, etc. Our products are exported to Europe, America, Asia- Pacific and Africa.MY Solar is a core supplier of many key large projects in China, and is also a supplier of photovoitaic modules and correlative products which is selected, trusted and recommended by many professional designing institutes.
Q:What's your payment terms?
A:T/T,L/C,Paypal,Western Union etc.
Q:What are the advantages of your company?
A:We are a factory, and we also cooperate with other brands,such as Longi,JA solar,Jinko,Trina,Canadian Solar,GCL,SUNTECH,Yingli etc., to provide customers with better prices and more choices.
Q:May I have a piece of sample to check the quality?
A:Welcome to place the testing order to check the quality or for testing.
Q:How about the delivery time?
A:15-20 days after receiving your payment.
The specific delivery time depends on the items and the order quantity.
Q:Where is the port of loading?
A:Shanghai,Ningbo.
Q:Can you do OEM?
A:Yes.
