1 Main Products introduction 1.1 The Principle of Mixer
The measuring principle is based on making visible the resistance the sample material opposes to
the rotating rotors. High-speed hot shearing provided by a pair of counter-rotating rotor in the mixer chamber made the material plasticizing from solid to melt.The corresponding torque moves a dynamo-meter out of its zero position .
In compliance with the existing standards and test specifications, a typical ' Rheogram ' (torque and temperature vs. time) is recorded for each sample material. We can analyse the structural changes of the material by the rheogram ,which shows the relationship between torque (viscosity) and temperature / time . The measured data can be displayed and stored numerically as a txt or excel file to further analysis during the measurement .
1.2 The Application of Torque Rheometer
With Hapro measuring mixers, you can simulate on a laboratory scale all processes like compounding, mixing, plasticity, heating and shear stability, extrusion ability etc. Hapro measuring mixers test the processing ability of thermoplastics, thermosets, elastomers, ceramic molding materials, pigments, and many other plastic and plastifiable substances.
Profit from the flexibility and high performance of the Hapro Mixer system for optimizing production conditions to most different materials and processing tasks .
• Quality control and testing of raw materials
• Product development and recipe optimization
• Investigation and optimization of processing conditions
• Measurement of the rheological properties of blends and compounds
• Measurement of cross-linking and curing process of thermoset resin
• Viscosity measurement
• Applications in the field of teaching and research.
1.3The Work Environment of Torque Rheometer
Working environment of Torque Rheometer is wide application scope .Specific conditions are shown in the table 1-1 .
Table 1-1 Work environment of Torque Rheometer

No.	Project	Requirements	Note
1	Environment temperature	5ºC~40ºC
2	Relative humidity	≤ 60%
3	Altitude	≤ 1000 m
4	Noise	≤ 85 dB
5	Ventilation	Well. No contain acid, alkali or other corrosion gas.	Do not apply to the explosive environment
6	Working area	No bad vibration
7	Lighting	good
8	Air supply	0.6~0.8 MPa

2 System Components and SpecificationsRM-200C Torque Rheometer System consist of a main unit and function units,generally assembled by block models.The Main unit connects the other units to constitute the Mixer, Single Screw Extrusion unit, Conical Twin-screw Extrusion unit, Parallel Twin-screw Extrusion unit, Rubber Extrusion unit and downstream auxiliary equipment ,e.g. Laboratory Film Blowing Machine, Laboratory Film Casting Machine, Laboratory Film Calender Machine,Wire coating machine, Two-Roll Mills, Platen Presses, Film Quality Inspection System, Pelletizer, Sample cutter etc. System can not only simulate actual process of polymer, evaluate machining performance, optimize process parameters, but also completing simulation experiment to match different die heads .
2.1 Main Unit Main unit adopts the servo system imported from German, The heart of the Torque Rehometer is the fully digital 5.0 kW motor which ensures full torque of 190/240/320 NM over the entire speed range of 0.1 r/ min to 150/200/250 r/min. The inverter drive provides for precise and constant speed for functional units. Further more, a torque measurement is integrated. All important control data( e.g. temperature, pressure, speed, torque ) can be read on the computer . The output torque which reflects the viscosity changes to characterize the melt rheological properties.
The Main unit connected with a function unit can measure flow and compounding behaviors, critical processing parameters of temperature, pressure, torque and viscosity of polymers in the laboratory-requiring only small sample volume. The instrument, which is designed to a excellent system with high measuring precision, handling flexibility and testing reproducibility, has been widely used in science research, quality control and process experiment.
Technical parameters :

Control Mode	Industry Bus	Torque measuring method	Cantilever
Mains connection	3×380V,50Hz +N +PE	Torque Range	0 ~ 190 or 240 or 320 Nm
Docking mode	Electromagnetic lock	Torque Accuracy	0.1% F.S
Fixing Mode	Movable	Static Measurement Accuracy of Temp	0.1ºC
Power of Motor	5.0 kW	Dynamic Measurement Accuracy of Temp	+0.5ºC
Motor Speed	3000 r/min	Melt pressure Range	0.1 ~ 100 Mpa
Reducer(Neugart)	1:12or 1:15 or 1:20	Melt pressure Accuracy	0.5% F.S
Speed Range	0.1 ~ 250 or 200 or 150 r/min	Speed Accuracy	0 .05% F.S
PC operating System	Window 10	Application Software	Hapro Control software
Weight	250 kg		Mixer report software
Dimension (L×W×H)	950×600×1200 mm		Extruder report software
			Viscosity software

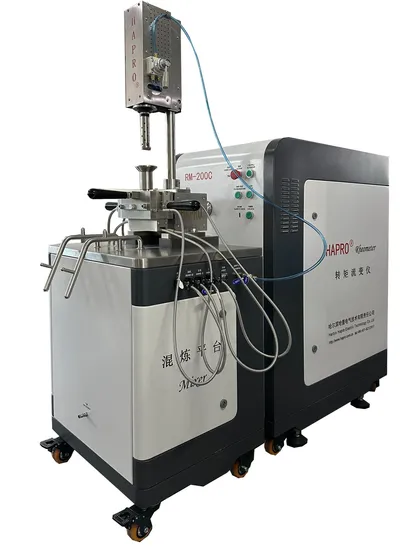

2.2 Mixer platformThe Hapro Torque Rheometer system serve for testing the rheological behavior properties and extrusion ability of polymers and for analysing and emulating production process in the laboratory . It is an ideal instrument and system in research and development as well as in practical application , for searching the material liquidity, plastifying, heating and shear stability,etc. industrial production.
Excellent reproducibility of the measured values, the easy handling, the low cost and the reliability make the Mixer best suited for production control as well as for research and development . With Hapro Mixer system, you can simulate on a laboratory scale all processes like compounding, mixing, plastifying, thermosetting material (cross-linking polyethylene cross-linking feature), solidity testing, heat stability testing, shearing sensibility testing, etc. that are relevant for production and processing of polymers and other plastic and plastifiable materials.
The mixer chamber consist of three sections which are independently temperature controlled. Counter-rotating rotors provide high strength mixing and shearing action. Customer can choose the different chamber volumes (e.g. 20ml/ 60ml /200ml /300ml). The different rotor types and loading ways to implement different applications. For teaching and demonstration, the visualization window can be configured. Technical parameters :

	Mixer-20		Mixer-60		Mixer-200		Mixer-300
Chamber volume	20ml		60ml		200ml		300ml
Mixer Material	304L or 630
Types of rotor	Roller,Banbury,Cam,Delta,Sigma (Roller standard ,others optional )
Rotor processing	After high precision polishing, the surface chromium plating
Speed ratio of rotors	3:2
Temp control system	RKC from Japan
Temperature sensor	J type thermocouple
Heating	Electrical Heating/3 zones, PID
Max. Temperature	350ºC
Loading	Manually+ Pneumatic
Max. rotor speed	150 or 200 or 250 r/min
Max. torque	80Nm	150Nm		250 Nm		250 Nm
Total power	1500 W	1700W		3600W		4800W
Weight	180 kg
Dimension(L×W×H)	650×600×1400 mm
