Crawler Multifunction Excavator Function on Sale
Basic Info.
Model NO.
SD25B
Type
Crawler Excavator
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Bucket
Shovel
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1m³
Size
Small-Scale
Certification
CE, ISO9001: 2000, EPA
Condition
New
Operating Weight
2.5ton
Rated Power
24.5kw
Max. Digging Height
3750mm
Max. Dumping Height
2250mm
Max. Digging Depth
2500mm
Max Digging Radius
4250mm
Engine
Changchai , Yanmar
Rate Speed
2.7km/H
Hydraulic Pump Brand
Futai
Hydraulic Valve Brand
Husco
Hydraulic Cylinder Brand
Liyuan
Bucket Width
540mm
Core Component Warranty Period
1 Year
Color
Can Customized
Unique Selling Point
High Operating Efficiency
Transport Package
Wooden Box Packing
Specification
4150*1350*2300mm
Trademark
ShanDing
Origin
Shandong
HS Code
84295212
Production Capacity
50000 Pieces / 1 Year
Product Description

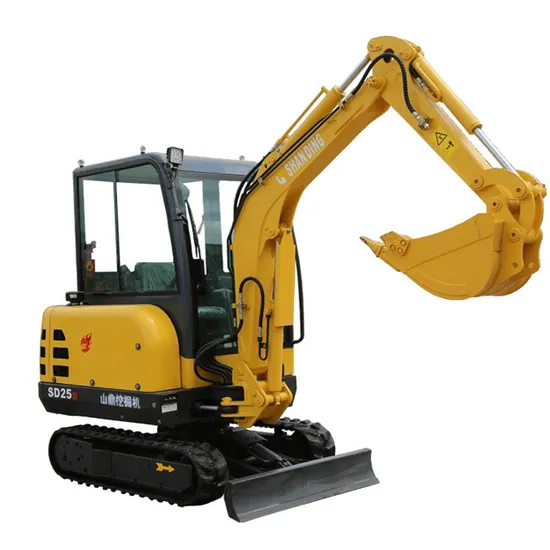

We are a real excavator factory, and we are always looking for an agent. One unit is available for sale. Please contact customer service for the lowest price. Product Description :SD25B is an upgraded version of SD17B. It has more than 30 years of research and development and market history. It can also be equipped with a closed operating room, optional Euro 5, EPA emission standard YANMAR engine, optional boom swing, and standard imported hydraulic system , Stable performance, high efficiency and durability. SD25B is one of our main models exported to the European market.
| Machine parameters | |
| Model | SD25B |
| Operating Weight | 2.5 ton |
| Bucket Capacity | 0.1m³ |
| Rated Power | 24.5kw ,19.6kw,15.2 kw |
| Max.Hydraulic System Pressure | 18mpa |
| Max. Grade ability | 30° |
| Max Walking Speed | 2.7km/h |
| Max Digging Force | 19kn |
| Platform Rotary Speed | 14 r/min |
| Boom swing function | yes |
| Dimensions | |
| Overall Length | 4150mm |
| Overall Width | 1350mm |
| Overall Height | 2300mm |
| Arm Length | 1100mm |
| Boom Length | 2000mm |
| Track Length | 1621mm |
| Track Width | 250mm |
| Platform Width | 1160mm |
| Platform Ground Clearance | 500mm |
| Bucket Width | 540mm |
| Working range | |
| Max. Digging Height | 3750mm |
| Max Digging Depth | 2500mm |
| Max. Digging Radius | 4250mm |
| Max Dumping Height | 2250mm |
| Platform turning radius | 1800mm |
| Max. Sinking Depth of Bulldozer | 185mm |
| Max. Lifting Depth of Bulldozer | 210mm |
| Machine configure | |
| Engine Model | Changchai , Yanmar |
| Main valve | Husco |
| Main Pump | Futai (3 pumps system) |
| Rotation Motor | Eaton |
| Walking Motor | Eaton |
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 7-20 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
