Acetaldehyde Potassium Sulfate Spray Dryer

Acetaldehyde Potassium Sulfate Spray Dryer

US$9,000.00-200,000.00 1 set (MOQ)

Basic Info.

Model NO.
LPG
Transport Package
Standard Wooden Case
Specification
LPG-5 to LPG-3000
Trademark
Yuzhou
Origin
China
HS Code
841939
Production Capacity
5-3000 Evaporation

Product Description

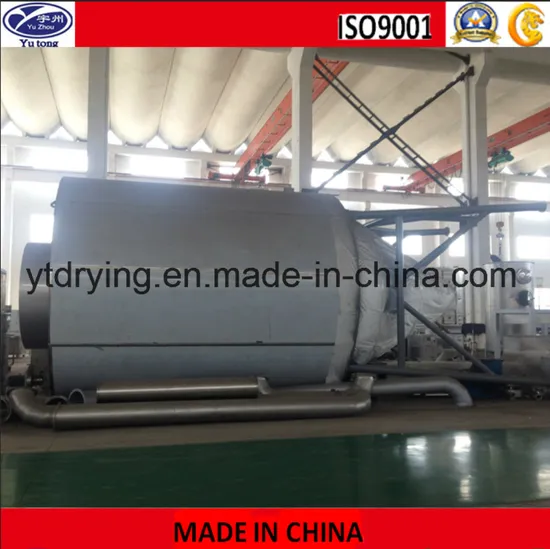

Acetaldehyde Potassium Sulfate Spray Dryer
Features
1.LPG Acetaldehyde Potassium Sulfate Spray Dryer with fast drying speed can constantly evaporate 95%-98% moisture. The drying time is about 5 seconds to 15 seconds.
2.This High Speed Acetaldehyde Potassium Sulfate Spray Dryer and Drying Machine has excellent uniformity, liquidity and solubility as well as high purity.
3.This High Speed Spray Drying Machinery of Acetaldehyde Potassium Sulfate has simple production process and easy operation. After drying, it does not need to grind and screen, which can reduce production procedure and enhance the purity.
Description
Centrifugal Spray Drier for Acetaldehyde Potassium Sulfate is a kind of dedicated equipment for drying emulsion, suspension, paste and solution. After filtering and heating, the air enters into the hot air distributor at the top of the Centrifugal Spray Drying Equipment for Acetaldehyde Potassium Sulfate, and the hot air will spirally and evenly goes into the drying chamber. The material liquid via high-speed centrifugal atomizer rotates into extremely thin vaporific liquid globule and parallelly flows with the hot air, and then the liquid will be dried into powdery products in a very short time (5-10 seconds). The waste gas after filtering will be expelled through the fan. For the wet organic solvent materials, the Acetaldehyde Potassium Sulfate dryer machine can be designed with closed cycle process. It can utilize cyclic nitrogen to dry the materials.
Process
Technical parameter
Item/Model LPG
5 25 50 100 150 200-2000
Inlet Temperature (ºC) ≤ 350
Outlet Temperature (ºC) 80 to 90
Maximum Moisture Evaporation (kg/h)* 5 25 50 100 150 200-2000
Drive type of Centrifugal Spray Nozzle Compressed air drive Mechanical drive
Rotating Speed 25000 22000 21500 18000 18000 15000
Diameter of Spray Disk (mm) 50 102 108 108 150 180-340
Heat Source Electricity Electricity Electricity+ steam, fuel oil, gas Electricity+ steam Electricity+ steam, fuel oil, gas Depending on users
Maximum Power of Electric Heating (kw) 8 31.5 60 81 99
Overall Dimensions (L × W × H) 1.8 × 0.93 × 2.2 3 × 2.7 × 4.26 3.7 × 3.2 × 5.1 4.6 × 4.2 × 6 5.5 × 4.5 × 7 According to the actual situation
Dry Powder Recovery (%) ≥ 95 ≥ 95 ≥ 95 ≥ 95 ≥ 95 ≥ 95

Yutong Aptitude:
Yutong Patent:
Jiangsu Yutong Drying Engineering Co., Ltd factory:
Package And Shinment:
Standard Wooden Cases
Pre-service
Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2.Make plans for choice according to the needs and special requirements of users in different sectors;
Sale service
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3.Provide full set of documents meet customer`s requirements.
After-sale service
Provide considerate services to minimize clients` worries.
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4. Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;
6.Provide technical support;
7.Establish long-term and friendly relationship.
Service commitment
1. Provide clients one-year warranty to make sure the machine work well;
2.We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;
Principle of work matters that should be known before order:
1. What is Particle liquid name and materials property, solid contents or water contents, viscosity, surface tension and PH value.
2. Powder material contents after the drying, permissible residual water contents, particle size, and permissible maxing temperature.
3. Energy that can be supplied: steam pressure supply capacity, electricity capacity, fuel coal, oil and air capacity?
4. Control requirement: how many celcius the inlet air temperature need to be controlled?
5. Powder collection requirement: whether or not the bag type collector should be mounted and what is the requirement of the environment for discharging the exhausted gas?
6. Other special requirements.
