Ms500 Handheld Voc Monitoring Gas Analyzer

Product Description

Product Description

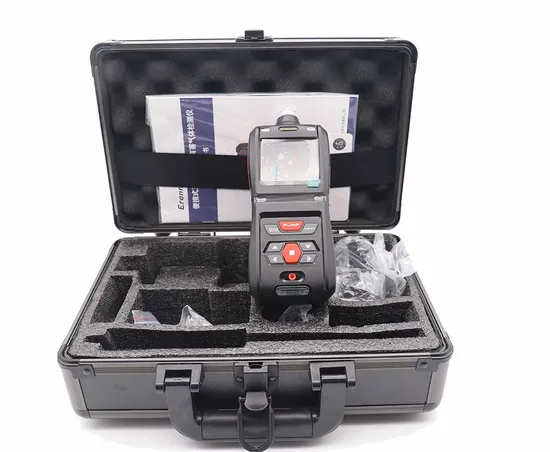

MS500 Portable VOC Detector gas analyzer measurement of environmental temperature and humidity, if the measurement exceeded the limit value, the alarm will sound. It adopted advanced electric circuit design, mature kernel algorithm processing, unique external appearance design, had achieved a number of patents about the software works, external appearance, and so on. It is possible to simultaneously detect 1 ~ 5 types of gases, and the units can be switched freely. The types for detection are more than 500 types. MS500 is unparalleled in its versatility, capability and overall value. It's adopted water-resistant line of portable gas detectors has transformed the market with its matchless array of features. Continuously monitoring and displaying concentrations of up to 5 gases, the compact and lightweight MS500 was designed and engineered with an extensive host of applications in mind.
Product Parameters

Gases to be detected	Arbitrary combination of 1 ~ 5 types of gases such as toxic gases, oxygen gas, carbon dioxide, inflammable and explosive gases, TVOC, and so on. Optional configuration: temperature and humidity measurements.
Application scenarios	All the cases which requires the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.
Detection range	0 ~ 1, 10, 100, 1000, 5000, 50000, 100000ppm, 200 mg/L, 100%LEL, 20%, 50%, 100%Vol, can be selected; and other ranges can be customized.
Resolution	0.01ppm or 0.001ppm (0 ~ 10 ppm);0.01ppm (0 ~ 100 ppm),0.1ppm (0 ~ 1000 ppm),1ppm (0 ~ 10000 ppm or more),0.01 mg/l (0 ~ 200 mg/l),0.1% LEL,0.01%LEL0.001% Vol
Detection principle	Electrochemical, catalytic combustion, infrared, thermal conductivity,PID photoionization, and so on. Depending on the type of gas, range, field environment and user demand.
Sensor service life	Electrochemical principle: 2 ~ 3 years; Oxygen gas: 2 years or 6 years can be selected; Infrared principle: 5 ~ 10 years; Catalytic combustion: 3 years; Thermal conductivity: 5 years; PID photoionization: 2 ~ 3 years.
Allowable error	2% F.S (other precision levels can be customized)
Sample gas temperature	-40 ºC ~ + 70 ºC, and the optional configuration of high-temperature sampling and cooling filter handle will be possible to detect the smoke gas at the high temprature.
Temperature and humidity measurement	Optional configuration: temperature at -40 ºC ~ + 70ºC, accuracy level at 0.5 ºC; humidity at 0 ~ 100% RH, precision level at 3 % RH
Power supply	3.6VDC, 6000mA high capacity rechargeable polymer battery
Communication interface	USB (charging and communication)
Data storage	Standard configuration is the data storage capacity for 100, 000 entries; SD card storage function is optional configuration
Protection level	IP66
Explosion-proof type	Intrinsically safe type
Weight	350g
Standard accessories	Manual, qualification certificate, warranty card, USB charger (including the data cable), high-grade aluminum instrument case, belt clip, humidity dust filter
Optional items	Temperature and humidity measurement function, 1.2 m retractable sampling handle (1-10 meter hose, and the standard length is 1meter), 0.4 meter stainless steel sampling handle (with dust filter, not retractable), high temperature sampling and cooling filter handle, high temperature humidity pretreatment system, multiple humidity dust filter, hanging rope, CD-ROM (upper level computer communication software), external mini wireless infrared printer.

Company Profile
Beijing Zetron Technology Co., Ltd, formerly Beijing Senre Technology Co., Ltd was founded in 2006, located in Beijing with convenient transportation access. We have almost 16 years experience in the retail, import and export of gas detection and monitoring equipment.
This experience has enabled us to form an organisation based on knowledge and expertise and have allowed us to supply a range of gas detectors and monitors that are tailored to our customers needs and budgets. Our aim is to provide the best values products with high quality and style.To provide the new affordable and complete service for gas detection needs for the industrial, engineering and shipping market and our friendly staff are here to help with advice and prices. So far, we have customers/buyers from over 20 countries/regions like Bulgaria, Brazil, Canada, China, Colombia, Germany, Iraq, Japan, Philippines, Russian Federation, Singapore, Taiwan, Thailand, Uruguay, United States, Ukraine, Vietnam, etc.
The list of countries still expanding.....!! We are committed to become the International Well Know Provider to provide similar or better alternative, original merchandises & service to meet customers' needs, requirements and solutions. Every customer is important to us and we strive to satisfy all our Customers needs and expectations. Local and International Distributors, Dealers and Resellers are Welcomed! Please contact us at the homepage.
