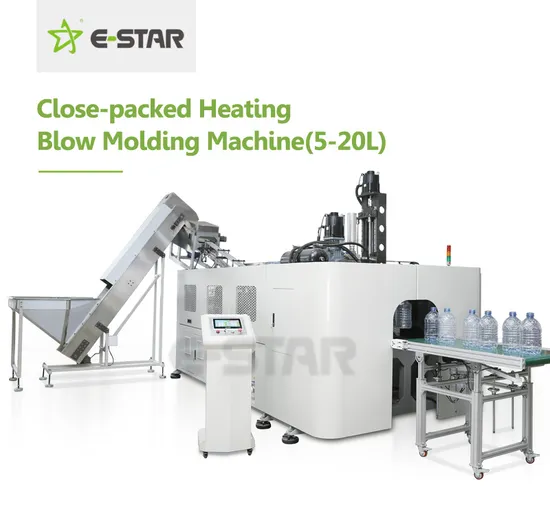

3L 5L 6L 2 Cavity Pet Bottle Making Machine Pet Injection Blow Molding Machine

Product Description

Product Description
All electric high speed blow molding machine (E-LC Series)
Machine feature:
1.The machine use continuous rotation system with multiple safety protection devices to ensure the high speed preform feeding
2.Horizontal rotation transfer system make the construction and maintance more easy, reduce cost of spare part change
3.The heating pitch between the preforms is small,effectively using the heating space of the lamp tube,and improving the heating efficiency and energy-saving effect of the preforms
4.The water runs directly through the heating channel with air cooling system to protect preform neck from deformation
5.Optimize oven air draft and preform surface coolina.Reversible heatina box make it more easv to change lamp
6.Mould closing adopts CAM linkage.no chain plate pin shaft make it small volume and long lift
7.Servo motor for moving the preform into moudl ensure fast speed and accurate positioning
8.Servo moto is used to drive the drawina and bowing station.equipped with high speed precision blowina valve set to achieve high production requirements
9.Stainless steel pipe make the air blowing more clean without pollution10. High pressure recycle recycle system reduce power consumption
11.Multiple direction positioned for the auto loader make it more flexibly for installation
12.The machine is desighed to be compact in size.effectively reducing floor space. Product Parameters

Item	UNIT	E-LC4/0.6L	E-LC4/2L	E-LC6/0.6L	E-LC6/2L	E-LC8/0.6L	E-LC10/0.6L	E-LC2/5L	E-LC4/5L
Max.Volume	L	0.6	2.0	0.6	2.0	0.6	0.6	5.0	5.0
Shift Servo		√	√	√	√	√	√	√	√
Stretch Servo		√	√	√	√	√	√	√	√
Clamping Servo		√	√	√	√	√	√	√	√
Separate Preform servo		√	√	√	√	√	√	√	√
Transport		√	√	√	√	√	√	*	√
Theoretical capacity	BPH	9000	8000	13000	11000	16000	20000	2000	4000
Cavity Number	CAVITY	4	4	6	6	8	10	2	4
Heating Pitch	MM	38.1	38.1	38.1	38.1	38.1	38.1	63.5	63.5
Heating Unit Group	SET	2	2	3	3	4	6	4	8
Infrared Lamp	PCS	14	16	21	24	28	42	44	88
Number of Bottle Holder	PCS	106	106	148	148	166	188	91	162
Preform Baked Count	TIMES	10	10	10	10	10	10	24	26
Max.Neck Dia	MM	30	30	30	30	30	30	45	45
Max.Bottle Diameter	MM	72	112	72	112	72	72	210	210
Max.Bottle Height	MM	260	320	260	320	260	260	350	350
Max.Preform Height	MM	120	160	120	160	120	120	180	180
Action Air Consumption	M³/MIN	2	2	3	3	4	4	3	4
Pressure of Action	Mpa	0.8-0.85	0.8-0.85	0.8-0.85	0.8-0.85	0.8-0.85	0.8-0.85	0.8-0.85	0.8-0.85
Blowing Air Consumption	M³/MIN	8	8	10	10	12	16	10	16
Pressure of Blowing	Mpa	2.8-3.2	2.8-3.2	2.8-3.2	2.8-3.2	2.8-3.2	2.8-3.2	2.8-3.2	2.8-3.2
Chiller Specification	HP	8	8	10	10	10	16	10	16
Machine Power	KW	<20	<28	<36	<45	<52	<60	<28	<50
Installed Power	KW	160	170	200	220	240	300	180	320
Size	M	3.5*1.7*2.1	3.8*1.8*2.1	4.3*1.7*2.1	5.4*2.1*1.9	5.4*2.1*2.1	6.2*2.1*2.1	3.7*2.25*2.15	8.4*2.2*2.15
Weight	KG	4500	5000	6000	6500	7500	8200	6000	130000
The theortical output is based on 500ml l ottle shape,the final production capacity is based on the preform,bottle design and volume.
The high pressure air consumption is based on the 500ml bottle,the final con!
Standard configuration:√ Non-configurable: *

Preform loading and transfer system:
Mold Clamping:
Stretching system:
Heating system:
Pitch system:
Machine configuration list:

Name	Country	Brand
Inductive Sensor	Japan	Omron
Magnetic Sensor	Taiwan	KITA
AC contactor	France	Electric SA
Switching power supply	Taiwan	Delta
Acting valve	Japan	SMC
Blowing valve	Taiwan	Airtac
Cylinder	Japan	SMC
High pressure filter	Japan	SMC
High pressure pressure reducing valve	Japan	SMC
Silencer	Japan	SMC
Clamping rail	Taiwan	PHI
PLC	China	Xinje
Touch screen	China	Xinje
Servo motor	China	Xinje
Reducer	China	Xinje

Company Profile
Taizhou Easy Star Machinery Co.,Ltd. is a professional manufacturer of blow molding machines,preforms and plastic molds in China. We can provide a full range of services, whether it is molds, production machines, complete production lines, E-star can give you the best solution.
E-star's main products are various types of blowing machines. Plastic molds and other series of products. The products have the advantages of high degree of automation and stable performance. And are well received by domestic and foreign customers. Among them. The full-electric blow molding machine has reached the international leading level, and the products are exported to Europe, America, the Middle East, Southeast Asia and other places. Even in harsh climates(cold or tropical),E-star blow molding machines can operate stably. We have pre-sales and after-sales service teams, so your machine can get the best guarantee.
With more than 20 years of development experience and a highly fexible production development team, we can discuss and customize requirements for each case to create a financial tool that meets your needs. Whether it is used in Beverages,Water, Edible oil,Daily necessities, Cosmetics,etc.,
E-star's blow molding machines can help you complete the production of PET bottles of various capacities.
FAQ
Q:Where is your factory located?
A:Our factory,near Shanghai, located in Taizhou,China
Q:What is your trade term?
A:Normally FOB NINGBO, if customer country requires, also can accept L/C at sight.
Q:What is your payment term?
A:30% down payment against order confirmation, 70% balance payment prior shipment.
Q:Have blow machine 100% assembled well in stock?
A:No. All blow machine will be assembly produced according to your order.
Q:What is your delivery time?
A:Usually in 45-60days, depends on your projects.
Q:What about installing in customer factory?
A:After machine arrived at your factory, please prepare water, electric,air and preform, then we will arrange engineer to install machine and train your workers, the longest time to free install shall be in one week, you should afford engineer air tickets, food, hotel,transport.
Q:Guarantee time?
A:One and a half year guarantee, not man-made.
